Controller & Software|SLM 3D Metal Printing Machine

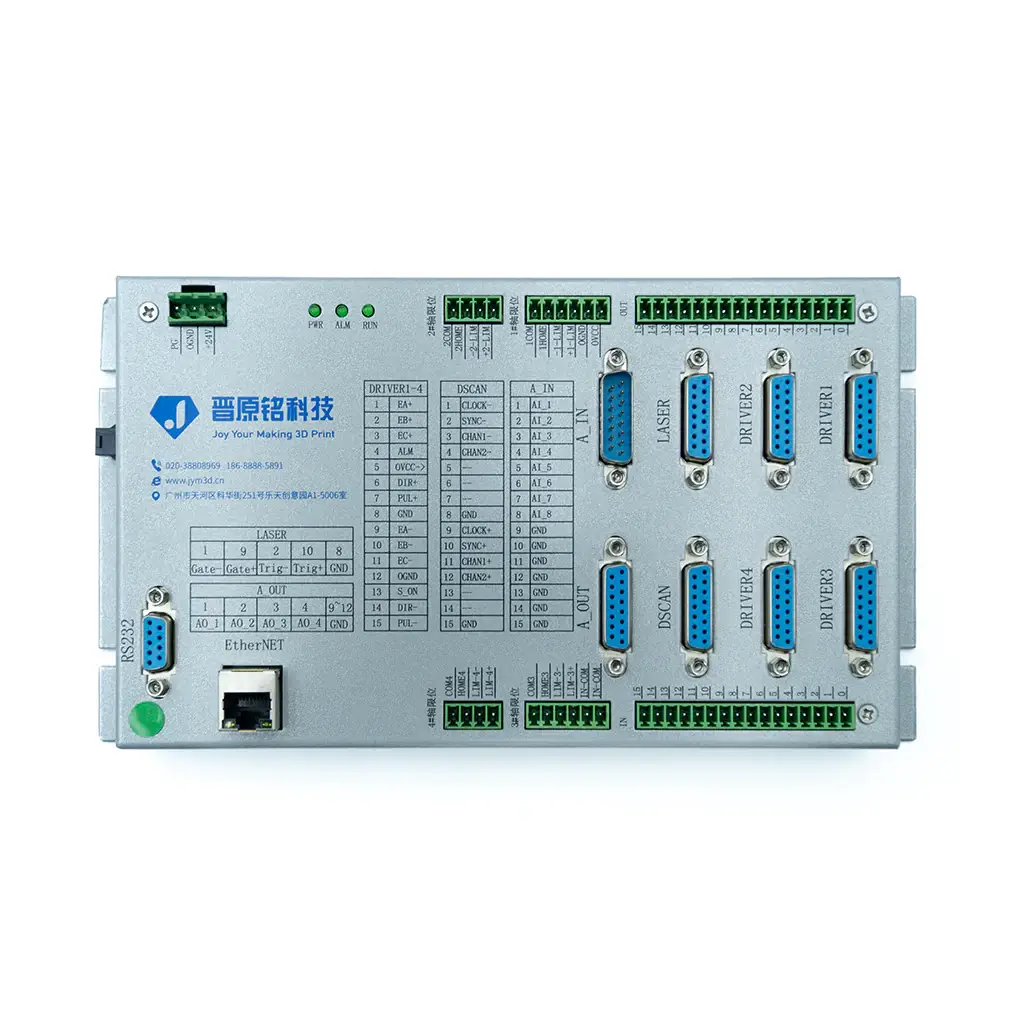

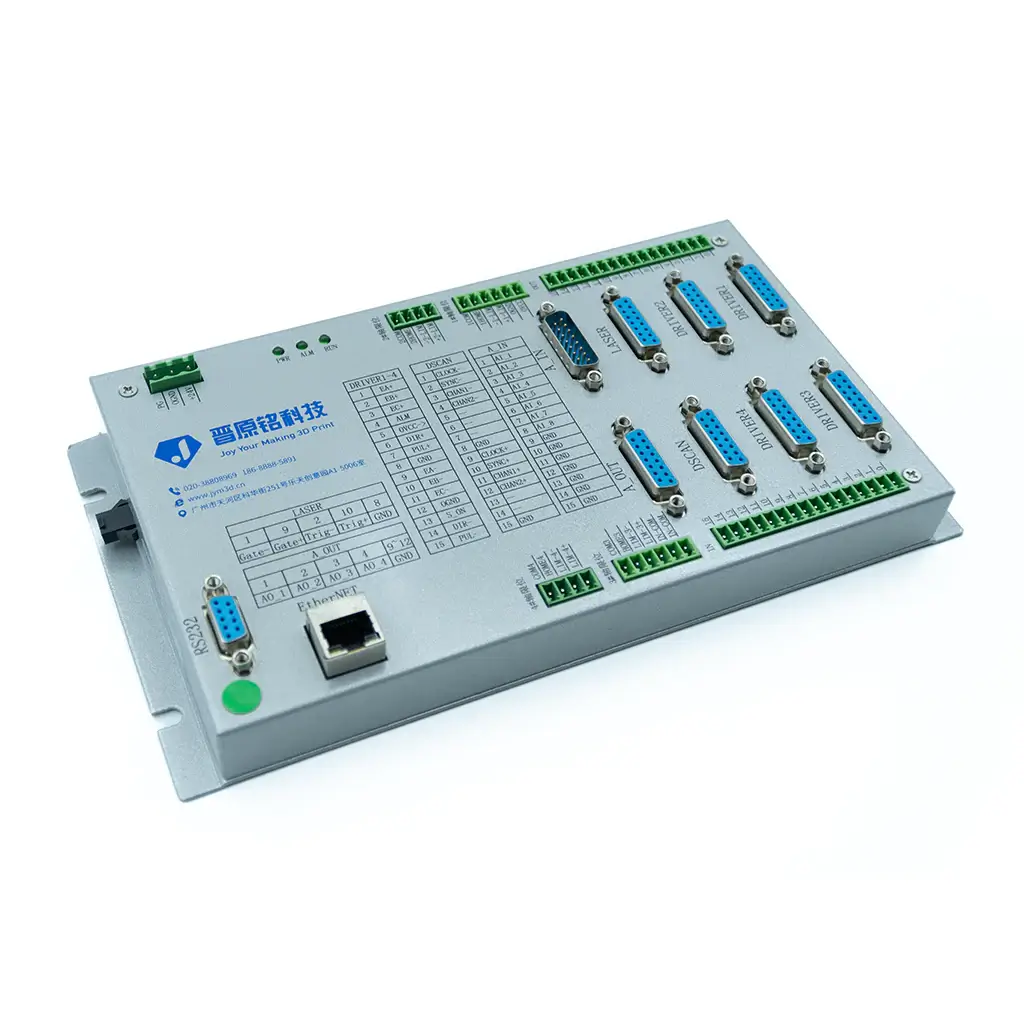

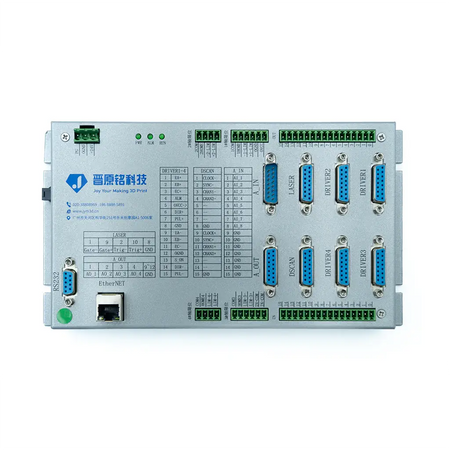

The QLS-4213DPRT is a high-end galvo & motion platform control card, independently developed for multi-axis motion platforms, galvos, and laser processing applications. It significantly enhances processing efficiency in 3D printing, PCB/FPC manufacturing, fingerprint recognition chip cutting, camera module precision cutting, large-area PCB marking, wafer marking, and more.

Key Features

Dual-Core ARM CPU for Ultra-Fast Computation – Equipped with a high-performance dual-core ARM processor, ensuring high-speed and high-precision digital control with an extremely short servo cycle for demanding applications.
Large Memory Capacity for High Data Throughput – Capable of handling large data loads efficiently, making it ideal for galvo control systems requiring extensive data processing.
Gigabit Ethernet Connectivity, Driver-Free Operation – Supports 100/1000M Ethernet communication without the need for additional drivers. The control system operates independently, preventing disruptions from industrial PC failures and ensuring greater system stability.
Compatible with XY2-100 Data Transmission Protocol – Uses a 16-bit resolution digital signal for seamless communication with galvo scanning systems, enabling synchronized laser and scanning output for high-precision, repeatable laser processing.

Download wiring diagram

Download manual

Common problems and solutions

1.All indicator lights are not on
Firstly, use a multimeter to measure the 24V plug on the board and confirm that there is a 24V voltage present; After confirmation, if the PWR power indicator light still does not light up, it is possible that the fuse tube on the board has been burned. Please contact our after-sales engineer to open the cover and replace it under their guidance or authorization.

2.The computer cannot connect to the board
Please confirm that the network cable is correctly connected to the EtherNET port of the board and the computer network port. Please connect it correctly.
Please confirm that the computer IP address is set correctly. The general recommended settings are: IP address: 192.6.6.20.Subnet mask: 255.255.255.0, default gateway: not selected.
Confirm again that the PWR light on the board is constantly on, the ALM light is not on, and the RUN light is flashing; If PWR does not light up, please refer to:
Article 1 Handling; If the ALM light remains on, there is a malfunction. Please contact our after-sales engineer for assistance; If the RUN light does not flash, please wait for about 20 seconds before observing. If it still does not flash, please contact our after-sales engineer for assistance.
After confirming that all the above statuses are correct, but still unable to connect, please use the ping command on your computer to test whether network communication is normal: click on Start ->Search for programs and files, enter cmd, enter ->enter ping 192.6.6.6, enter.

Packing weight:1.18lb;Packing size:246*132*48mm
