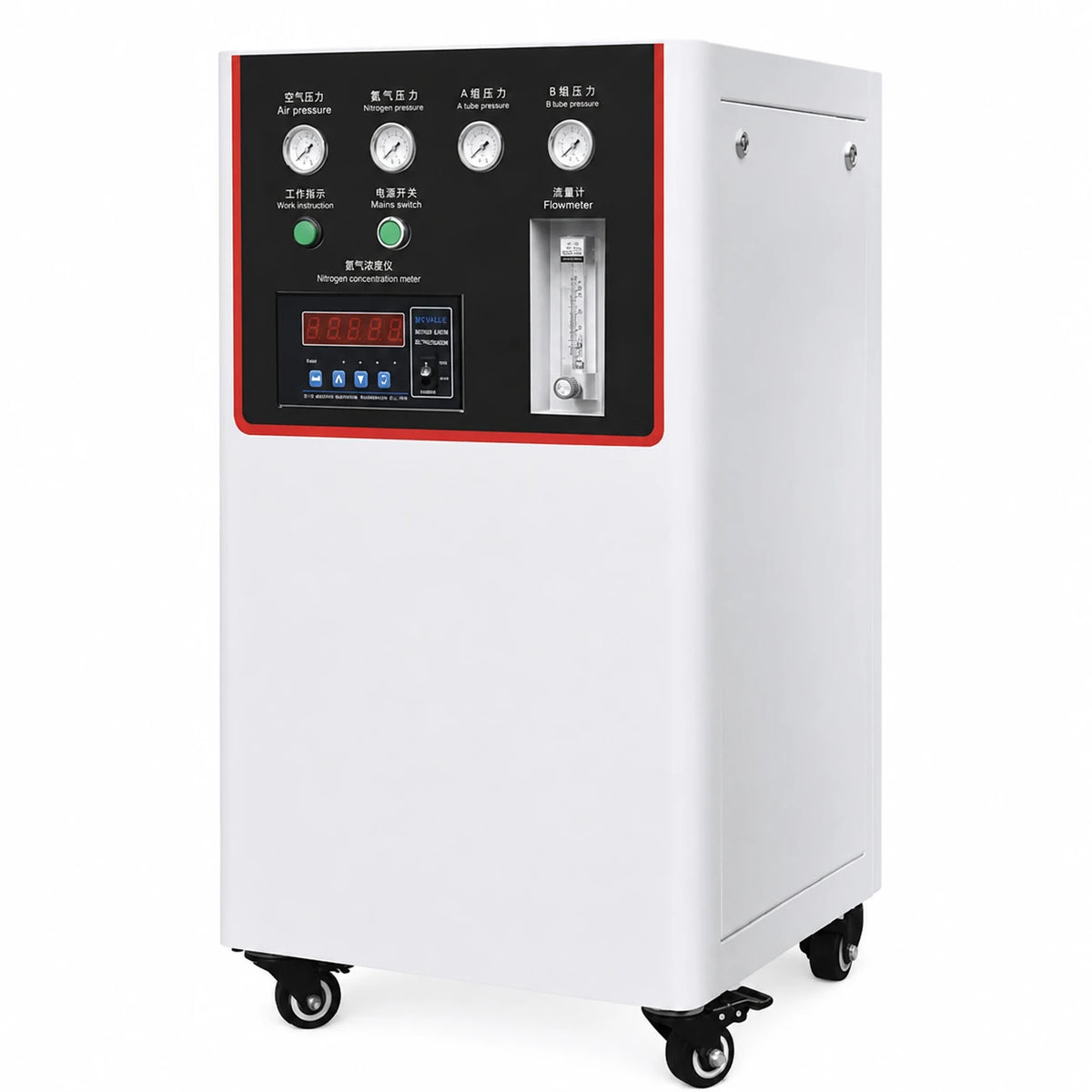

ZHUOHENG Professional Laser Welding Nitrogen Machine | ZHN-02
The ZHUOHENG ZHN-02 nitrogen generator provides an on-demand nitrogen supply for laser welding and laser cleaning applications. Its 40 NL/min flow rate supports one-to-two operation, allowing it to supply up to two compatible machines.
How it works: The ZHN-02 must be used with an air compressor. The air compressor supplies compressed air, and the nitrogen generator separates and purifies that compressed air to produce high-purity nitrogen for the connected equipment.
Nitrogen storage: The nitrogen generator produces nitrogen on demand but cannot store it. If stored nitrogen is required, a separate standard gas storage tank rated for a working pressure of 0.8 MPa (8 bar) is required.
With a typical nitrogen cylinder costing approximately $75 and this nitrogen generator priced at $1,164, the equipment purchase price is equivalent to about 15.5 cylinders. In practical whole-cylinder terms, the initial equipment cost can be offset after replacing approximately 16 cylinders. This estimate compares purchase prices only and does not include electricity, compressed-air equipment, dryer, maintenance, delivery, or local cylinder-price differences.
Application notice: This nitrogen generator is designed for laser welding and laser cleaning applications only. It is not suitable for laser cutting.
In welding, nitrogen's primary role is to remove oxygen, prevent re-oxidation, and improve weldability. Achieving high-quality welds requires both suitable solder and flux, with the latter cleaning oxides and enabling proper wetting. As a result, nitrogen is a key reactive gas in laser welding.
Best For
- Metal fabrication, repair, and production welding projects that need a fiber laser welding workflow.
- Buyers comparing laser source, chiller, welding head, wire feeder, and consumable requirements before ordering.
- Workshops that need support for matching the machine configuration to material, thickness, and site power.
Key Features
- Cost savings: A nitrogen generator can significantly reduce the cost of nitrogen compared to purchasing compressed gas cylinders.
- High purity: Nitrogen generators produce high purity nitrogen for a wide range of applications.
- Long service life: Nitrogen generators have a long service life and require minimal maintenance, making them a reliable and cost-effective nitrogen supply solution.
- Convenient: With a nitrogen generator, you can generate nitrogen whenever you need it, without having to wait for delivery or refilling cylinders.
- Customizable: Nitrogen generators can be customized to meet the specific needs of different industries and applications.
Compatibility
- ZHN-02: one-to-two configuration for supplying up to two laser welding machines.
- Confirm the required nitrogen flow, purity, interface, operating pressure, site power, and application conditions before purchase.
Specifications
ZHN-02 Technical Specifications
| Specification | ZHN-02 |
|---|---|
| Machine Configuration | One-to-two |
| Nitrogen Flow Rate | 40 NL/min |
| Nitrogen Purity | 95%–99.999% |
| Intake Pressure | 0.6–0.8 MPa |
| Nitrogen Pressure | 0.5–0.8 MPa |
| Air-to-Nitrogen Ratio | 5.6:1 |
| Power | 60 W |
| Supply Voltage | AC100–250 V |
| Frequency | 50–60 Hz |
| Rated Intake | 0.21 Nm³/min |
| Equipment Weight | 92 kg |
| Equipment Size (L × W × H) | 500 × 550 × 1070 mm |
| Equipment Weight (in Wooden Crate) | 135.5kg |
| Equipment Size (L × W × H in Wooden Crate) | 710 × 610 × 1250 mm |
Standard Accessories
| Name | Quantity | Remark |
|---|---|---|
| Key | 1pc | One is hung on the power cord the other is placed inside the chassis |
| 6mm Control value | 1pc | |
| 8mm to 6mm Reducer | 1pc | |
| Pneumatic Quick Connector | 1pc | Already assembled |
| 3m 8mm trachea | 1pc | |
| 3m 6mm trachea | 1pc |
Downloads
Before Ordering
Special Note: The ZHN-02 can supply up to two compatible welding or cleaning machines. A refrigerated air dryer and air compressor are required and must be provided separately.

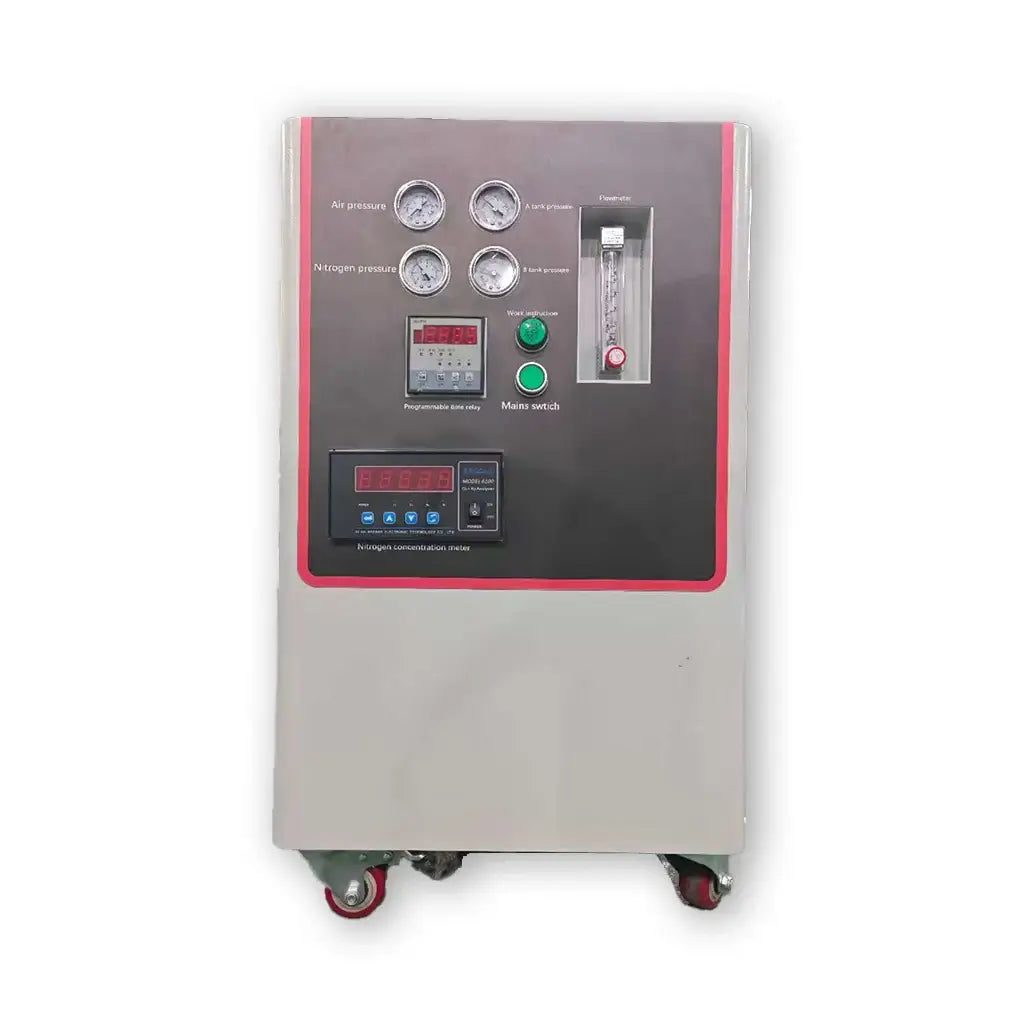

Pressure gauges for tower A and tower B: can check the pressure values in the A and B: carbon molecular sieve tanks in real time.Under normal circumstances, only one tank of tower A or tower Bis in working state, and the other is in pressure relief or low pressure state.
Improved safety: Nitrogen generators eliminate the need to handle high-pressure gas cylinders, which can reduce the risk of accidents.
FAQ
What should I confirm before ordering the ZHN-02 nitrogen generator?
Confirm how many welding machines will be supplied, as well as the required nitrogen flow, purity, interface, voltage, air supply, operating pressure, and safety requirements for your project.
How many machines can the ZHN-02 supply?
The ZHN-02 provides a 40 NL/min nitrogen flow rate and supports one-to-two operation for up to two compatible welding or cleaning machines.
Is the ZHUOHENG ZHN-02 suitable for every laser welding project?
No. Final suitability depends on the machine configuration, material, process target, and site conditions. Use the specifications and compatibility notes as a pre-check, then confirm uncertain details before purchase.
Can I request a manual or technical document?
If a manual or datasheet is not listed on the page, contact ZHUOHENG with the product model and intended application before ordering.
