3000W DIY Core Kit for Fiber Laser Cutting Machine

Overview

3000W DIY Core Kit

A matched 3000W hardware-and-document package for experienced DIY hobbyists, skilled builders and technical teams with practical electrical wiring and mechanical assembly experience. Core is for customers who can read the approved diagrams, plan their electrical mounting and local machine wiring, assemble the loose electrical components, and complete installation and initial debugging. Select the system and servo configuration, laser-source brand and S&A chiller frequency to see the current Kit component price. Sky Fire confirms the exact models, interfaces and delivery scope in the order-specific Kit BOM.

Electrical delivery: loose components only. The Core Kit electrical group is supplied as packed, unmounted electrical components and wiring materials. Its price covers materials only, not electrical mounting plates/backplates, component mounting, assembly or wiring service. It is not a prewired electrical panel.

Electrical group pricing: The Core loose-parts electrical group is $634: the $1,284 assembled/wired electrical group less five working days of assembly/wiring labor at $130 per day ($650 total). Core excludes mounting plates/backplates and assembly/wiring service. The $1,284 figure refers to the Ready electrical group only, not a complete Ready Kit; $650 is not the total Core-to-Ready upgrade price.

Current Kit pricing: the selected option shows the current launch price for the hardware and Core documents listed below. Packaging, international freight and applicable duties/taxes are separate. The Kit can be configured and added to your cart, but international delivery requires a manual quotation before payment; automatic shipping checkout is not enabled. Contact Sky Fire to confirm your configuration, delivery address and total payable amount.

Shop your way: Shop individual components · Compare Kit levels · Explore local manufacturing support.

Best For

• Experienced DIY hobbyists and skilled builders with hands-on electrical experience who want to assemble and wire their own fiber laser machine.
• Technical teams with mechanical and electrical integration capability that can source or fabricate the machine structure, read model-matched wiring diagrams, mount components, wire, configure and troubleshoot the system.
• Customers choosing hands-on integration over factory prewiring. Core supplies loose electrical parts and essential reference documents, not a prewired panel or a beginner-level installation-video package. Local electrical work requires appropriately qualified personnel.

Choose the right Kit level: Core is for electrically experienced DIY builders who will do the component mounting and wiring themselves. DIY Ready Kit is intended primarily for integrators, small machine builders and companies planning repeatable batch assembly and resale: Sky Fire assembles and wires the electrical components on mounting panel(s), and plans to provide more detailed installation documentation and videos to reduce repeated work. Ready is still in preparation; panel count, deliverables, availability and pricing require separate confirmation. Ready still requires a competent technical team for local machine connections, configuration, safety checks and commissioning; it does not certify the finished machine for resale. Local Manufacturing Kit goes further into local bed, sheet-metal and machined-part production, equipment, processes and production-line planning under a separate project scope.

Key Features

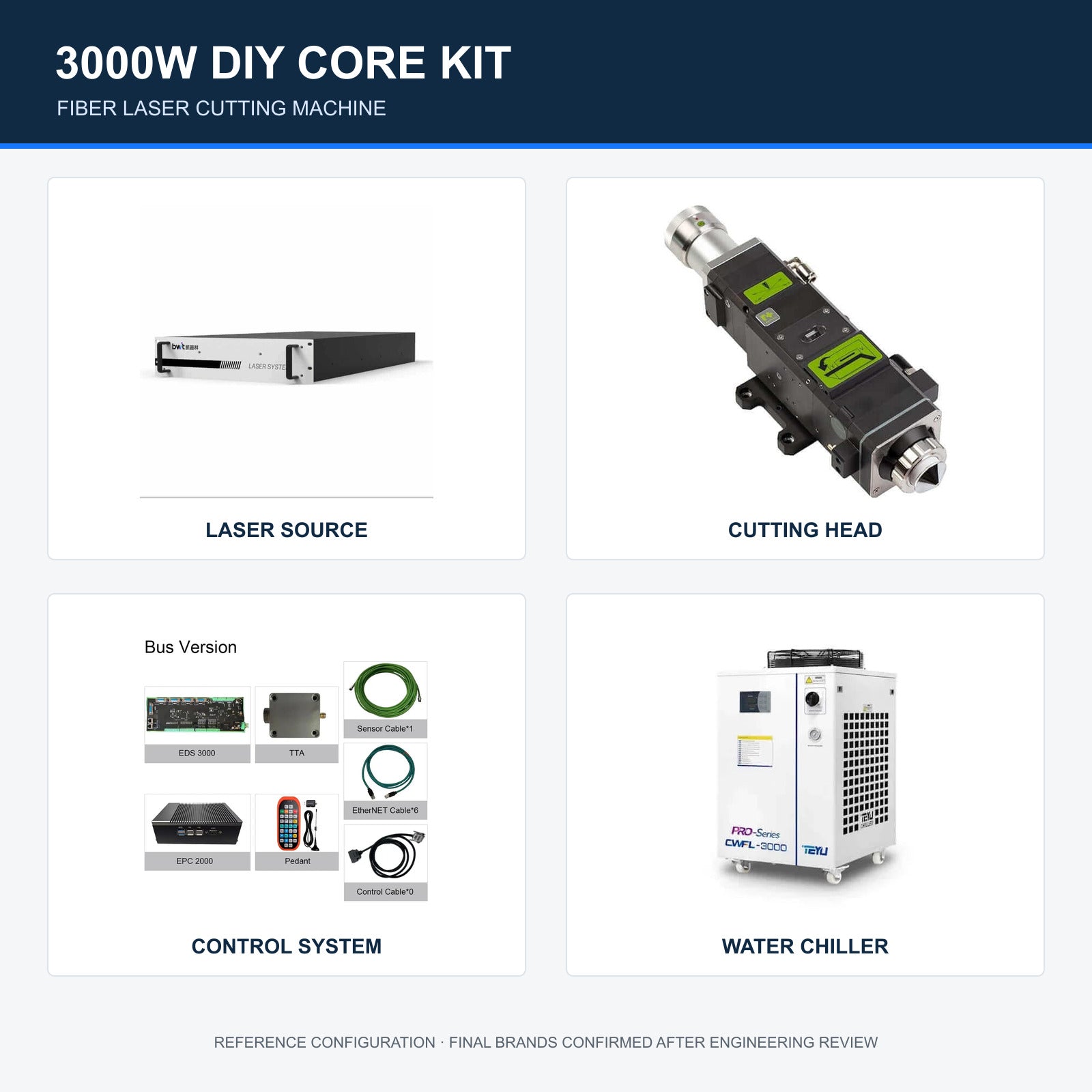

• Matched hardware: one 3000W laser source, cutting head, controller and cutting software, water chiller, four motor-and-drive sets, three TECHMECH reducers, one 150 mm Z-axis slide, transmission and protection parts, packed loose electrical components including the Z-axis servo cables and one 40A servo filter, gas and lubrication hardware, fasteners and supporting materials. Each supplied cable is counted once in its confirmed group. The quotation also identifies the matched cutting-head consumables package without charging starter spares twice.
• Software and engineering files: matched control software, a free pre-order Configuration Summary, the confirmed Kit BOM and packing checklist, plus the Core technical-document bundle listed below. Core documents include the basic circuit diagram, terminal and I/O table, basic installation procedure and common-error guidance.
• Optional equipment and services: X/Y linear-guide slider blocks, a voltage stabilizer or variable-frequency power supply, blower/smoke purifier, digital pressure gauge, non-standard gas fittings and additional commissioning services can be quoted separately when required by the site or application.

Core boundary: An assembled Gas Board is standard in both Core and Ready; its assembly is not a Ready upgrade. Ready is planned to add factory-assembled and prewired electrical mounting panel(s), more detailed installation documentation and videos, QC records, an initial parameter package, a safety interlock package and sequenced installation packing. These Ready-level deliverables are not included in Core; the released Ready configuration will define the exact scope. Applicable gas-system documents must match the confirmed hardware and revision.

Compatibility

Configuration Options

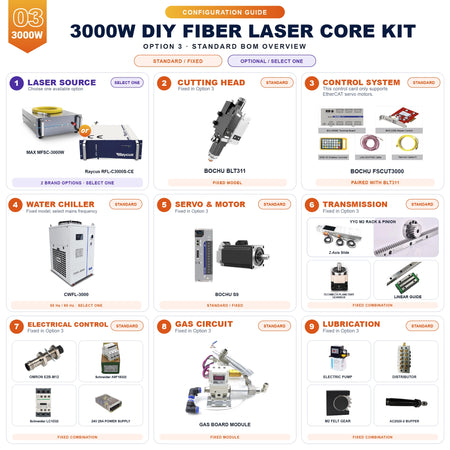

The released 3000W reference BOMs define the three paths below. Each requires model-matched mechanical, electrical, communication and software review; the documents are not approval to combine parts across configurations.

BM111 custom option: the current BM111 + XC3000PLUS catalog package specifies HCFA motor matching. Confirm the exact head/focusing-drive package and its compatibility with the axis servo system before ordering; it is not an interchangeable substitute for BM110.

• Laser source: one MAX MFSC-3000X or Raycus RFL-C3000S-CE. The current Kit BOM and MAX catalog use MFSC-3000X. Earlier versions of this Kit listing used MFSC-3000C for the same supplied MAX model, as confirmed by Sky Fire. This naming clarification applies to this 3000W Kit only; the MAX catalog reference price remains $3,842. The Raycus reference is $4,075. The final BOM and nameplate record the actual designation, input supply, output fiber and connector.
• Water chiller: one S&A CWFL-3000W. Catalog 50Hz and 60Hz versions have different prices; the input voltage, frequency, cooling capacity, flow and connections must match the selected source, head and site supply.
• Servo reference: four motor-and-drive sets: two X-axis sets, one Y-axis set and one Z-axis set, following the current Kit axis convention. A/B reference three 1.3 kW planar motors and one 0.4 kW braked Z motor; C references one 1.1 kW and two 1.7 kW planar motors plus one 0.4 kW braked Z motor. The BOM lists three TECHMECH TD090-L1-22-110-145-M8-60.5-16 reducers. The approved machine layout confirms axis mapping, flange/shaft interfaces, ratios and cable lengths. The single 40A filter belongs to the electrical-control group, not an extra servo charge. The Z-axis motor and drive belong to the servo group; its cables belong to the electrical-control group and must not be charged again in the servo price.
• Other brands: BWT or JPT 3000W sources and a Tongfei chiller may be requested as custom selections. They are outside these A/B/C reference BOMs and require separate compatibility and price confirmation.

Not Included / Customer Provides

The standard hardware-and-document scope excludes the machine bed, gantry and other locally manufactured mechanical structure, enclosure, dust-extraction equipment, air compressor, oxygen/nitrogen supply, compliant site power supply, electrical mounting plates/backplates, electrical component mounting and assembly/wiring service, local electrical work, workshop preparation, lifting/unloading equipment, onsite installation and local certification/compliance work. Packaging/pre-shipment handling and international freight are quoted separately. X/Y linear-guide slider blocks are not included in the standard Kit or its price. They are optional and quoted separately after engineering confirms the guide model, quantity, mounting interfaces and machine-bed design.

Duties and taxes: these are separate from the Kit hardware price and are included only when the confirmed shipping quotation explicitly includes them.

Customer responsibility: manufacture or source the machine structure, prepare the site and utilities, provide the electrical mounting plates/backplates and complete local component mounting, wiring and mechanical/electrical installation, and meet applicable local safety and electrical requirements. Sky Fire reviews the supplied Kit configuration, but cannot approve an unreviewed customer-designed machine as a complete system.

Custom Machine Size, Motion Design and Kit Changes

A non-standard working area, ballscrew-driven layout or request to remove supplied components is handled through a custom engineering quotation.

• Reference dimensions are not working travel: the current BOM lists two 1920 mm X-axis guides and two 4000 mm Y-axis guides, with M2 racks in 1000 mm and 500 mm sections. These are reference-model component lengths, not a promise of a particular cutting area. Final rail, rack, dust-cover and cable-carrier quantities and dimensions follow the approved machine layout. Optional X/Y slider blocks are selected and quoted separately to match the approved guides and machine-bed mounting design.
• Custom travel and cut lengths: the confirmed BOM and packing checklist record quantities, ordered lengths and final cut lengths after X/Y/Z travel and mounting positions are approved. Rails must not be cut or split solely to fit shipping limits without engineering approval.
• Four-axis layout: four motor-and-drive sets, with two for X, one for Y and one for Z. Three reducers serve the planar axes. Some reference drawings use Y1/Y2 for the dual-drive pair; reconcile these drawing labels with the approved machine-axis map before wiring or configuring motion. They do not indicate an additional rotary axis.
• Ballscrew-driven axes: provide screw lead, moving mass and payload, target speed and acceleration, shaft and coupling dimensions and mounting layout. Servo suitability cannot be confirmed from the motor brand or rated power alone.
• Delete requests and credits: removing transmission parts, a water chiller or another hardware group changes the package. Any credit is itemized only after Sky Fire confirms which parts remain and rechecks compatibility; do not deduct an entire group automatically. A customer-supplied cooling system must be checked for capacity, temperature control, flow, pressure and interface compatibility.

Configuration Information and Confirmed BOM

Customers do not need to purchase the Kit BOM simply to understand the main configuration before ordering. The standalone technical-document prices below apply when documents are purchased separately from the Kit.

Specifications and Pricing

Components and Current Price Breakdown

The table shows the current launch prices for the standard 3000W Kit groups, in USD. Select the configuration, source brand and chiller frequency to see the matching component subtotal. The Configuration C BOCHU S9 group price is confirmed at $1,598 after the cable-price review. A/B servo-group amounts remain launch allowances pending supplier reconciliation. No separate cable or reducer surcharge is added. The confirmed order BOM defines the supplied models, quantities and interfaces.

Price ranges: the ranges reflect MAX/Raycus source selection, S&A 50/60Hz chiller and, for A/B, Leadshine/Inovance servo selection. The selected variant determines the current component price. The online B option uses BM110; BM111 is quoted separately.

Launch pricing and updates: the A/B servo-group allowances and BLT311 consumables amount remain subject to supplier-detail review. The Configuration C BOCHU S9 group has been updated to the confirmed $1,598 amount after the cable-price review. Any future price or custom-scope change must be confirmed before payment; it is not an automatic extra charge on an agreed order. The priced gas hoses are 10 m each, not the 15 m reference-PDF alternative.

Pricing basis: the standard transmission group is $1,416 with its required processing included. The $445 Z-axis slide is separate from its motor/drive (servo group) and Z-axis cables (electrical group). Core electrical loose parts remain $634. The servo figures are complete Kit group amounts: confirmed for C and provisional launch allowances for A/B; do not add independent cable, reducer or filter prices on top. X/Y linear-guide slider blocks are excluded from the standard transmission group and Kit price; compatible blocks are quoted separately.

Configuration basis: use the exact 3000W BOM models, approved axis map and final lengths. Shared power ratings alone do not make another Kit group interchangeable. The electrical figure uses the agreed 1.5–3kW loose-parts basis; this does not add Ready-level panels or wiring service.

Optional equipment is not included: X/Y linear-guide slider blocks, voltage stabilizer, variable-frequency power supply, blower/smoke purifier, digital pressure gauge and non-standard gas fittings are quoted separately when required.

Application review: provide the material, thickness, gas and required edge quality. Cutting capability and production speed depend on the selected source/head, gas, optics and machine setup; suitability for carbon steel, stainless steel, aluminum or other reflective materials must be confirmed for the application.

Downloads

Core Kit Technical Documents

The 3000W English technical documents are now available on Laser Insights China / Laser Podcast. The complete digital bundle contains eight PDFs, 71 pages: three configuration BOMs and five other files. The Core Kit includes the applicable document bundle and free Packing Checklist. Standalone prices below are in USD; the digital bundle is $103.88.

Reference-document notice: the Config. C BOM specifies FSCUT2000E, while some gallery, packing and I/O references carry FSCUT3000 / FSCUT3000E or other board labels. Do not infer a controller substitution from those labels. Obtain the approved, model-matched BOM and wiring release from Sky Fire and resolve discrepancies before wiring or energizing.

$18 BOM purchase credit or refund. If you buy this BOM separately for $18 and later purchase the matching DIY Core Kit, the $18 BOM purchase price can be credited toward your Kit order or refunded to you. Provide your original BOM order number and contact Sky Fire to arrange either the credit or the refund, not both. This is handled against the verified BOM purchase; it is not an automatic checkout discount. This offer applies to the separately purchased BOM, not to other documents or the complete digital bundle. Contact Sky Fire with your BOM order number.

View the complete digital document bundle: $103.88

The complete digital bundle contains eight PDFs: three configuration BOMs plus five other files, including the free Packing List. These represent six document categories. One selected BOM plus the other four paid categories totals $138.50 when purchased separately; buying all three BOMs separately is a different selection.

Document control: the supplied reference BOMs are V1.1 dated August 31, 2026. The downloadable PDFs do not replace the order-specific confirmed BOM and approved wiring release. Check power, configuration, controller/drive model, board revision and axis labels before use; resolve every discrepancy before wiring or energizing. Version information is metadata, not an extra paid document.
