Automatic Lubrication System Package for 1500W DIY Fiber Laser Core Kit
11-Point Thin Oil Lubrication with Felt Gears and Hydraulic Shock Absorbers
This complete lubrication package is designed as the lubrication-system group for the Sky Fire 1500W DIY Core Kit for fiber laser cutting machines. It combines centralized thin-oil delivery, felt-gear lubrication, and hydraulic impact absorption in one coordinated component package.
At the center of the kit is the MY2262-210X dual digital display electric thin oil lubrication pump. The system is configured for 11-point lubrication and includes an oil manifold, progressive divider, metering elements, copper rods, copper cores, and matching fittings for the confirmed Core Kit layout.
The supplied M2 left-hand felt gears distribute lubricant across mating gears and moving surfaces. Four AC2020-2 hydraulic shock absorbers provide controlled deceleration to help reduce impact, vibration, and mechanical wear at the end of travel.

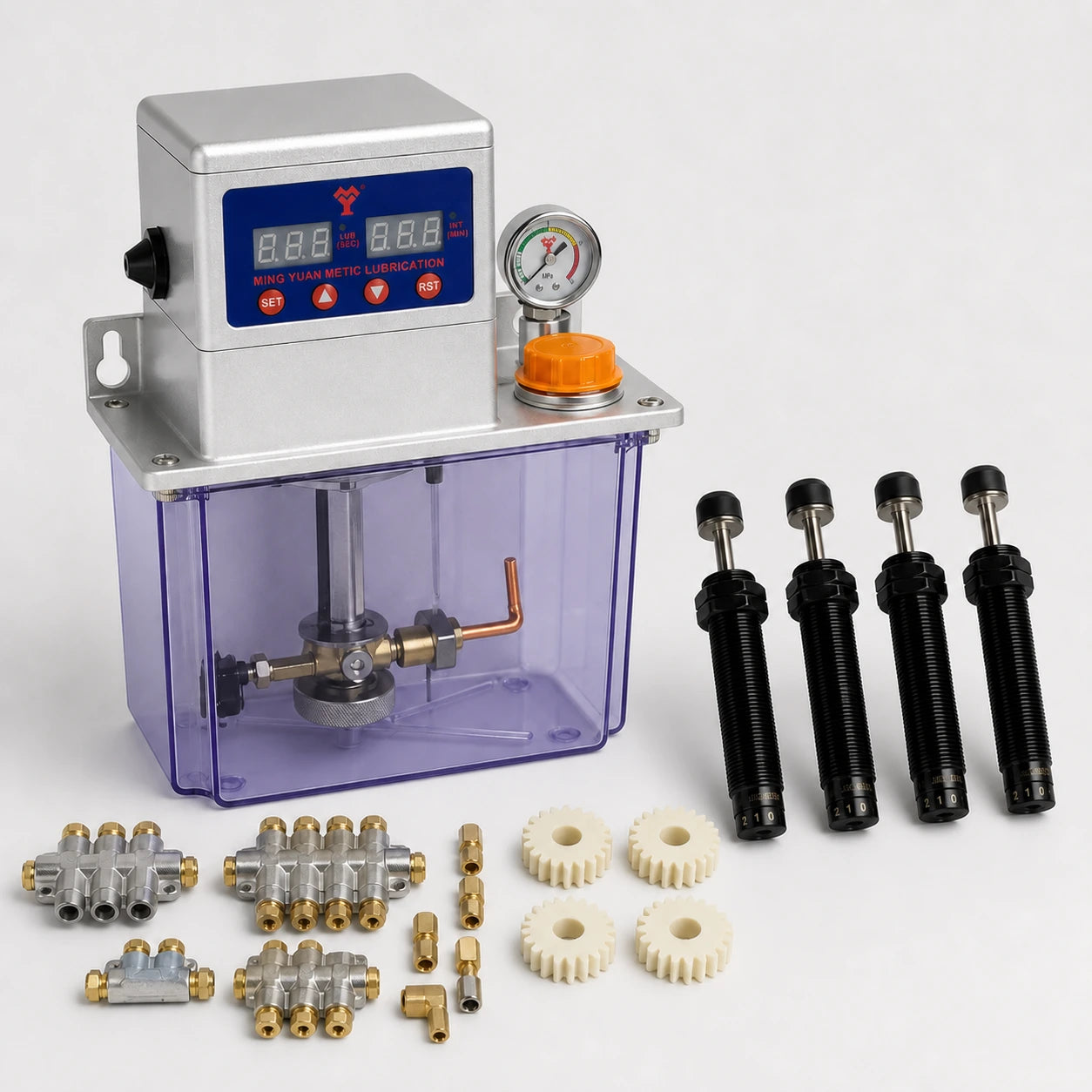

Package Includes
- 1 x MY2262-210X dual digital display electric thin oil lubrication pump
- 1 x 11-point lubrication distribution assembly
- Oil manifold and progressive divider
- Metering elements, copper rods, copper cores, and matching fittings
- 4 x M2 left-hand felt gears, 22 teeth
- 4 x AC2020-2 hydraulic shock absorbers
Key Benefits
- Complete coordinated kit for centralized thin-oil lubrication applications
- 11-point distribution setup for supplying multiple lubrication locations
- Dual digital display for convenient operating-status monitoring
- Special alloy-steel gear pump designed for stable pressure and low-noise operation
- Automatic pressure-release design supports intermittent lubrication cycles
- Felt gears help transfer lubricant gradually to gear teeth and moving surfaces
- Hydraulic shock absorbers help reduce end-of-travel impact and vibration
MY2262-210X Pump Specifications
| Specification | Value |
|---|---|
| Model | MY2262-210X |
| Voltage | 220 V |
| Rated speed | 2700 rpm / 50 Hz |
| Motor output | 130 W |
| Current | 0.35 A |
| Rated pressure | 1.8 MPa |
| Maximum pressure | 3.5 MPa |
| Reservoir capacity | 2 L |
| Discharge capacity | 150 cc/min |
| Recommended oil viscosity | ISO VG 32-68 |
| Pump weight | Approximately 3.31 kg |
Felt Gear Specifications
| Specification | Value |
|---|---|
| Material/type | Felt lubrication gear |
| Module | M2 |
| Direction | Left-hand |
| Number of teeth | 22 |
| Quantity | 4 pieces |

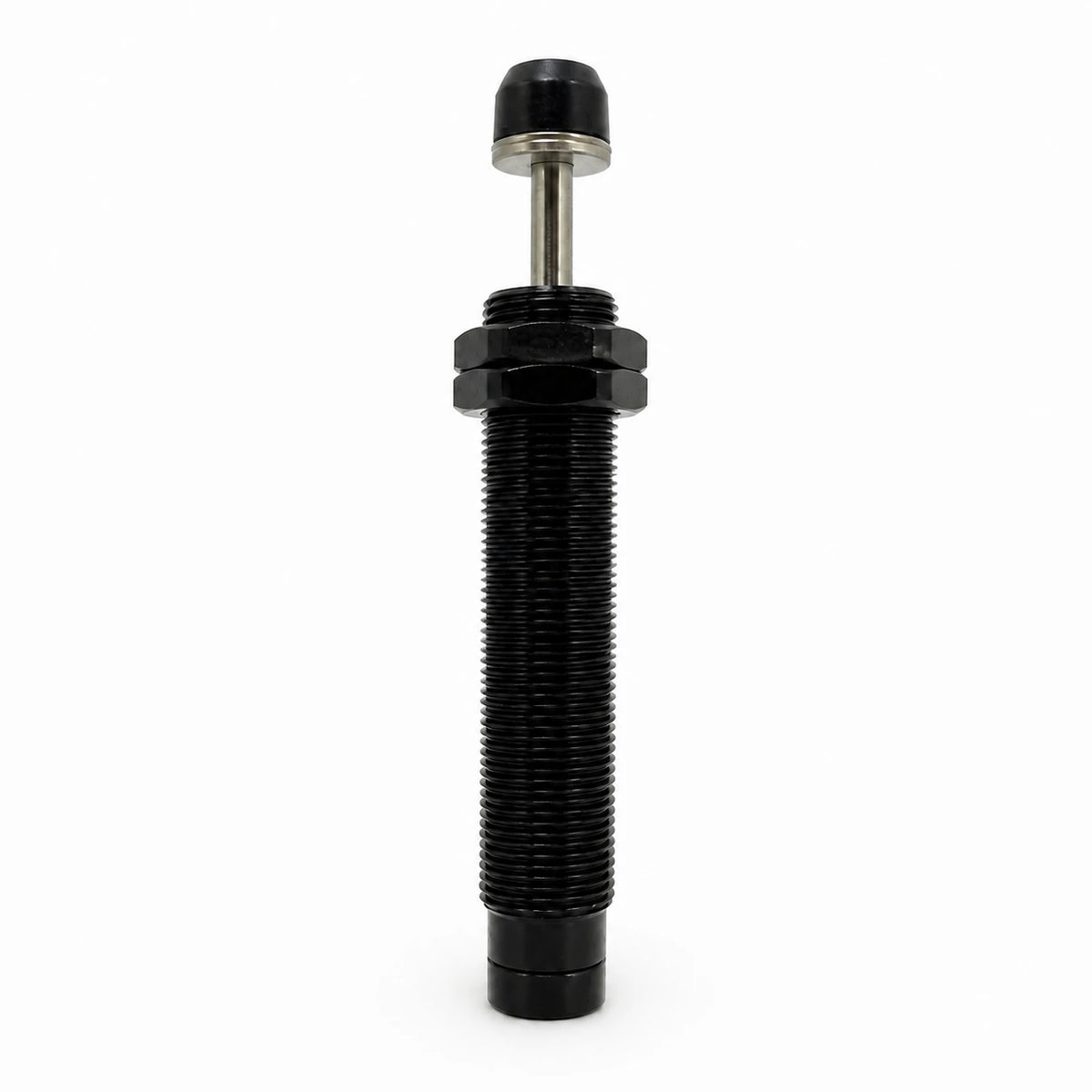

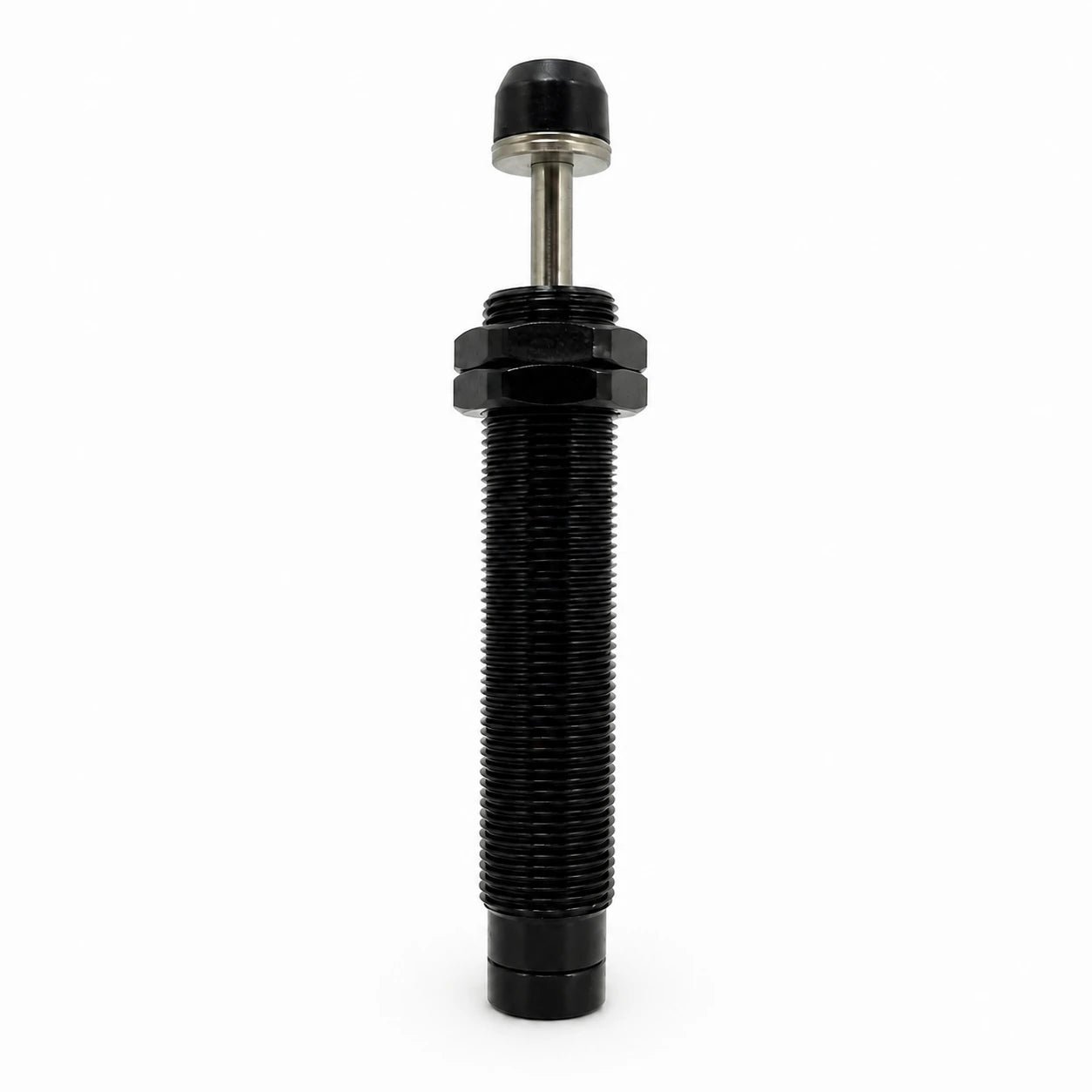

AC2020-2 Shock Absorber Specifications
| Specification | Value |
|---|---|
| Model | AC2020-2 |
| Series | ACA/ACJ hydraulic shock absorber |
| Stroke | 20 mm |
| Maximum absorbing energy | 60 N·m |
| Maximum hourly absorbing energy | 50,000 N·m/h |
| Maximum effective mass | 960 kg |
| Maximum impact speed | 4 m/s |
| Speed configuration | Low-speed / heavy-load type |
| Quantity | 4 pieces |
Before Ordering
Confirm the machine voltage, installation dimensions, lubrication-point arrangement, tubing interfaces, felt-gear rotation direction, and shock-absorber mounting requirements before ordering. For a new 1500W DIY Core Kit order, the final models, quantities, interfaces, and delivery scope must follow the confirmed engineering BOM. Compatibility with other machines or independently sourced components is not guaranteed.
FAQ
Is this the complete 1500W DIY Core Kit?
No. This listing covers the lubrication-system component package used with the 1500W DIY Core Kit. It contains one MY2262-210X pump with an 11-point lubrication assembly, four M2 left-hand 22-tooth felt gears, and four AC2020-2 hydraulic shock absorbers. The laser source, cutting head, controller, servo system, water chiller, and other Core Kit hardware are not included in this listing.
What power supply does the pump require?
The supplied MY2262-210X pump is rated for a 220 V, 50 Hz power supply.
What oil should be used?
The specified viscosity range is ISO VG 32-68. Select the final lubricant according to the machine manufacturer's requirements and the operating environment.
How can I confirm compatibility?
Compare the machine voltage, mounting dimensions, interfaces, lubrication layout, gear direction, and shock-absorber requirements before purchase. Contact us with machine photos and existing component labels if any details are uncertain.
