About one and a half years ago, we shared a complete guide on how to build a DIY fiber laser metal sheet cutting machine. That project helped many users understand one important thing: a laser machine is not mysterious when you break it into clear modules.
A DIY fiber laser cutter is not just one machine. It is a mechanical platform, a laser source, a cutting head, a chiller, a motion system, a cutting control system, wiring, and process debugging. Once every module is selected and connected correctly, the whole system becomes understandable and buildable.
Now we are applying the same thinking to a new project: DIY robotic laser welding. At first, robotic welding sounds more advanced than sheet metal cutting. But when you compare the two systems layer by layer, the structure is very familiar. In some ways, the DIY robotic laser welding system is even easier to assemble because the robot platform and the laser module can be prepared as two clear modules with preset parameters and signal logic.

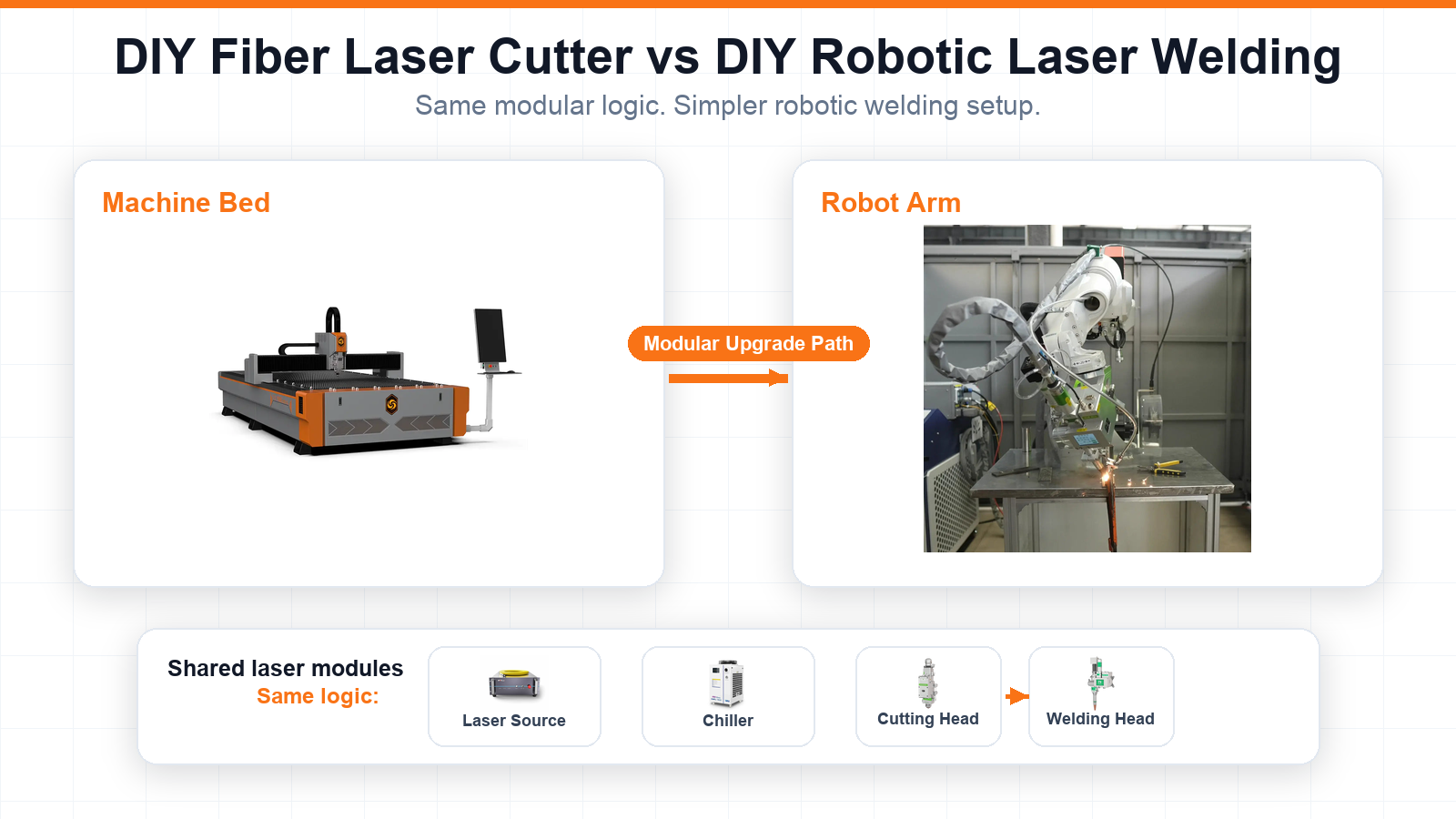

The Core Comparison: Machine Bed vs Robot Arm
For a DIY fiber laser cutter, the mechanical foundation is the machine bed. When choosing the bed, users usually care about two major factors:
- Working area: for example, 3000 x 1500 mm, 4000 x 2000 mm, 6000 x 2000 mm, and other custom sizes.
- Bed material: for example, aluminum profile structures or carbon steel welded structures.
For a DIY robotic laser welding system, the mechanical foundation is no longer a flat machine bed. It becomes the robot arm. The selection logic is also simple, and users mainly need to consider two parameters:
- Arm reach: for example, 1.2 m, 1.4 m, 1.8 m, or other working ranges.
- Payload: for example, 12 kg, 25 kg, or higher, depending on the welding head, cable package, brackets, and safety margin.

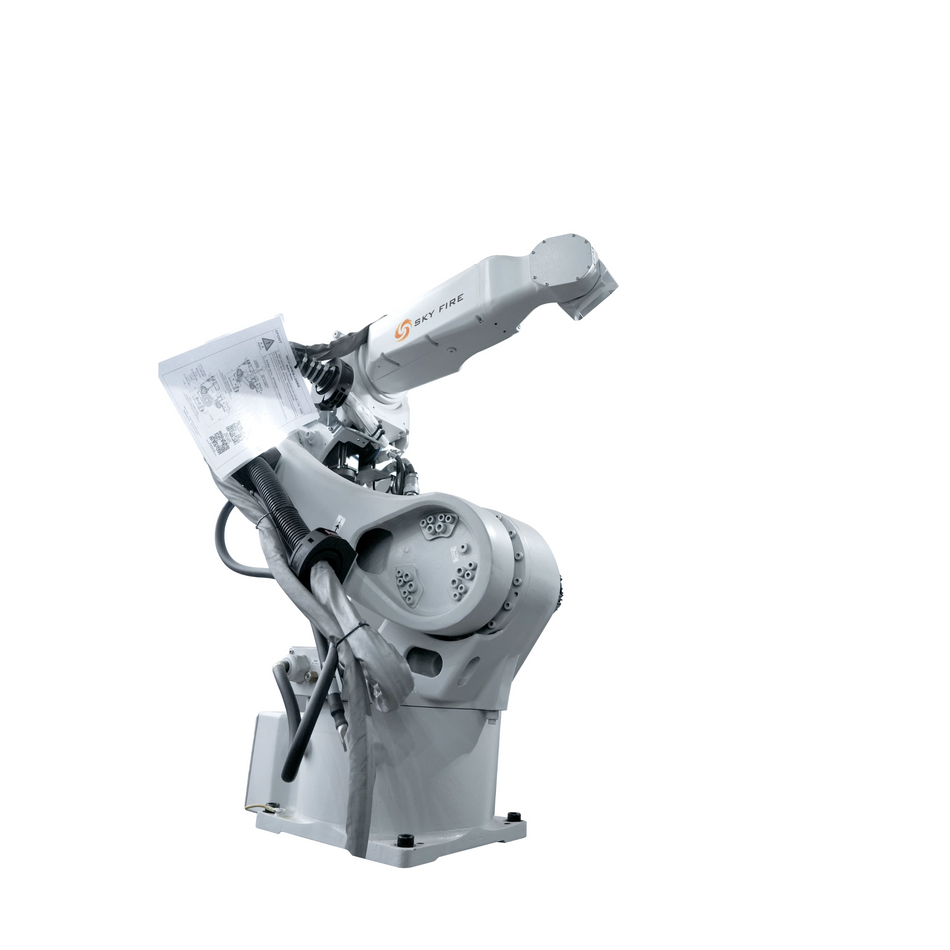

For example, users can compare robot platforms in the SFRW Series Robot Industrial Laser Welding range according to reach, payload, part size, and fixture layout.
In other words, the robot arm plays the same role that the machine bed plays in a laser cutter. It defines the working space, movement range, and mechanical capability of the system.
Laser Module Comparison: Cutting Head vs Welding Head
The laser side is even more direct. In a DIY fiber laser cutter, the key laser module usually includes:
In a DIY robotic laser welding system, the structure is almost the same:
The laser source provides the energy. The head controls how that energy reaches the workpiece. The chiller protects the laser source and optical components by keeping the system at a stable working temperature. If you already understand a DIY laser cutter, you already understand half of a DIY robotic laser welding system.
Side-by-Side System Comparison
| System Layer | DIY Fiber Laser Cutter | DIY Robotic Laser Welding |
|---|---|---|
| Mechanical platform | Machine bed | Robot arm |
| Main mechanical parameters | Working area, bed material | Arm reach, payload |
| Typical examples | 3000 x 1500 mm, 4000 x 2000 mm, 6000 x 2000 mm; aluminum profile or carbon steel | 1.2 m, 1.4 m, 1.8 m reach; 12 kg or 25 kg payload |
| Laser module | Laser source, cutting head, chiller | Laser source, welding head, chiller |
| Motion and control | Servo motors, servo drives, cutting control system, Z-axis control, gas control | Robot controller, welding process control, laser signal interface, wire feed and gas control when required |
| DIY workload | Mechanical assembly, motor wiring, driver tuning, cutting system setup, laser source setup, cutting head setup, chiller setup | Install welding head, connect chiller, connect robot and laser module, call preset parameters, verify welding process |
| Integration difficulty | Higher, because motion, laser, control, electrical wiring, and process settings must be matched one by one | Lower, because the robot module and laser module can be preconfigured before delivery |
Why DIY Robotic Laser Welding Can Be Easier Than Expected
When we built DIY fiber laser cutters, users needed to connect and debug many separate parts: laser source, motor and driver, cutting head, cutting software, Z-axis, gas control, water chiller, and electrical wiring. This is a valuable learning process, but it also requires time and technical patience.
For the DIY robotic laser welding system, our integration idea is different. We divide the whole machine into two large modules:
- Mechanical module: the robot arm, robot controller, and motion platform.
- Laser module: laser source, welding head, chiller, welding control interface, and related signal logic.
The important point is that the signal debugging and parameter presets can be completed in advance. After that, the user does not need to rebuild the system from zero. In many cases, the robot module and laser module can be connected through one Ethernet cable, making the installation much more direct.
This is the biggest reason we believe DIY robotic laser welding has strong potential. It keeps the spirit of DIY, but removes a large part of the difficult signal matching work.
What Do You Still Need to Select?
A simplified system does not mean every configuration is the same. To build the right robotic laser welding cell, users still need to choose the main modules based on their real workpieces.
If you want to see how these choices come together in a complete production cell, you can also review our turnkey robotic laser welding workstations for reference layouts and configuration ideas.
Quick Configurator: Build the Welding Cell Like a Production PC
On our turnkey workstation configurator, the robotic laser welding cell is built step by step. This is useful for DIY users because it shows that the system is not a mysterious black box. It is a group of selectable modules that need to match the workpiece, fixture, weld path, and production target.
| Configurator Step | Main Choices | Why It Matters |
|---|---|---|
| Robot arm | Efort SFRW-1214 12 kg / 1479 mm, SFRW-1220 12 kg / 2025 mm, or SFRW-2518 25 kg / 1850 mm | Reach and payload decide whether the robot can access the weld seam with enough stability and tooling margin. |
| Laser power | 1500W, 2000W, 3000W, or higher power options after project review | Power should match material, thickness, joint type, speed target, and weld quality requirement. |
| Laser source brand | MAX MFSC / MFMC source family or Raycus RFL CW fiber source family | The source needs stable output, compatible control signals, and service support for the selected process. |
| Auto-matched hardware | Raytools welding head and S&A CWFL chiller matched to the selected laser power | The welding head, optics, and cooling system should be selected as one matched laser module. |
| Process modules | Wire feeder kit, additional external axis kit, and seam tracking when required | These options help handle gaps, larger parts, coordinated motion, long seams, and fit-up variation. |
The live configurator also produces a simple BOM-style summary: robot, laser source, welding head, chiller, and selected options. For a DIY robotic laser welding project, this same checklist is a practical way to avoid mismatched components before you start installation.
1. Choose the Robot Arm Reach
The arm reach decides the working radius. A 1.2 m robot arm may be suitable for compact workstations and small parts. A 1.4 m arm is a balanced choice for many sheet metal welding jobs. A 1.8 m arm is better for larger structures, cabinets, frames, or parts that require a wider motion range.
2. Choose the Robot Payload
Payload is not only the weight of the welding head. It should include the welding head, mounting bracket, cable package, wire feeding accessories if used, collision protection, and a reasonable safety margin. For lighter configurations, 12 kg may be enough. For heavier welding heads or more complex tooling, 25 kg gives more flexibility.
3. Choose the Laser Power
The laser source should be selected according to material type, thickness, welding speed, and joint requirement. Stainless steel, carbon steel, galvanized steel, aluminum, and copper may require different process strategies. A good system should not only have enough power, but also stable output and reliable process control.

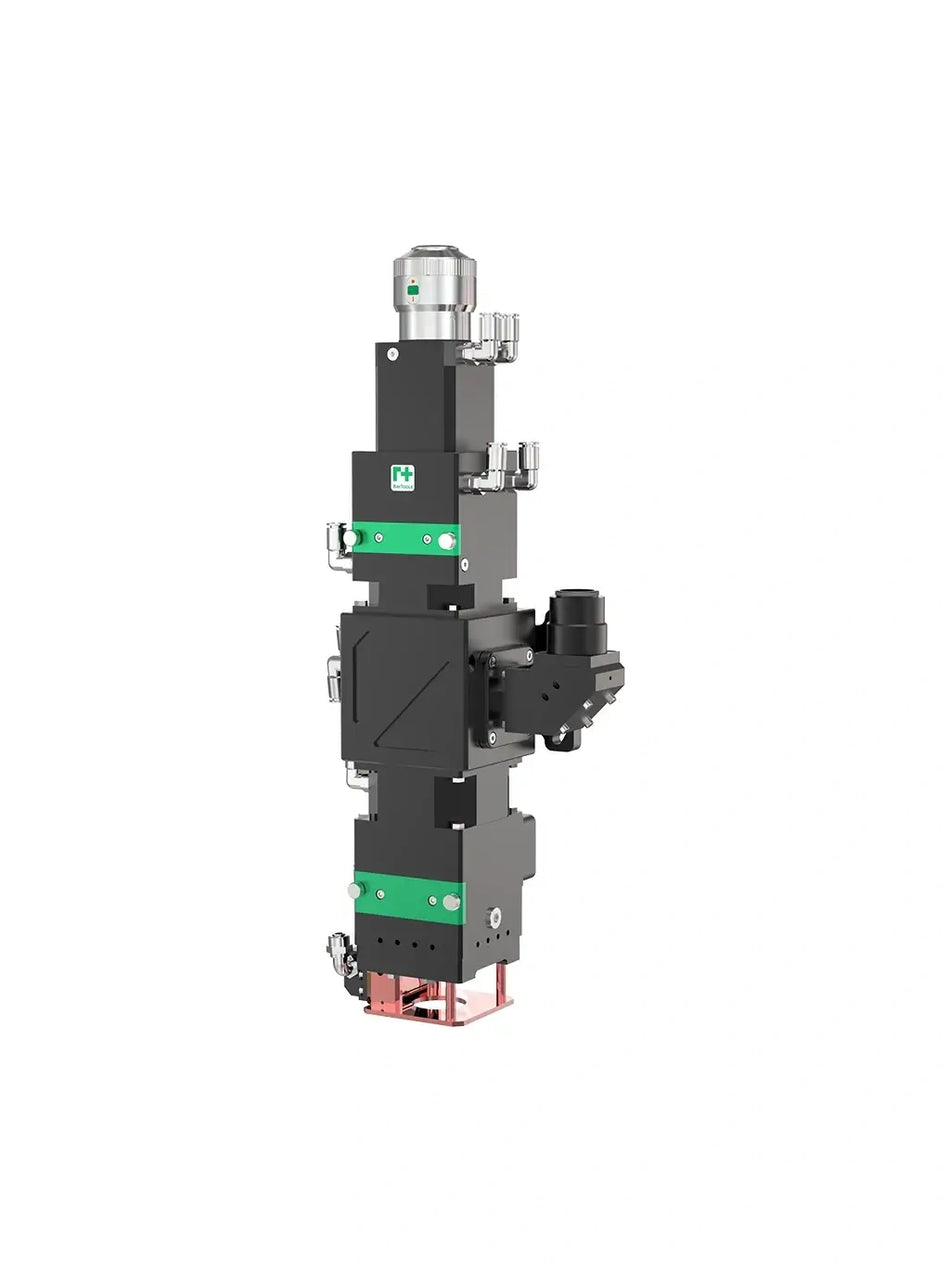

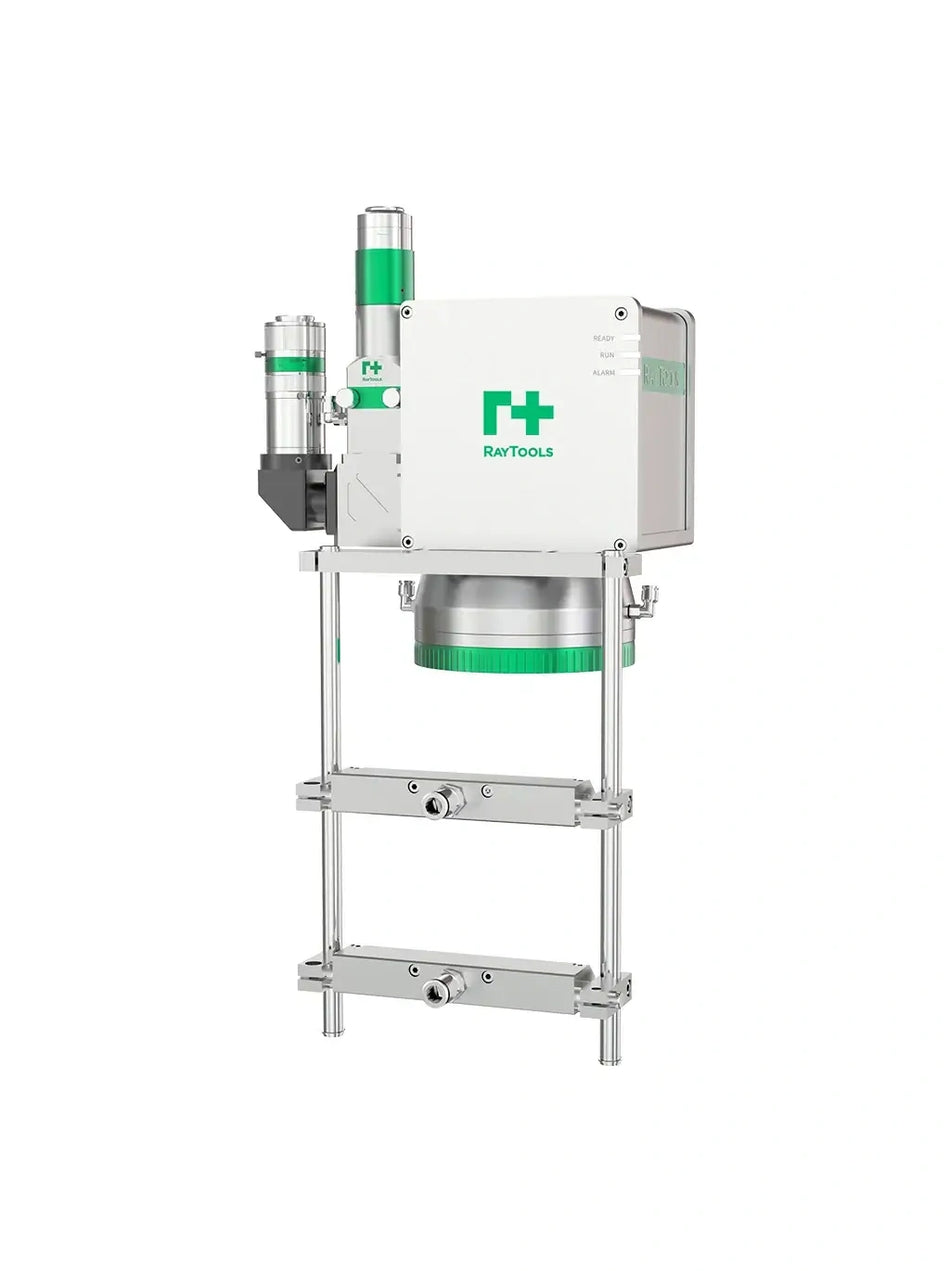

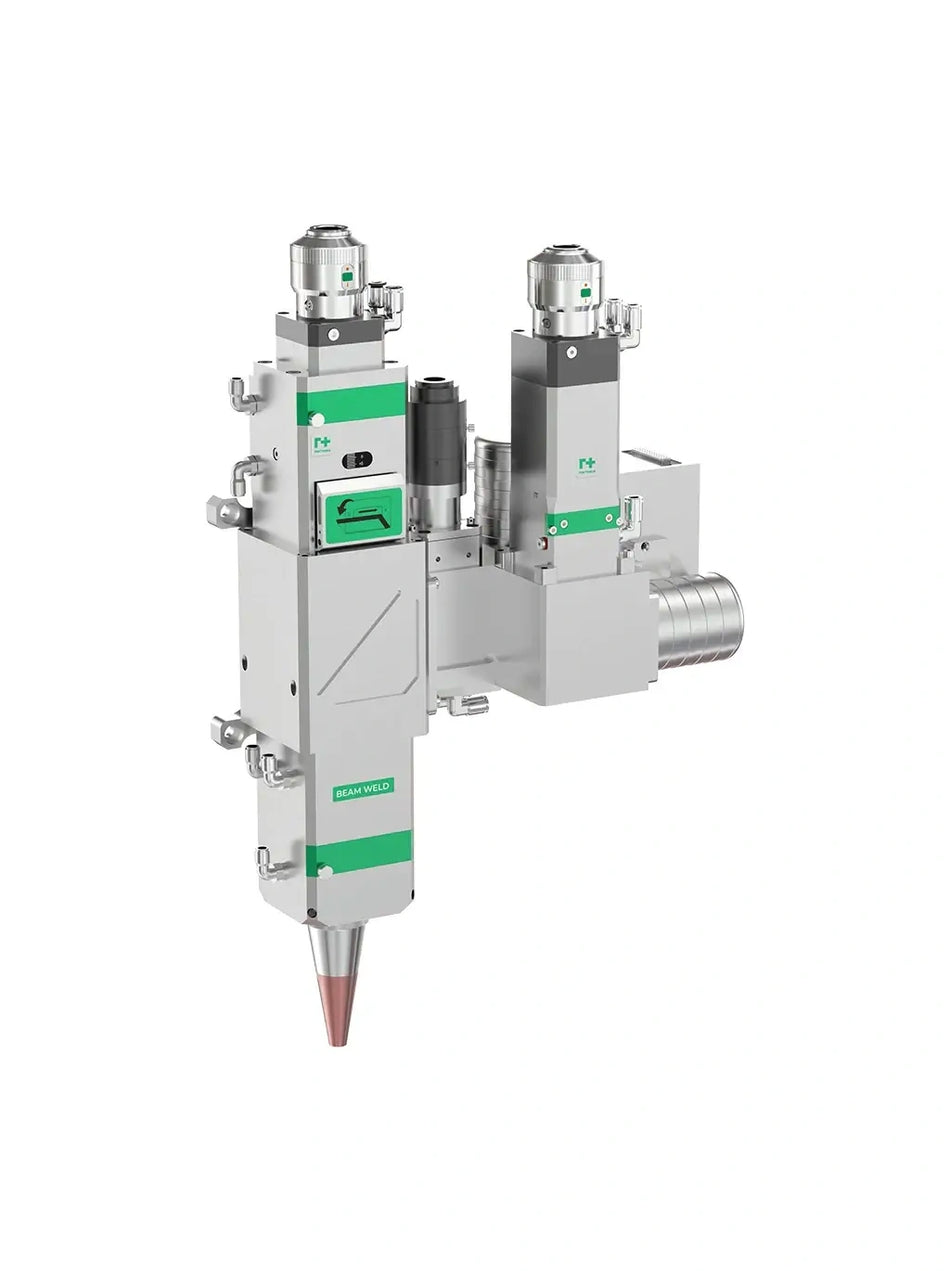

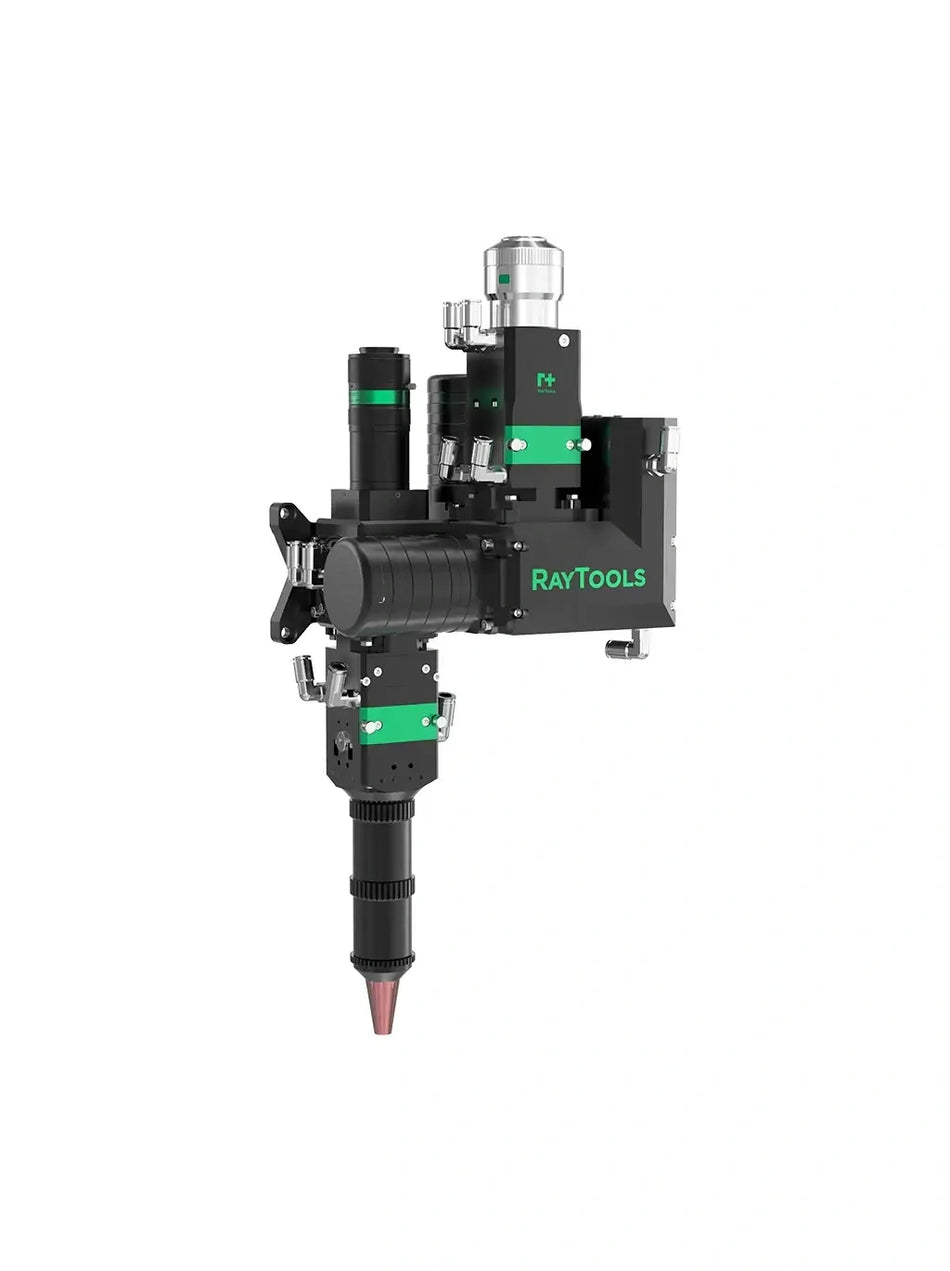

4. Choose the Welding Head and Chiller
The welding head affects weld quality, spot control, stability, and robot mounting. The chiller must match the laser power and the working environment. Just like a DIY laser cutter, cooling is not optional. Stable temperature is one of the foundations of stable laser performance.
From DIY Cutting to DIY Welding: The Same Learning Path
The success of DIY fiber laser cutting proved that many users are willing to build, understand, and improve their own laser machines if the system is divided into clear modules and supported with the right checklist.
DIY robotic laser welding follows the same path. The difference is that the robot arm replaces the machine bed, and the welding head replaces the cutting head. The laser source and chiller remain familiar. The system control becomes more integrated because the robot and laser module can be connected through prepared signal logic.
For users who already understand laser cutting, robotic laser welding is not a completely new world. It is the next step of the same modular idea.
Who Is This DIY Robotic Laser Welding System For?
This kind of system is suitable for users who want to move from manual welding or handheld laser welding toward more stable automated welding. It is especially useful for:
It is also especially relevant for shops that already own a laser cutting machine. Once you can cut sheet metal quickly, welding often becomes the next production bottleneck. In a typical repeated-part production scenario, the output from one productive laser cutter may require around eight manual welding stations to keep up with downstream assembly. With robotic laser welding, the same flow may be handled by about two to three robotic welding cells, depending on part size, fixture design, weld length, material, and process requirements.
- Small manufacturing teams producing repeated parts
- Sheet metal workshops that need consistent weld appearance
- R&D teams working with different materials and product versions
- Factories that want to test robotic welding before investing in a large turnkey line
- DIY laser users who already understand laser source, chiller, and optical head selection
The goal is not to make robotic welding look simple in a careless way. Laser welding still requires safety protection, fixture design, process verification, and operator training. The goal is to make the system structure clear, so users can understand what they are building and why each module matters.
Safety Reminder
Robotic laser welding is an industrial laser process. Users must prepare proper laser safety protection, including protective enclosure, interlock logic, fume extraction, fire prevention, operator training, and suitable personal protective equipment. A robot also introduces motion safety requirements. Before production, every system should be checked under safe conditions and validated with real workpieces.
Conclusion: Robotic Laser Welding Is the Next DIY Laser Project
The DIY fiber laser cutter taught us an important lesson: when a complex laser machine is divided into understandable modules, users can build it successfully.
The DIY robotic laser welding system follows the same logic. The machine bed becomes a robot arm. The cutting head becomes a welding head. The laser source and chiller remain core modules. The main difference is that the robot and laser module can be prepared with preset parameters and signal debugging, then connected in a much simpler way.
If you are interested in building your own robotic laser welding system, you can start from the 3D Robot Laser Welding collection, review our DIY robotic laser welding primer, or contact us with your workpiece size, material, thickness, welding path, required reach, and expected production volume. We can help you choose the right robot arm, laser source, welding head, chiller, and support package.
FAQ
Is DIY robotic laser welding harder than building a DIY fiber laser cutter?
Not necessarily. A DIY fiber laser cutter requires detailed wiring and debugging for motors, servo drives, cutting control, laser output, cutting head, gas control, and chiller. A DIY robotic laser welding system can be easier if the robot module and laser module are preconfigured and connected through preset signal logic.
What is the robotic welding equivalent of the laser cutter bed?
The robot arm is the equivalent of the machine bed. For a cutter, users choose working area and bed material. For robotic welding, users choose arm reach and payload.
What are the core parts of a DIY robotic laser welding system?
The core parts include robot arm, robot controller, laser source, laser welding head, water chiller, welding control interface, safety system, fixture, and optional wire feeder depending on the welding process.
Why does payload matter?
Payload must cover the welding head, brackets, cable package, wire feeding accessories if used, and safety margin. Choosing too little payload can reduce motion stability and limit future upgrades.
Can one Ethernet cable really connect the robot and laser module?
In the prepared modular configuration, the robot module and laser module can be connected through one Ethernet cable after signal logic and parameter presets are completed in advance. The final wiring plan depends on the chosen robot, controller, laser source, welding head, and safety design.
