Raytools BC04K/BC06K Laser Cladding Head for Surface Repair, Coating and Remanufacturing
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Overview
RayTools BC04K / BC06K Laser Cladding Head for Surface Repair, Coating and Remanufacturing
The RayTools BC series laser cladding heads are water-cooled fiber laser processing heads for laser cladding and surface repair applications. BC04K is rated for up to 4KW laser power, while BC06K is rated for up to 6KW and uses a larger optical aperture for higher-power cladding setups.
Both models support standard C/CS vision camera connection, QBH standard fiber interface with optional LOE3.1, QD, or Q+ interfaces, shielding gas connection, water cooling, field centering adjustment, and optional lens temperature monitoring module.
Best For
- Laser cladding machine integration, repair, or head replacement projects.
- Industrial surface repair, additive cladding, coating, and remanufacturing applications using fiber laser sources.
- Buyers comparing 4KW and 6KW RayTools cladding head configurations before confirming fiber interface, focusing lens, cooling, gas, and powder-feeding setup.
Model Selection
| Model | Recommended selection | Key difference |
|---|---|---|

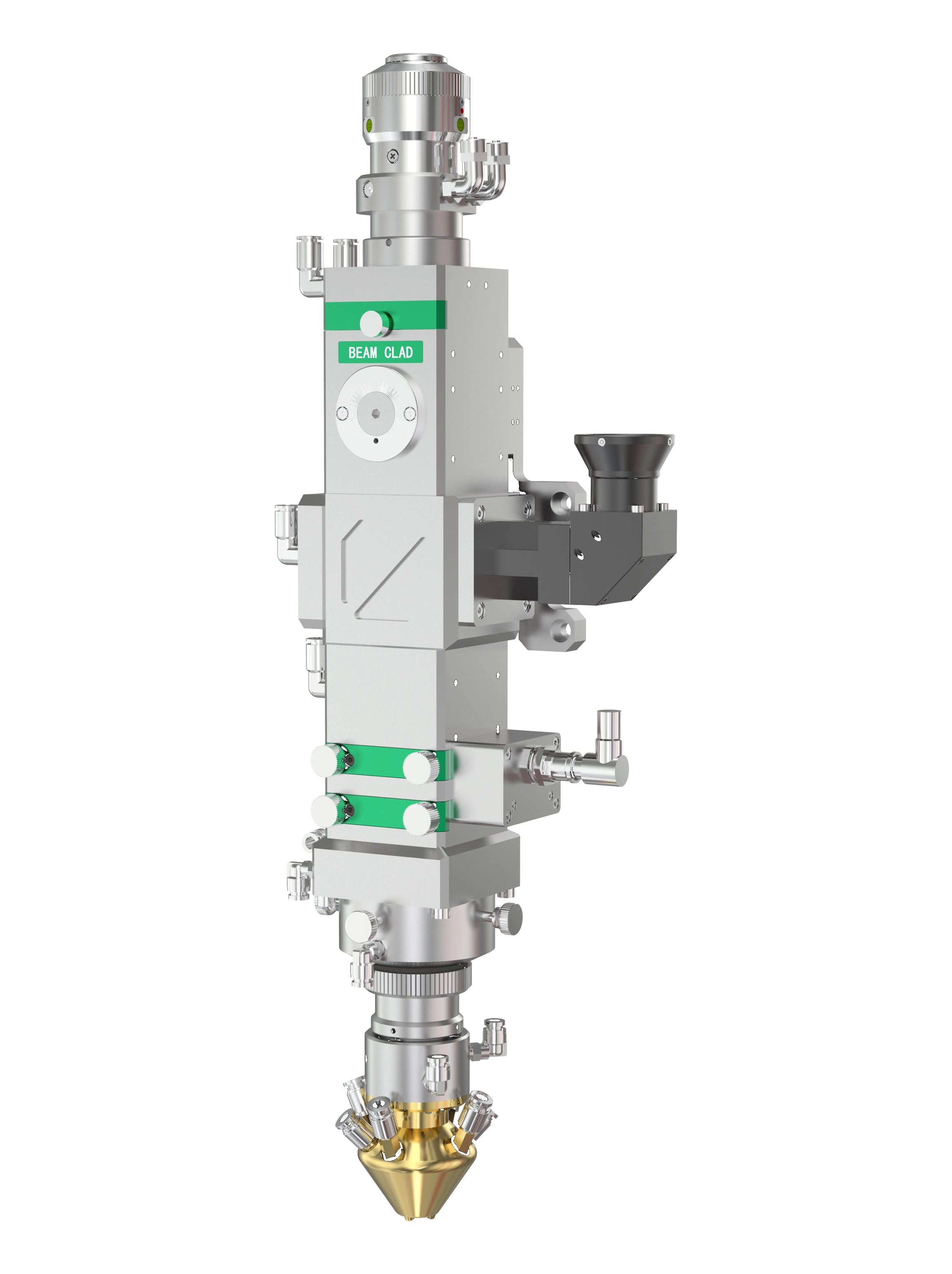

| BC04K | Choose for cladding systems up to 4KW where a compact head and 32mm clear aperture are suitable. | About 4kg body weight, 100mm collimation, 250/300mm focusing options, D37 x 5mm protective lens. |

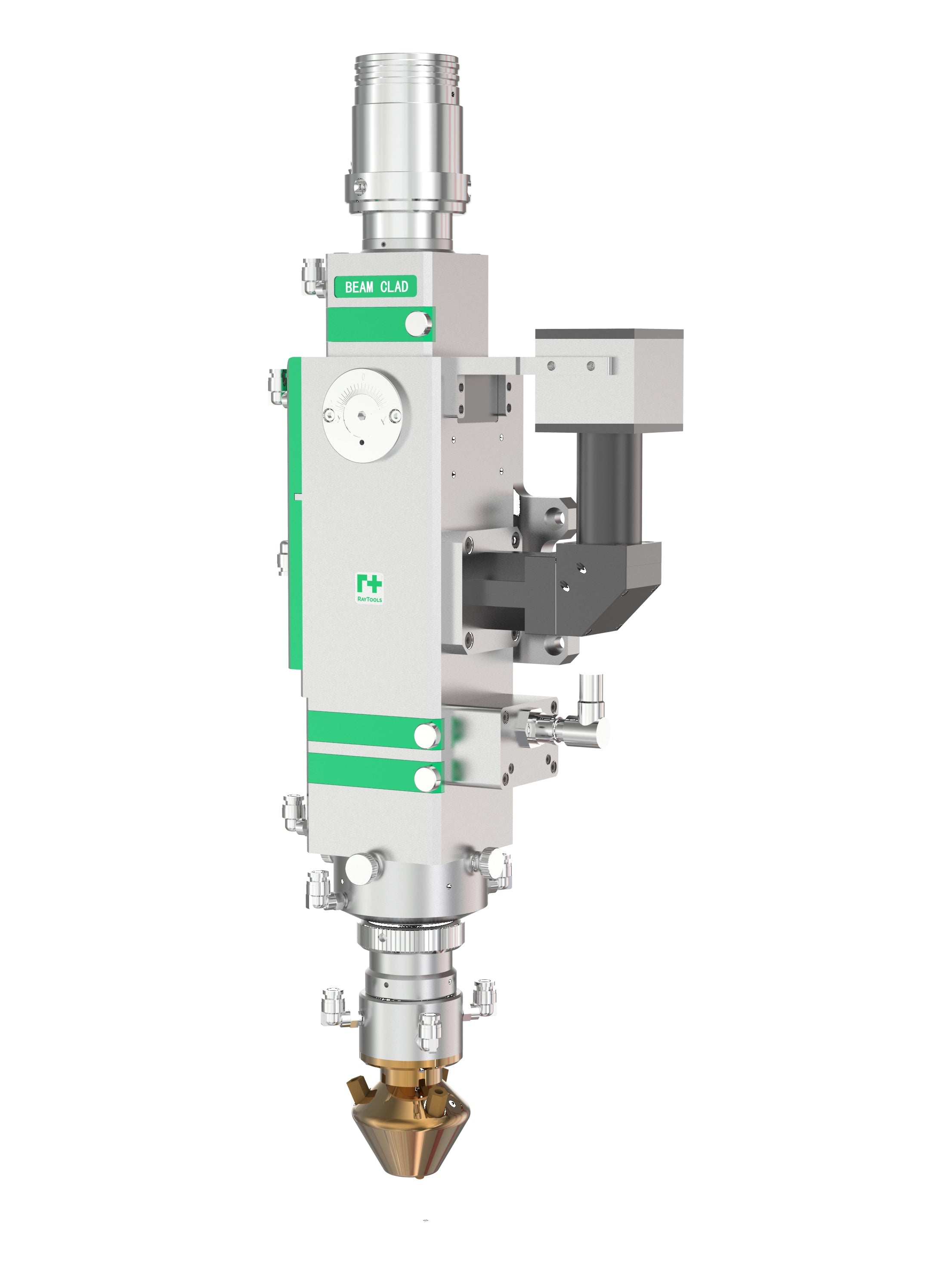

| BC06K | Choose for cladding systems up to 6KW or applications that require a larger 45mm optical aperture. | About 6kg body weight, 100/150mm collimation options, 250/300mm focusing options, D50 x 2 protective lens. |
Key Features
- Designed for 1064nm fiber laser cladding applications.
- QBH standard fiber interface, with LOE3.1, QD, Q+, and other interface options available by configuration.
- Standard C/CS vision lens interface for coaxial observation and process setup.
- Water-cooled structure with 6mm water connections and 8mm gas connection.
- Field-of-view centering adjustment for aligning the vision and process area.
- Optional lens temperature monitoring module for process protection and maintenance planning.
Specifications
| Parameter | BC04K | BC06K |
|---|---|---|
| Laser wavelength | 1064nm | 1064nm |
| Rated laser power | Up to 4KW | Up to 6KW |
| Fiber interface | QBH standard; LOE3.1, QD, Q+, and others optional | QBH standard; LOE3.1, QD, Q+, and others optional |
| Clear aperture | 32mm | 45mm |
| Collimating focal length | 100mm | 100mm / 150mm |
| Focusing focal length | 250mm / 300mm | 250mm / 300mm |
| Protective lens | D37 x 5mm | D50 x 2 |
| Vision lens | Standard C/CS interface | Standard C/CS interface |
| Collimation adjustment range | -5 to +15mm | -5 to +15mm |
| Water cooling connection | 6mm | 6mm |
| Gas connection | 8mm | 8mm |
| Approx. head weight | About 4kg | About 6kg |
| Expandable function | Lens temperature monitoring module | Lens temperature monitoring module |
Cooling And Gas Requirements
- Use water cooling with 6mm cooling water tubing. Do not use low-temperature cooling water that may cause condensation inside the head.
- Recommended coolant is softened or purified water, such as pure water, distilled water, or high-purity water.
- Recommended water quality reference: pH 7.2-8.1, resistivity typically at least 1 MOhm.cm for deionized water, and chloride ion concentration below 50mg/L.
- Normal-temperature water pressure reference: 2-6bar. Normal-temperature water flow reference: 2-4L/min.
- Compressed air pressure reference is about 0.4-0.6MPa. Nitrogen, argon, or other shielding gas flow is typically adjusted around 8-25L/min according to the cladding process.
Compatibility
- Confirm laser power, fiber connector, collimating focal length, focusing focal length, protective lens size, cooling circuit, gas circuit, camera/vision setup, and machine mounting before ordering.
- Confirm powder-feeding nozzle, powder splitter, coaxial adjustment parts, and any end assembly requirements with your machine configuration.
- QBH is the standard listed interface. LOE3.1, QD, Q+, and other optical interfaces should be confirmed before purchase.
Downloads
Before Ordering
Product images and manual diagrams are for reference only. Final configuration may vary by fiber interface, collimating lens, focusing lens, camera setup, powder-feeding parts, and machine mounting design.
Before purchase, confirm the exact model, laser source power, optical interface, process gas, water cooling conditions, end assembly, powder-feeding configuration, installation space, and spare protective lens requirements.
FAQ
Should BC04K and BC06K be listed together?
Yes. They are the same RayTools BC laser cladding head family with the same application direction and similar installation structure. Listing them as model variants makes comparison and ordering easier.
What is the main difference between BC04K and BC06K?
BC04K is rated up to 4KW with a 32mm clear aperture and about 4kg head weight. BC06K is rated up to 6KW with a 45mm clear aperture and about 6kg head weight.
Does the listed price include every optional interface and powder-feeding part?
Confirm before ordering. Optional fiber interfaces, camera setup, end assemblies, powder-feeding parts, and custom machine mounting may affect the final configuration.
Confirm final packing size and accessories before shipment. Product head weight reference: BC04K about 4kg; BC06K about 6kg.
