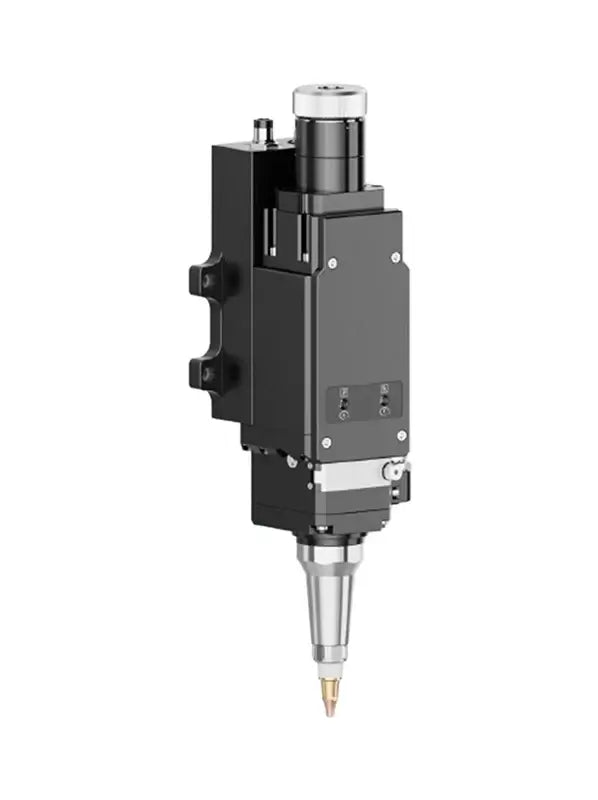

BOCHU Advanced Intelligent Laser Cutting Head For 3D Tube Cutting | BLT310T

The Intelligent Laser Cutting Head BLT310T is specifically designed for laser beams with wavelengths of 1030 to 1090 nm and a maximum power of 4 kW. It utilizes a bus control system for data transmission between the cutting head and the host machine, enabling intelligent control of the cutting head. The cutting head is equipped with gas interfaces, which are used to connect to cutting gases, which are essential for supporting cutting operations and other functionalities.

Carefully take out the cutting head from its packaging upon receiving the product. The nameplate on the right side of the cutting head provides detailed information, including the product model, serial number, power ra ting, and interface specifications. Verify that the nameplate information matches your purchase.

Technical Parameters

Notice:

1. The cutting head should be stored in the environment within the allowed temperature and humidity range.
2. Avoid storing in magnetic fields (such as permanent magnets or strong alternating fields) and their vicinity.
3. Avoid collisions during usage.
4. The maximum pressure of the cutting gas is 25 bar (2.5 Mpa).
5. The quality of cutting gas should meet the requirements of ISO 8573-1:2010. The purer the cutting gas, the longer the service life of the protective
   window.
6. The diameter of the cutting gas interface is 10 mm.

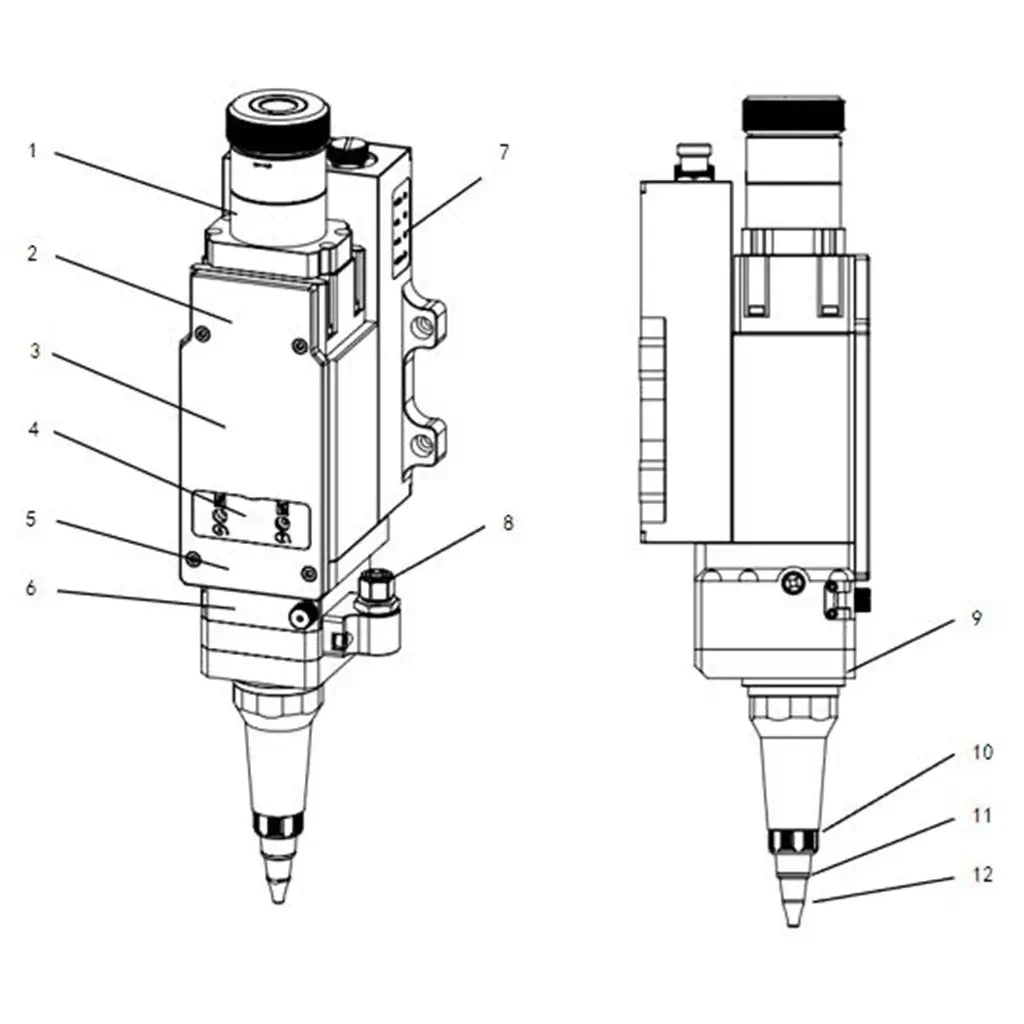

Product View

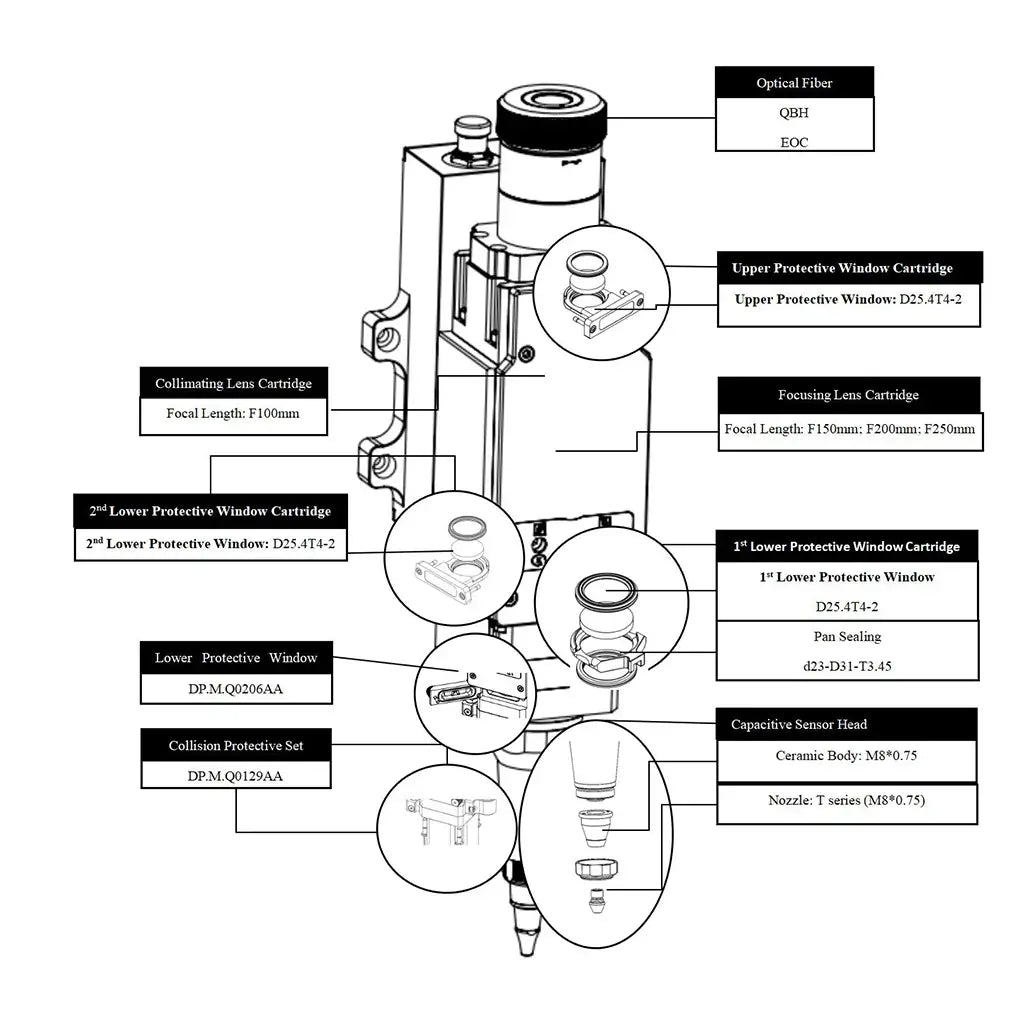

Product Structure Diagram

packing weight about 9.48 lb
