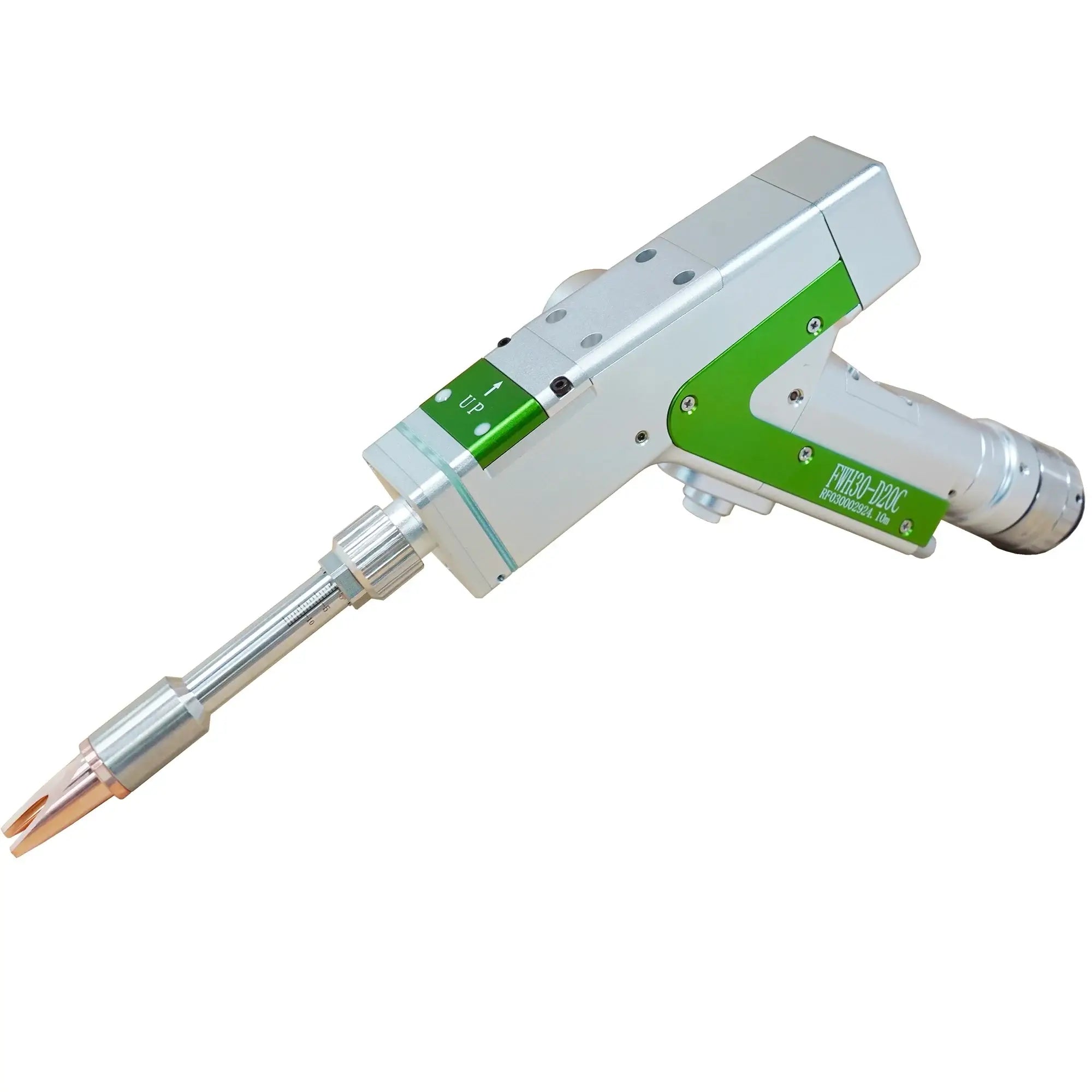

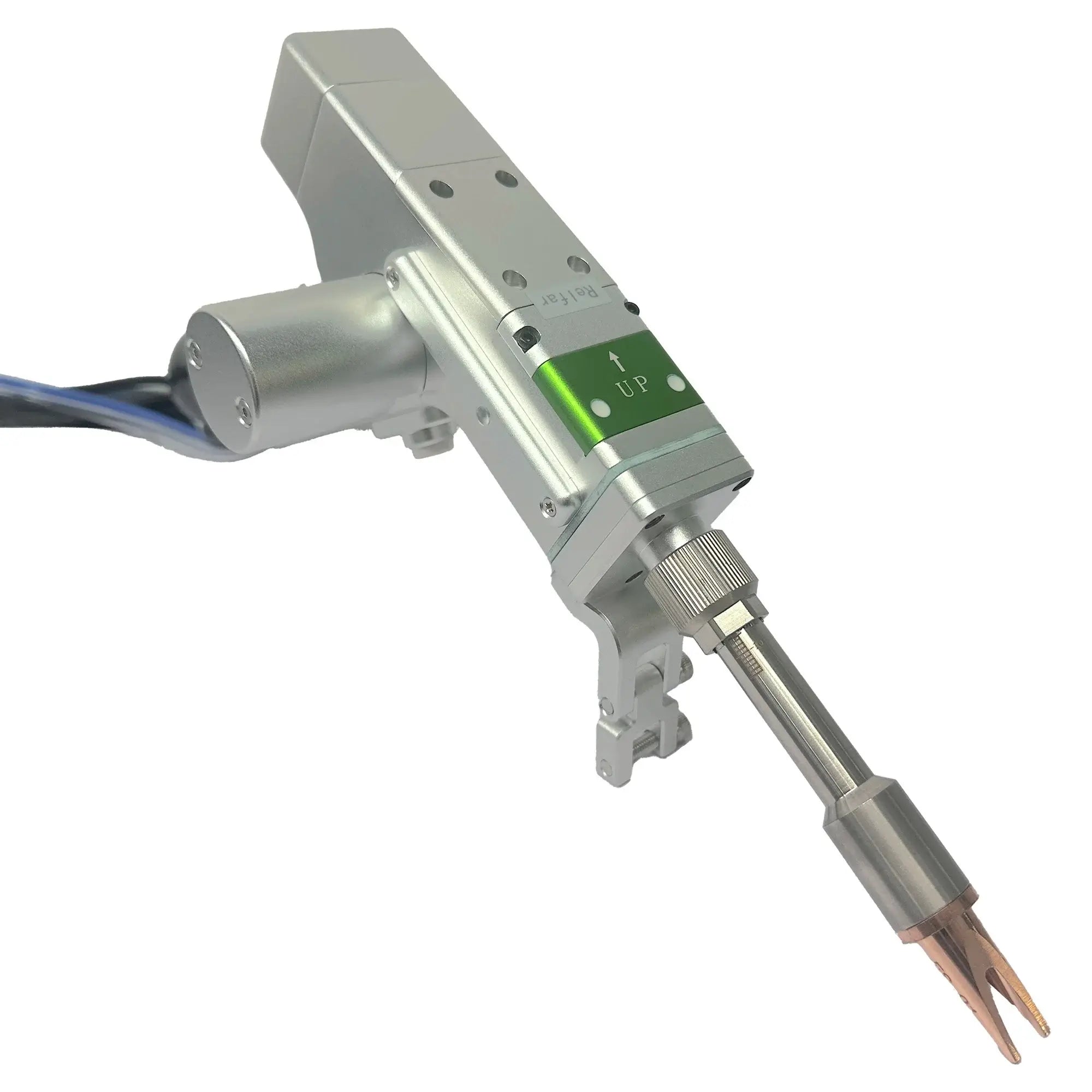

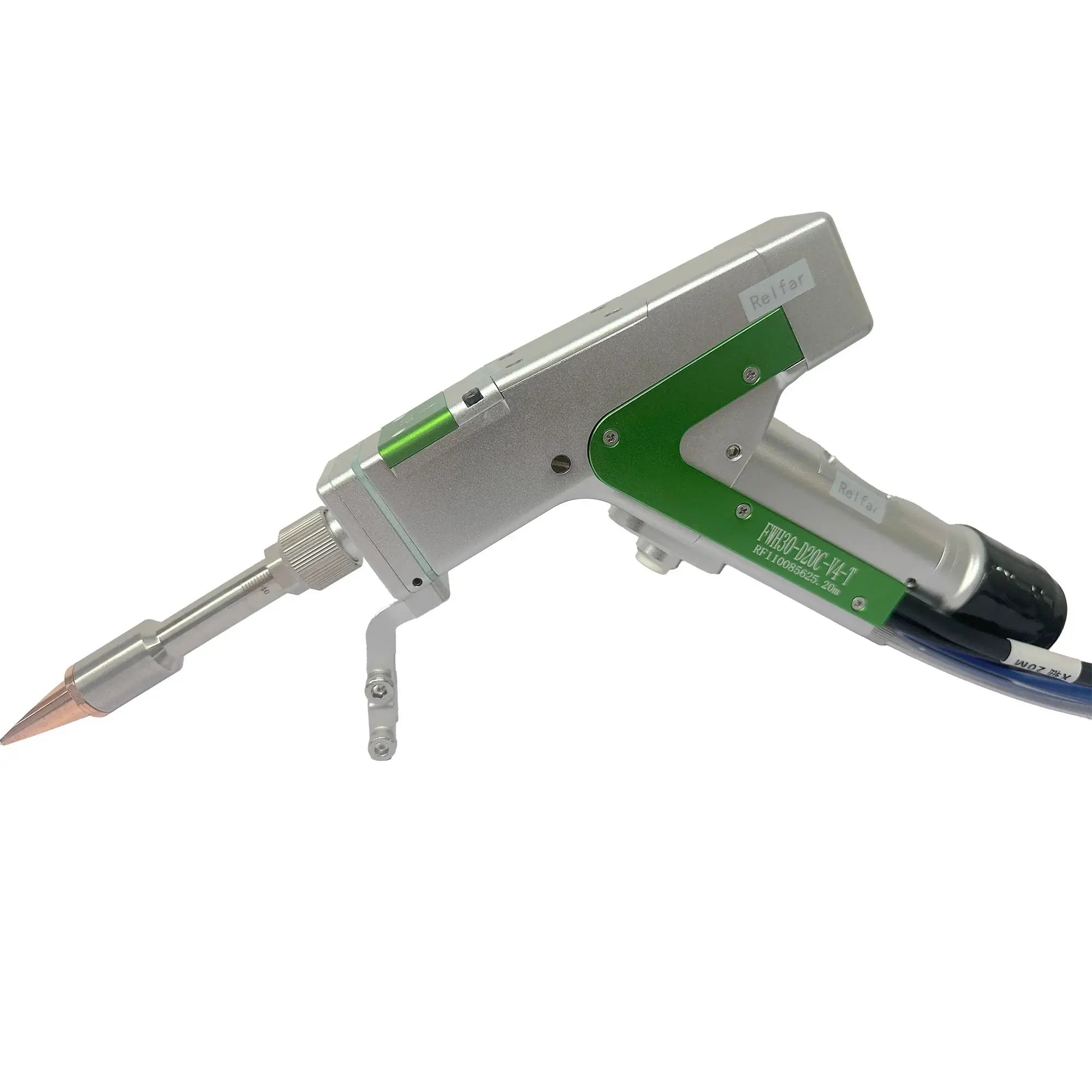

Relfar Intelligent Dual-Axis Handheld Laser Welding Head FWH30-D20C | Double Wire Feed 4 in 1

FWH30-D20C is an intelligent handheld welding system that integrates laser welding and weld seam cleaning. It supports multiple oscillation modes and is suitable for precision welding and surface treatment of various metal materials.

For laser systems with a power of 2000W or 3000W, a dual wire feeding system is recommended.

Product Introduction

• Functional applications include welding, cutting, cleaning, and weld seam cleaning.
• Intelligent protection system, mobile terminal APP and PC monitoring provide real-time feedback on working status.
• High-threshold optical components ensure superior welding results.
• Multiple safety locks provide high safety performance.
• Full-body water-cooling design ensures long-lasting stability.
• Ergonomic design provides comfortable grip and easy handling.
• Application scenarios: Sheet metal industry, hardware industry.

Product Parameter

Model	FWH20-D20C
Fiber Interface	QBH
Wavelength Scope	1070±20nm
Rated Power	≤3000W
Collimation Focal Length	40mm
Focus Focal Length	200mm
Adjustable Spot Size Range	0-8mm
Auxiliary Pressure	≥0.1~1Mpa
Effective Clear Aperture	10mm
Weight	0.9Kg
Swing Type

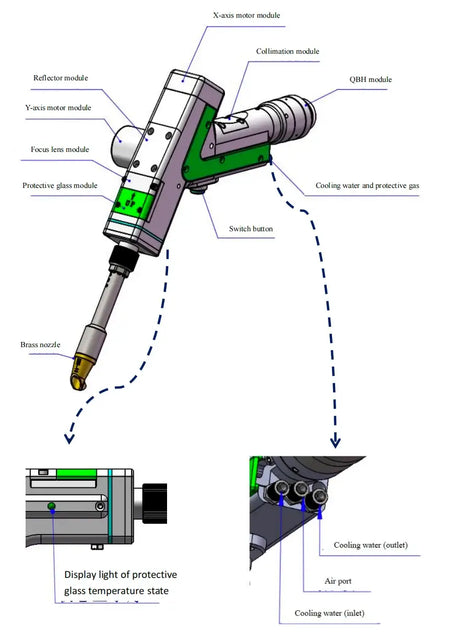

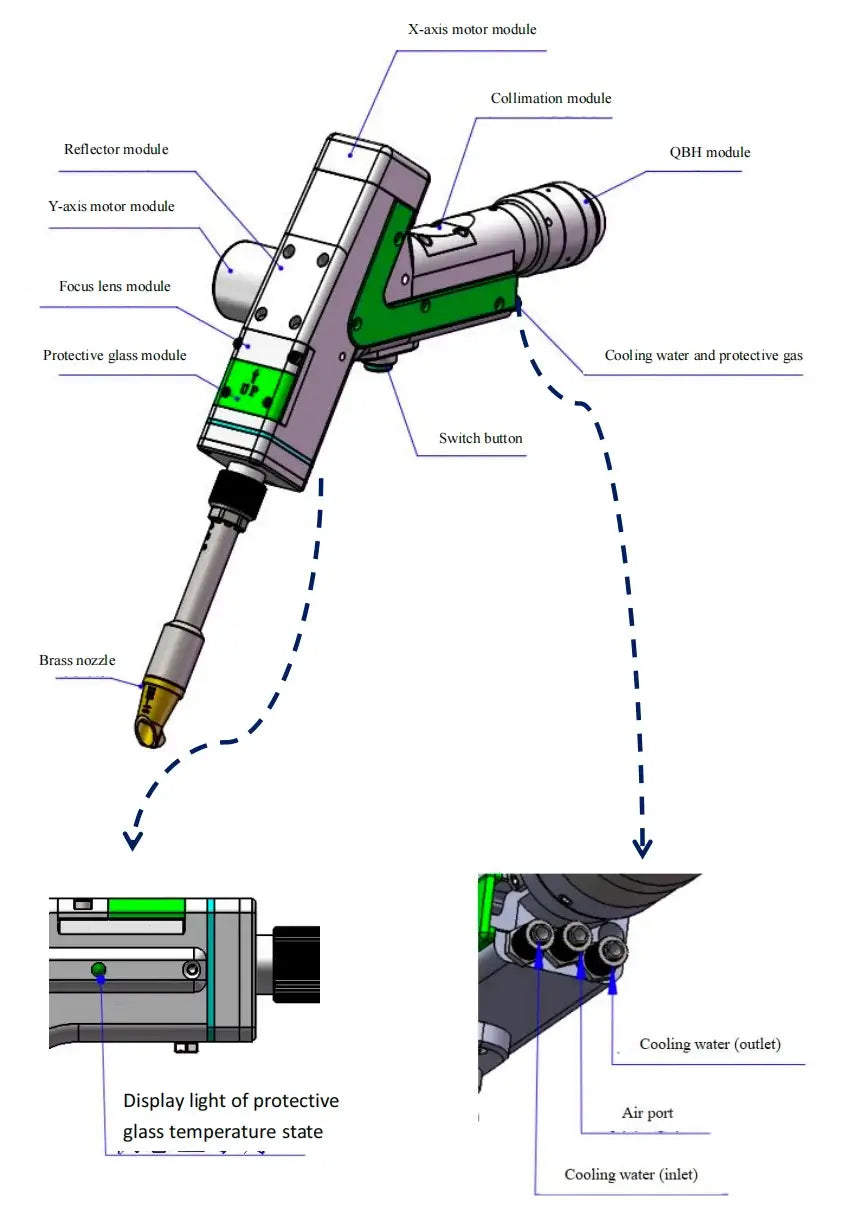

Product Structure

The following video shows a real-world customer application of the FWH30-D20C cleaning head. You can watch the video below to learn more about how this product performs welding tasks.

Installation & Connection

• Piping and Fiber Optic Connection: Provides standard 6mm water and air pipe interfaces, along with illustrated instructions for QBH fiber optic connector installation.
• Electrical System Integration: The main board provides clearly marked interfaces for various components, including power supply, laser, wire feeder, sensors, and safety signals.
• Safety Interlock Installation: The safety clip (Injector) and nozzle contact signal (Interlock) must be connected.
• Modular Component Installation: The product structure supports the replacement of components such as the cleaning module and focusing module.
• Mobile Wireless Connection: Supports connection to a mobile app via AP mode (direct connection to the device's hotspot) or STA mode (via the internet).

Operation & Control

• Touchscreen Parameter Settings: The 7-inch HMI touchscreen provides an intuitive main interface for setting laser power, frequency, oscillation parameters, and wire feeding speed.
• Multi-mode Oscillation Control:  Features multiple preset oscillation trajectories with adjustable frequency and length.
• Intelligent Process Library Management: The system supports saving and recalling process parameters.
• Wire Feeding Control and Adjustment: Supports independent setting of wire feeding speed, delay time, wire retraction, and wire compensation parameters.
• Multiple Safety and Monitoring Features: Includes integrated protection functions such as lens temperature monitoring, laser alarm, chiller alarm, and gas undervoltage alarm.
• Processing Mode Can Be Switched With a Single Click: You can switch between welding mode and cleaning modes with different focal lengths via the system parameters page.

You can click here to obtain the English version of the product manual.
