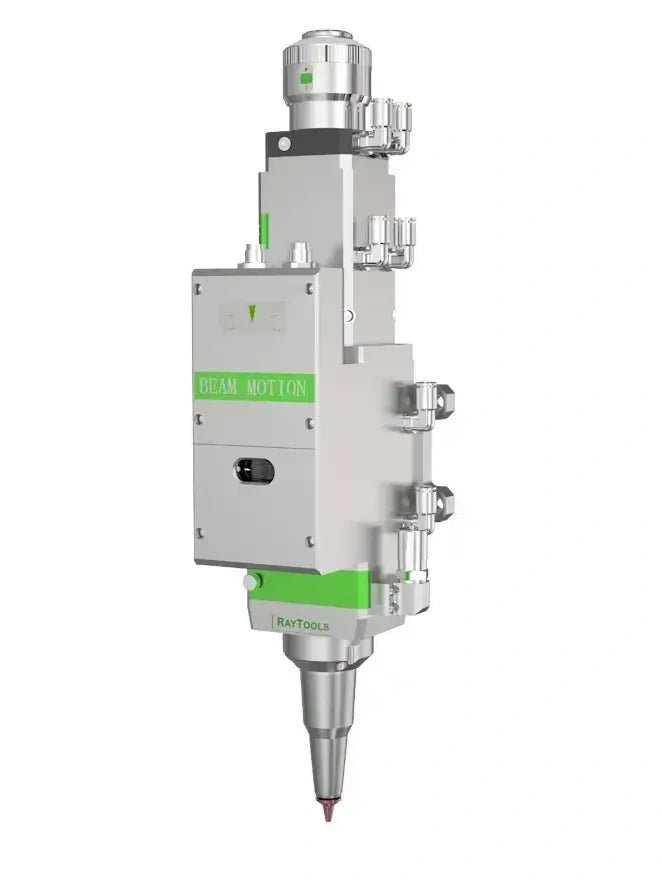

Automatic Laser Cutting Head-Raytools-BM110 (3000W)

Launched by RAYTOOLS AG in 2019, the BM110 series is a fiber optic cutting head featuring automatic focus. This product has a built-in motor drive unit which adjusts the position of the focus lens automatically, ranging within 24mm.

Cutting-Edge Design & Performance

This innovative product includes a built-in motor drive unit that automatically adjusts the position of the focus lens in a range of 24mm through a linear mechanism. This feature allows users to set continuous focus, facilitating rapid piercing of thick plates and automatic cutting of different thicknesses and materials.

The BM110 series is equipped with a composite lens group of D30 to integrate the beam. The design of the optics and water cooling is optimized to enable the laser head to operate stably at high power for extended periods.

Features & Specifications

• Superior Design: The cutting head features an optimized optical configuration and efficient airflow design, significantly improving cutting quality and efficiency.

• Automatic Focus: With a focus range of -12 to +10mm and a focusing accuracy of 0.05 mm, the automatic focus feature reduces manual intervention.

• Multiple Protective Lenses: The addition of protective lenses for collimation effectively safeguards the collimation lens.

• Drawer-Type Mirror Holder: This feature allows for quick and easy replacement of protective lenses.

• High Adaptability: Equipped with various fiber interfaces such as QBH, QD, and G5, the cutting head is adaptable to various mainstream lasers.

• Clear Aperture: 28mm

• Auto-Focusing: Range: -12mm to +10mm; Speed: ≤170mm/s; Acceleration: ≤10m/s²; Accuracy: ≤0.05mm

• Protective Lens: Collimation protection: φ24.91.5mm; Focusing protection: φ27.94.1mm

• Auxiliary Gas Pressure: ≤30bar

• Weight: ~5.0kg

• Nozzle Specifications: Single layer, Double layer, Non-standard

• Nozzle Orifice Diameter: Range from 0.8mm to 5.0mm.

The BM110 Series Fiber Optic Cutting Head ensures optimal cutting performance with its cutting-edge technology and design. For quality, precision, and adaptability, choose the BM110 series.

DOWNLOAD FOR CONSUMABLE LIST

Details:

Dimension:

Eletrical drawing:

Selection Guide of Raytools Fiber Laser Cutting Head

Feature
Model	BT240S	BT210S	BM109	BM111	BMH109-3D	BM115-2D
Power	3KW	1.5KW	1.5KW	3.3KW	2KW	6KW
Collimating Lens	100mm	100mm	75/100mm	30mm	28mm	37mm
Focusing Lens	125/155/200mm	125mm	125/150mm	125/155/200mm	100/150mm	100/200mm
Auto Focusing	X	X	✓	✓	✓	✓
Interface	QBH	QBH	QBH	QBH	QBH	-
Protective windows	24.9x1.5/27.9x4.1mm	24.9x1.5/27.9x4.1mm	24.9x1.5/27.9x4.1mm	24.9x1.5/27.9x4.1mm	24.9x1.5/27.9x4.1mm	37x1.6/37x7mm
Zoom	Pulse Zoom	Pulse Zoom	Pulse Zoom	Pulse Zoom	Analog Zoom	EtherCAT Zoom
Match System	FSCUT2000/3000	FSCUT2000/3000	FSCUT2000/3000	FSCUT2000/3000	FSCUT4000	FSCUT4000

Packing weight: 10kg; Packing size:510*320*280mm
