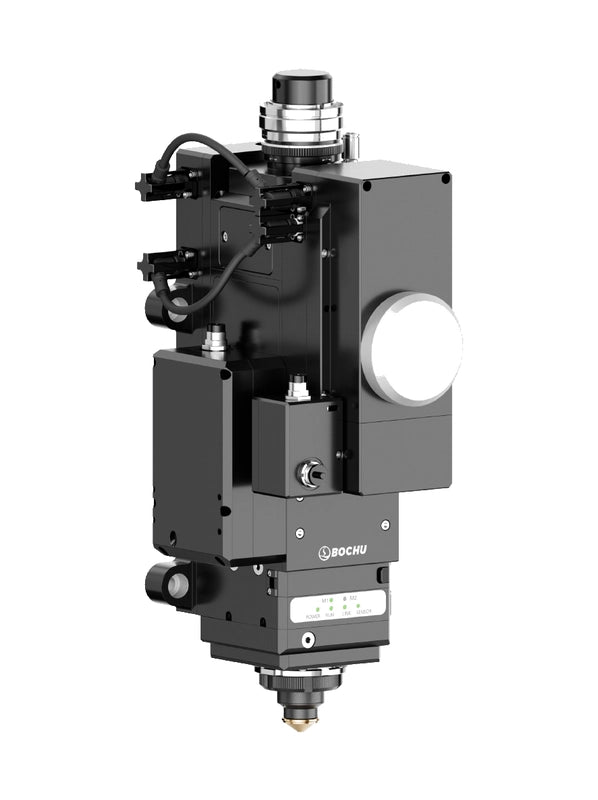

BOCHU BOCI BLT9 Series Dual Spot Auto-Focusing Laser Cutting Heads (30, 40KW)
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
BOCHU BOCI BLT9 Series Dual-Spot Auto-Focusing Laser Cutting Heads (30, 40KW)
The BOCHU BOCI BLT9-MA series is designed for high-power flat fiber laser cutting applications that require dual-spot beam control, automatic centering support, molten pool monitoring, and stable cutting performance across different material thicknesses.
Model Update Mapping
| Previous model | Current model | Action |
|---|---|---|
| BLT682MA | BLT980MA | Add 30KW BLT9-MA dual-spot model to this product page. |
| BLT6102MA | BLT9100MA | Update the existing 40KW BLT9-MA dual-spot model. |
Best For
- High-power flat fiber laser cutting systems requiring a BOCHU intelligent cutting head.
- Applications that need variable beam shape control for both thin and thick materials.
- Machine builders, retrofit projects, and replacement projects using BLT9-MA series heads.
- Service teams confirming focal length, fiber interface, optical configuration, and consumables before ordering.
Compatibility
Confirm laser source power, fiber interface, focusing and collimation configuration, cooling circuit, gas setup, control signal, automatic centering wiring, and consumables before ordering. The updated configurations support Q+ and ADD fiber interfaces.
Model Selection
| Model | Power | Focal length | Fiber interface | Beam magnification |
|---|---|---|---|---|
| BLT980MA | 30KW | 200&350mm | Q+ / ADD | M=2.0 / M=3.5 |
| BLT9100MA | 40KW | 200&400mm | Q+ / ADD | M=2.0 / M=4.0 |
The model, power, focal length, and interface follow the BOCHU selection table. Detailed mechanical and optical parameters are taken from the BLT980MA and BLT9100MA V1.1.0 product manuals.
Specification Table
| Parameter | BLT980MA | BLT9100MA |
|---|---|---|
| Laser wavelength | 1060-1090nm | 1060-1090nm |
| Laser power | 30KW | 40KW |
| Fiber interface | Q+ / ADD | Q+ / ADD |
| Beam magnification | M=2.0 / M=3.5 | M=2.0 / M=4.0 |
| Maximum focus adjustment range | -40 to +35mm (M=2.0); -190 to +60mm (M=3.5) | -50 to +45mm (M=2.0); -200 to +70mm (M=4.0) |
| NA | Max. 0.14 at Fc100 | Max. 0.14 at Fc100 |
| Centering adjustment range | +/-2.3mm | +/-2.3mm |
| Focusing acceleration | 7.5m/s2 | 7.5m/s2 |
| Cutting gas interface | 10mm tube, max. 25bar / 2.5MPa | 10mm tube, max. 25bar / 2.5MPa |
| Nozzle cooling gas interface | 6mm tube, max. 5bar / 0.5MPa | 6mm tube, max. 5bar / 0.5MPa |
| Flip gas interface | 6mm tube, 3-7bar / 0.3-0.7MPa | 6mm tube, 3-7bar / 0.3-0.7MPa |
| Water cooling interface | 8mm tube, max. 5bar / 0.5MPa, min. 2.0L/min | 8mm tube, max. 5bar / 0.5MPa, min. 2.0L/min |
| Operating temperature | +5 to +55 deg C | +5 to +55 deg C |
| Storage temperature | -25 to +55 deg C | -25 to +55 deg C |
| Dimensions | 457.17 x 180.7 x 231.5mm (Q+ version) | 477 x 180.7 x 231.5mm (Q+ version) |
| Weight | Approx. 14.8kg (Q+ version) | Approx. 15.1kg (Q+ version) |
Before Ordering
- Product images are for reference only. Confirm the selected model and configuration before ordering.
- Confirm whether your machine requires additional installation accessories, cables, nozzles, protective lenses, ceramic rings, or technical documents.
- Confirm automatic centering, PWE wiring, grounding, gas, and water-cooling requirements according to the product manual.
FAQ
Which old models do these replace?
BLT682MA updates to BLT980MA, and BLT6102MA updates to BLT9100MA.
What should I confirm before ordering?
Confirm the exact laser power, fiber interface, focal configuration, control system compatibility, cooling and gas setup, automatic centering wiring, and required consumables before purchase.
