GY-FLC200MG 200W Air-Cooled Pulsed Laser Cleaning Machine
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Portable 200 W pulsed cleaning • built-in air cooling
Overview

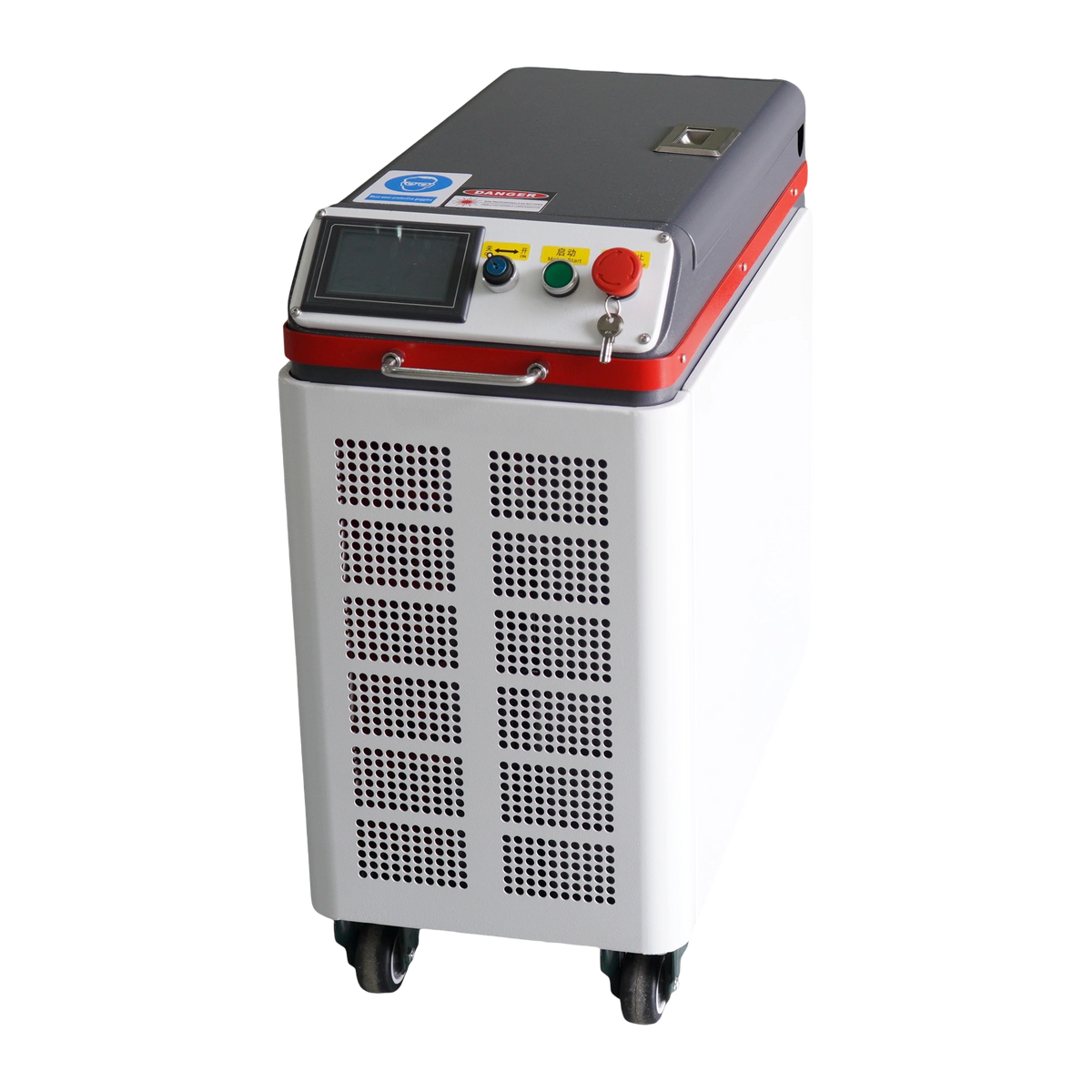

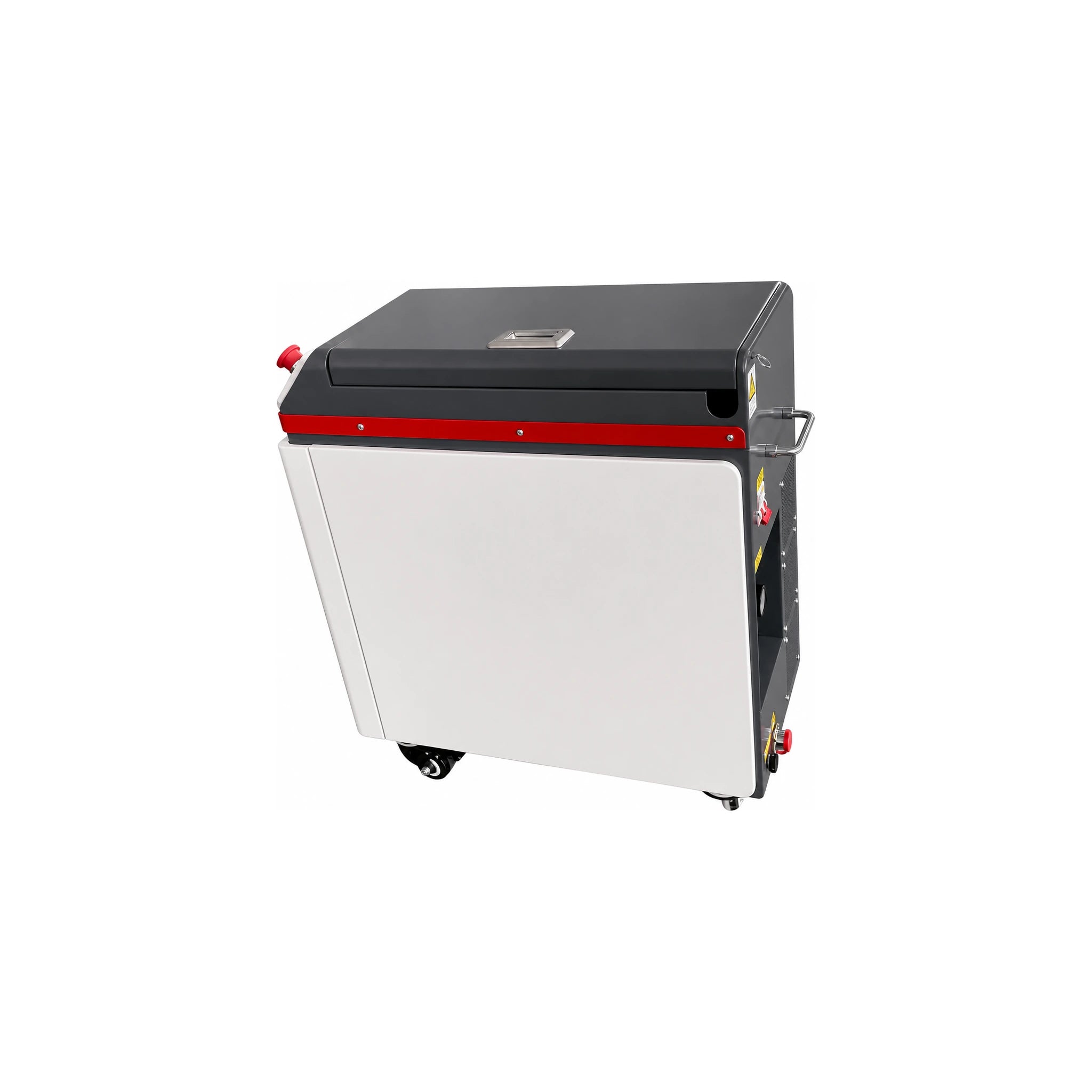

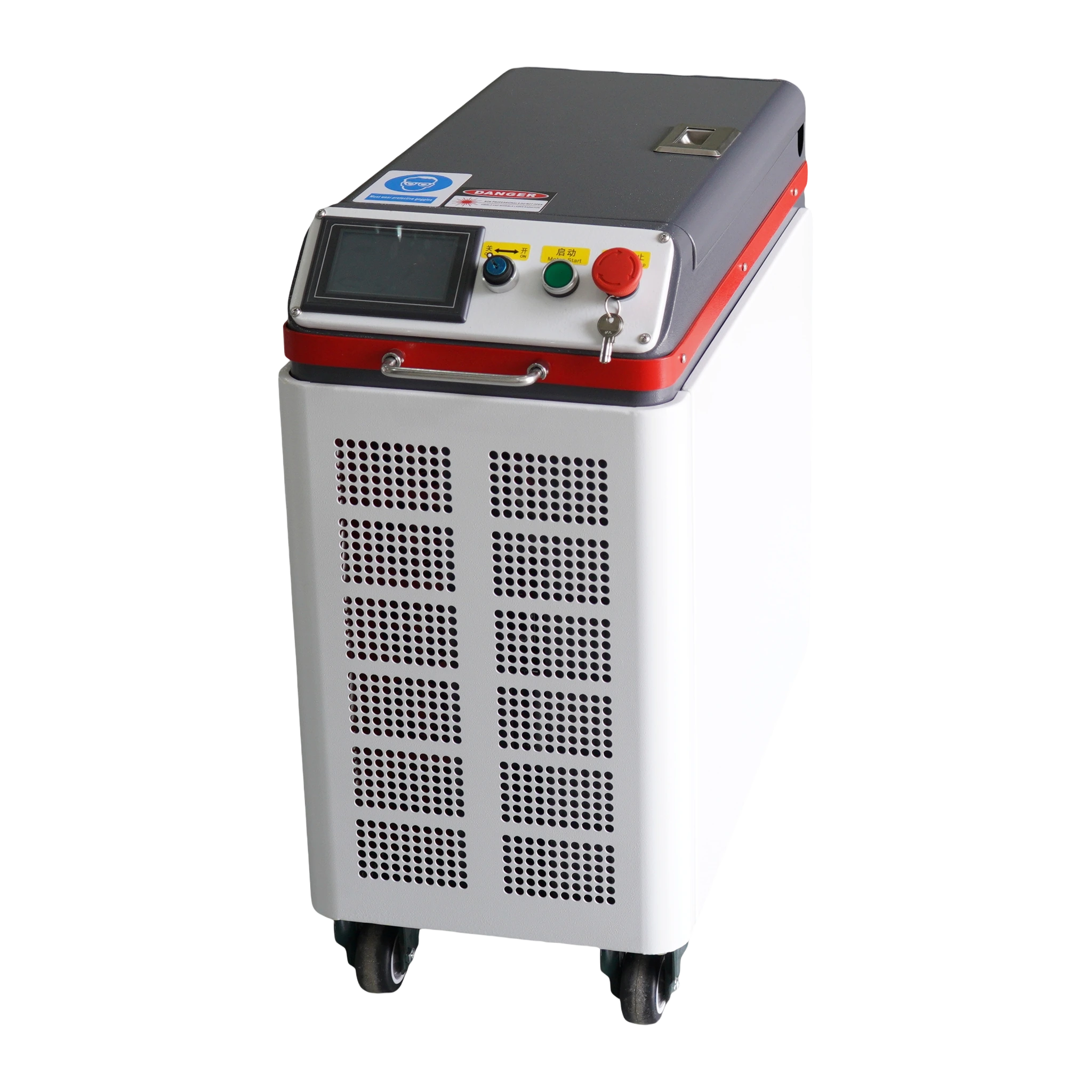

GY-FLC200MG 200W Air-Cooled Pulsed Laser Cleaning Machine
The GY-FLC200MG is a compact handheld pulsed laser cleaning system for controlled removal of rust, oxide, oil, paint, resin, coatings and other surface contamination. Its non-contact process minimizes mechanical stress on the base material, while the integrated air-cooling system eliminates the need for a separate water chiller.
A dual-axis cleaning head supports 13 scan patterns and an adjustable scan range up to 300 mm. The touchscreen stores up to 100 custom process groups and includes a preset process library for faster setup across recurring jobs.
Best For
- Precision rust, oxide and coating removal on metal parts.
- Mold cleaning and localized maintenance where abrasives or chemicals are undesirable.
- Weld preparation, surface activation and pre-treatment before coating or bonding.
- Mobile service work and production areas that benefit from air cooling and a compact wheeled cabinet.
- Manual cleaning or integration with a robot for automated operation.
Core Advantages
- 200 W pulsed output: adjustable 2-500 ns pulse width and up to 5 mJ single-pulse energy support controlled surface treatment.
- Air-cooled architecture: no external water chiller, cooling water or routine chiller maintenance is required.
- Wide process window: 1-4,000 kHz frequency adjustment, 0-100% power control and scan width up to 300 mm.
- 13 scan patterns: line, rectangle, circle, sine, spiral, free-form and other dual-axis modes suit different geometries and cleaning strategies.
- Lightweight handheld head: less than 0.9 kg excluding the optical head, helping reduce operator fatigue.
- Reusable process recipes: 100 configurable parameter groups plus a built-in process library reduce repeated setup.
Technical Specifications
| Parameter | GY-FLC200MG |
|---|---|
| Laser Type | Pulsed fiber laser cleaning system |
| Average Laser Power | ≥200 W |
| Maximum Single-Pulse Energy | 5 mJ |
| Pulse Width | 2-500 ns adjustable |
| Frequency Range | 1-4,000 kHz adjustable |
| Power Adjustment | 0-100% |
| Power Stability | <5% |
| Wavelength | Approximately 1,064 nm or 1,080 nm, depending on the configured laser source |
| Cooling Method | Air cooled |
| Scan Range | 0-300 mm, continuously adjustable; dual-axis head with 13 scan patterns |
| Standard Field Lens Focal Length | 210 mm |
| Approximate Depth of Focus | 5 mm |
| Fiber Length | 5 m |
| Cleaning Head Weight | <0.9 kg, excluding optical head |
| Operation | Handheld or automated |
| Power Supply | Single-phase 220 V AC ±10%, 50/60 Hz; 110 V / 50 Hz customization available |
| Machine Power Consumption | ≤1,500 W |
| Operating Temperature | 0-40°C |
| Operating Humidity | ≤80% |
| Machine Size (L × W × H) | Approximately 550 × 260 × 528 mm |
| Machine Weight | Approximately 38 kg |
| Packed Size (L × W × H) | Approximately 700 × 340 × 790 mm |
| Packed Weight | Approximately 50 kg |
Specifications are based on the supplied GY-FLC200MG manuals. The configured laser source, field lens, input voltage and included accessories must be confirmed in the quotation and technical agreement.
Scanning & Control
- Thirteen selectable scanning modes include line, two rectangle modes, circle, sine, spiral, free mode, ring, rotation, triangle, rotating circle, rotating line and linear rotating circle.
- Adjustable power, frequency, pulse width, scan speed, scan width, scan height, scan count and fill spacing.
- Up to 100 custom process groups for repeatable production settings.
- Built-in process library can recall starting parameters for common tasks such as rust and oil removal.
- Touchscreen status and alarm monitoring for the laser, temperature, distance sensing and other configured safety inputs.
Standard Package
| Item | Specification | Quantity |
|---|---|---|
| Laser Cleaning Machine | GY-FLC200MG | 1 |
| Laser Cleaning Head | GY-QCDXYP200 | 1 |
| Process Database | Built in | 1 set |
| Laser Safety Glasses | SD-3 | 1 pair |
| Protective Lenses | 48 × 3 | 5 pieces |
| Lens Cleaning Set | Cleaning consumables | 10 pieces |
Package contents can vary with destination requirements and the confirmed sales contract. Please verify all accessories before ordering.
Safety
Class 4 laser product. Invisible laser radiation can cause irreversible eye and skin injury. Operation requires a controlled laser-safe area, trained personnel, suitable certified protective eyewear for the configured wavelength, reliable protective grounding and compliance with local laser-safety regulations.
Never direct the cleaning head toward people or highly reflective mirror-like surfaces. Inspect the fiber, cables, connectors and protective lens before every use, and follow the supplied manual and site risk assessment.
Cleaning Demonstration
Before Ordering
- Send the material, contamination type, cleaning area and required throughput.
- Confirm the destination voltage and plug standard.
- Confirm the required field lens, scan range, fiber length and automation interface.
- Request a sample test when surface finish or substrate sensitivity is critical.
- Confirm the final laser source, package contents, shipping terms, warranty and lead time in the quotation.
FAQ
Does this machine need a water chiller?
No. The GY-FLC200MG uses built-in air cooling, so it does not require an external water chiller.
What can it remove?
Typical applications include rust, oxide, oil, paint, resin, coatings, plating layers and other adherent surface contaminants. Suitability and speed depend on the material, layer thickness and required finish.
Can it be automated?
Yes. The cleaning head can be used manually or integrated with a compatible robotic system. Automation requirements should be confirmed before ordering.
Is the 300 mm scan range standard for every setup?
The system supports a scan range up to 300 mm with the appropriate field lens. The standard manual lists a 210 mm focal-length lens; confirm the supplied lens and usable range in the quotation.
Are the listed cleaning parameters guaranteed?
No single parameter set suits every surface. Final settings depend on the laser source, material, contamination, lens, working distance and required finish. Start with validated parameters and perform a sample test.
