Relfar FWH30-P10C Handheld Pulse Cleaning Head | 300W Pulse Laser Cleaning

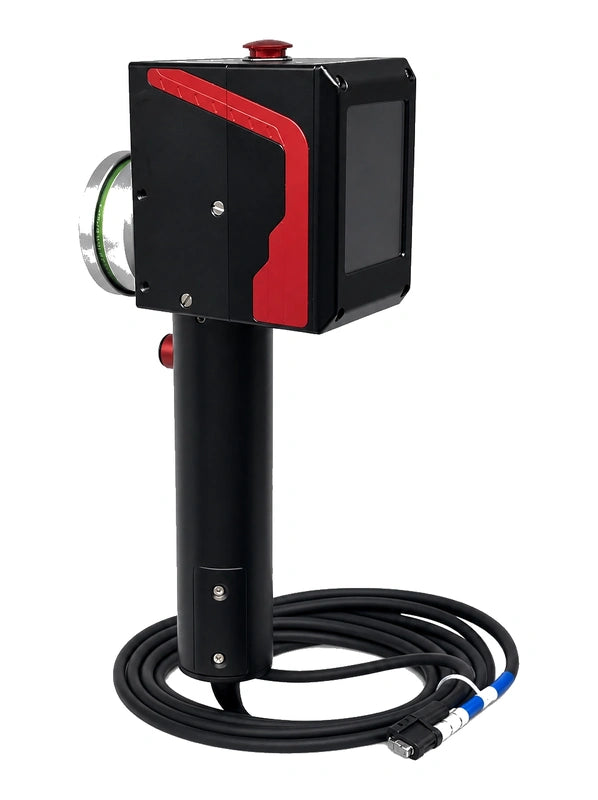

Relfar FWH30-P10C is a handheld pulse cleaning head for industrial buyers and integrators building compact pulse laser cleaning systems. It is designed around a QCS Ø17 fiber interface, F254 field lens, 145 x 145 mm scan range, and a dual-screen pulse cleaning control platform.
The product package includes the handheld pulse cleaning head, 7-inch HMI, laser pulse cleaning system M2, power supplies, display cable, and protective lenses. Use this page to confirm model fit, optical interface, gas requirements, control wiring, manuals, and ordering notes before purchase.
Best For
- Pulse laser cleaning systems that need a handheld cleaning head with integrated scanning, distance monitoring, and HMI control.
- Machine builders and retrofit projects where QCS Ø17 fiber interface, F254 field lens, and 145 x 145 mm scan range must be confirmed before integration.
- Industrial maintenance or surface preparation workflows where the final laser, process, safety, and gas configuration will be validated by the integrator.
Key Features
- Pulse cleaning head platform: FWH30-P10C handheld pulse cleaning head for pulse laser cleaning applications up to 300W pulse laser rated power.
- Large scan field: F254 field lens with 145 x 145 mm scanning range and scanning speed up to 30000 mm/s.
- Dual-screen control: 7-inch HMI plus a 2.8-inch head display for system status, XY mirror alarm, distance monitoring, and selected parameter adjustment.
- Process parameter library: The HMI supports scan count, laser power, frequency, pulse width, scanning speed, scan length, scan width, and multiple waveform settings.
- System monitoring: HMI status area monitors air pressure alarm, chiller alarm, laser alarm, XY mirror alarm, WiFi/cloud status, and safe working distance.
- Modular cleaning support: Fixed-focus support module and side-blowing module help positioning, scanning, and dust removal during cleaning.
- Optional marking workflow: The manual describes a mobile app marking function for metal marking when the system is configured for marking use.
Compatibility
- Fiber interface: QCS Ø17, without isolator.
- Laser wavelength range: 1070 ± 20 nm.
- Rated power: ≤300W / pulse.
- Gas connection: 6 mm gas tube. Common gases include compressed air with oil/water filtration, argon, and nitrogen.
- Electrical supply: Mainboard and galvanometer require external DC 24V and DC ±15V power inputs. Follow the manual wiring tables before operation.
- Consumables note: The annual consumables package for this new model is being prepared by after-sales and is not listed as a selectable package yet.
Specifications
Technical Specifications
| Item | FWH30-P10C |
|---|---|
| Product name | Handheld pulse cleaning head |
| Model | FWH30-P10C |
| Fiber interface | QCS Ø17, without isolator |
| Wavelength range | 1070 ± 20 nm |
| Rated power | ≤300W / pulse |
| Field lens specification | F254 mm |
| Scanning range | 145 x 145 mm |
| Scanning speed | ≤30000 mm/s |
| Auxiliary gas pressure | ≤1 MPa |
| Effective clear aperture | Ø8 |
| Weight | 1.0 kg |
Packing List
| Item | Specification | Quantity |
|---|---|---|
| Handheld pulse cleaning head | FWH30-P10C | 1 pc |
| 24V power box | S-60-24 | 1 pc |
| 15V power supply box | HF60W-D-L | 1 pc |
| 7-inch display screen | Pulse Cleaning, RDWelder-DWPro | 1 pc |
| Display screen connection cable | 1.5 m black cable, 6-pin male connectors on both ends | 1 pc |
| Laser pulse cleaning system M2 | H08-841A | 1 pc |
| Protective lenses | D48 x 3 | 4 pcs |
Downloads
Before Ordering
Confirm pulse laser compatibility, QCS Ø17 fiber interface, field lens range, scan range, gas setup, power supply, control wiring, and safety interlocks before ordering.
Safety reminder: Remove the field lens dust cover before laser output. Wear certified fiber laser protective eyewear and follow the laser source, electrical, gas, and site safety requirements before operation.
Keep the product clean and prevent coolant, condensate, dust, or other foreign matter from entering the cavity. Optical lens replacement and inspection should be performed in a clean environment.
The annual consumables package for FWH30-P10C is still being prepared by after-sales. It will be added separately once the consumables list is finalized.
FAQ
Is this the same type of product as the Relfar welding heads?
No. FWH30-P10C is a handheld pulse cleaning head, not a wire-feed laser welding head. Confirm the pulse laser source, optical connector, control system, and cleaning process requirements before purchase.
Does this listing include the annual consumables package?
Not yet. The FWH30-P10C consumables package is being prepared by after-sales and will be added after the consumables list is finalized.
Are manuals or wiring details available?
Use the Downloads section for the English product manual. The manual includes product parameters, installation notes, maintenance guidance, HMI operation, wiring tables, and interface definitions.
