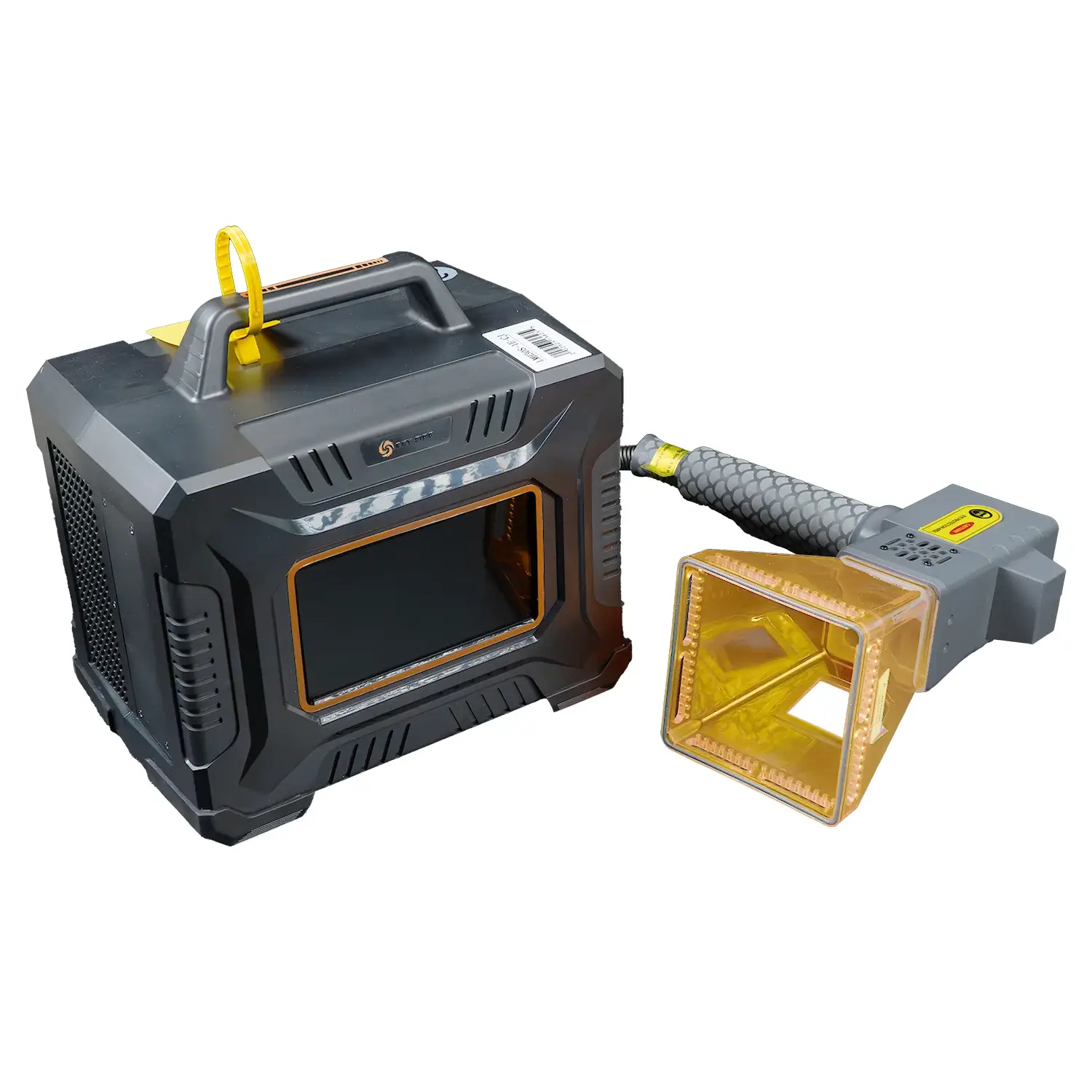

SF-Markair Portable Air-Cooled Laser Marking Machine
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Markair Portable Air-Cooled Laser Marker offers lightweight, cordless marking with built-in touchscreen control. Supporting both handheld and desktop use, it’s ideal for makers and gift production, delivering precision and flexibility anywhere you need it.
Testing marking of different materials
Product Features
Lightweight and Portable:
Weighing around 6kg, this compact machine features a fixed focus design, ideal for marking workpieces that are difficult to move.
Built-in System with Touchscreen Operation:
Equipped with a Linux-based system, no external computer is needed. Intuitive touchscreen control makes operation easy and efficient.
Multiple Operation Options:
Supports external keyboard, mouse, barcode scanner, and PC control for flexible operation modes.
Optional Lithium Battery Power:
Available with an optional lithium battery pack, allowing cordless operation for true on-the-go marking.
Dual-Mode Design:

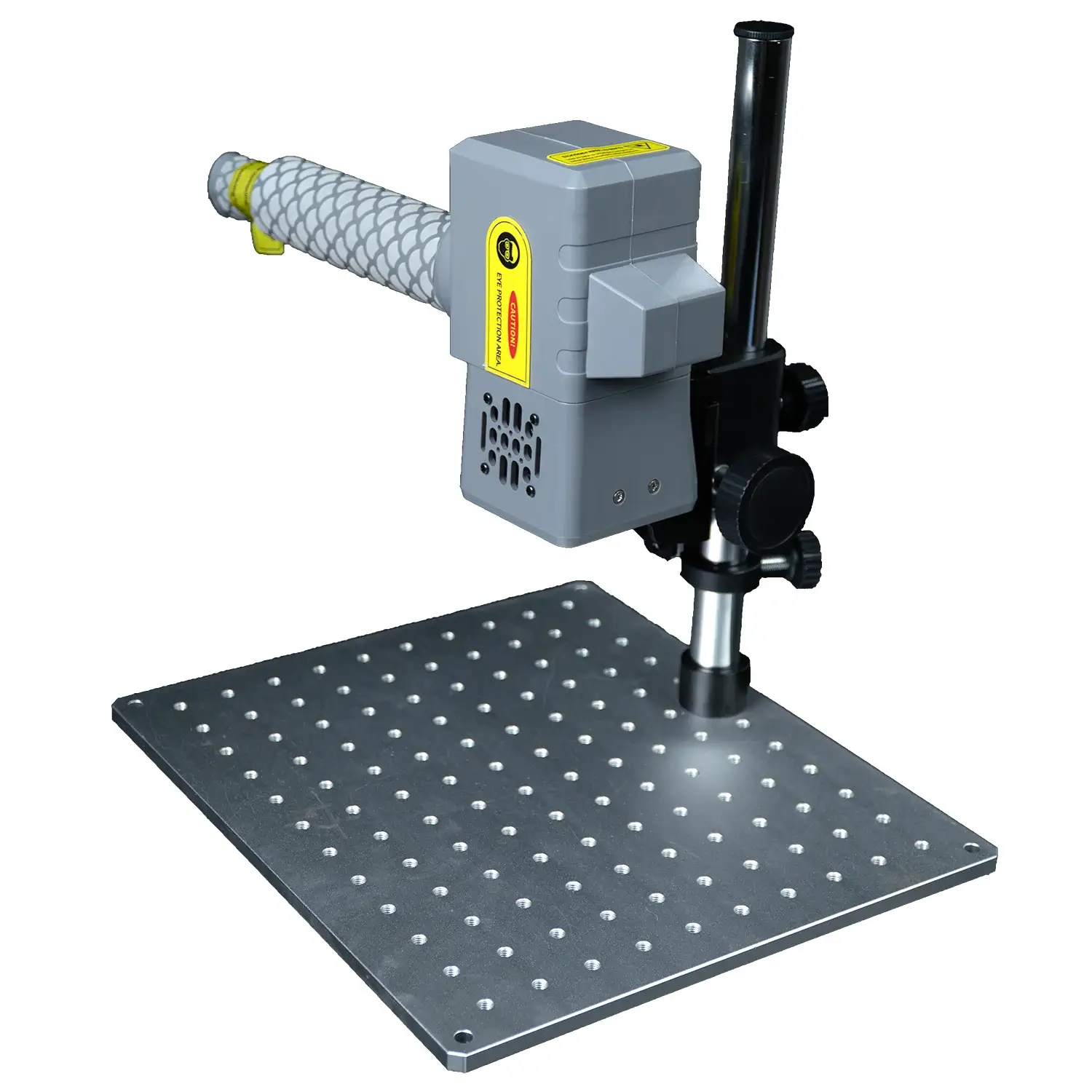

Can be paired with a desktop marking stand—use it as a benchtop machine by removing the marking gun, perfect for small batch processing; reinstall the marking gun for handheld use, enabling mobile marking. Two functions in one machine.
Product unboxing
Why Choose This Laser Marker?
Product Parameters
Product Parameter List |
The Second Generation Handheld Portable Laser Marking Machine |
Laser Power |
20W/30W/50W |
Wavelength |
1064 nm |
Maximum Pulse Energy |
≥1.4mJ |
Marking Method |
High precision dual dimensional scanning method |
Cooling System |
air cooling |
Operating System |
Linux System |
Operation Interface |
Embedded laser intelligent scanning system, embedded 7-inch capacitive screen |
APP |
Support |
Special Features |
Reserve secondary development interface, software can be developed for secondary integration with ERP and MES systems |
Marking Machine Lifting Platform |
Optional |
Interface Configuration |
Dual USB ports, single network port, power interface, built-in Bluetooth WIFI |
Can be connected to an external keyboard, mouse, QR code scanner, monitor, etc |
Circumscribed |
Interface |
Built-in Bluetooth WIFI |
Frequency Adjustment Range |
45-170KHz (adjustable) |
Marking and Engraving Type |
Integration of dot matrix and vector (both dot matrix and vector can be printed) |
Scope |
100×100mm (50×50mm/150×150mm optional) |
Length |
1.75m |
Locate Mode |
Red light positioning |
Support Marking Types |
Text, QR codes, vector graphics, digital dates, bitmap, geometric shapes, etc. Can be combined and edited, supporting hand drawn, spiral line, and Lissajous curve drawing |
Support Importing Formats |
jpg, png, bmp, svg, plt, dxf, Excel, TXT, barcode/QR code, etc |
Cleaning Mode |
Supports 8 scanning modes |
Anti-replay Function |
Support |
System Language |
Chinese, English, Japanese, Russian, Italian, Spanish, Portuguese, Traditional Chinese, Korean, French, Arabic, German, Polish, Czech, Thai, etc |
Minimum Line Width |
0.02mm |
Repeatability |
0.003mm |
Laser Lifespan |
About 100,000 hours |
Barcode/QR Code |
CODE25, CODE39, CODE49, CODE93, CODE128, EAN13, EAN128, PDF417, CODBAR, UPCA, UPCA_CHK, UPCE_CHK, DataMatrix, QRCode, etc., support barcode size, barcode level can be set, support point mode, circle mode, rectangular mode, etc |
Supply Voltage |
90V-240V, 50/60Hz |
Power Supply Mode |
Plug in/battery (supports use while charging) |
Battery Capacity |
≥14500AH |
Maximum Power Consumption |
200W |
Fully Charged and Powered Continuous Working Hours |
4h |
Charging Time |
≤2h |
Adaptive Temperature |
0-40°C |
Ambient Relative Humidity |
30-85 RH (No condensation) |
Machine Net Weight |
Lithium battery model: 9-12kg Power supply model: 7-10kg |
External Dimensions |
Host: 314×213×290mm Handheld gun head: 145×290×250mm |
Package Size |
450×450×450mm |
Package Weight |
6kg |
