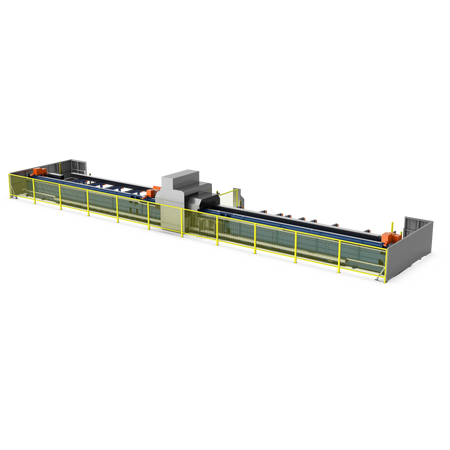

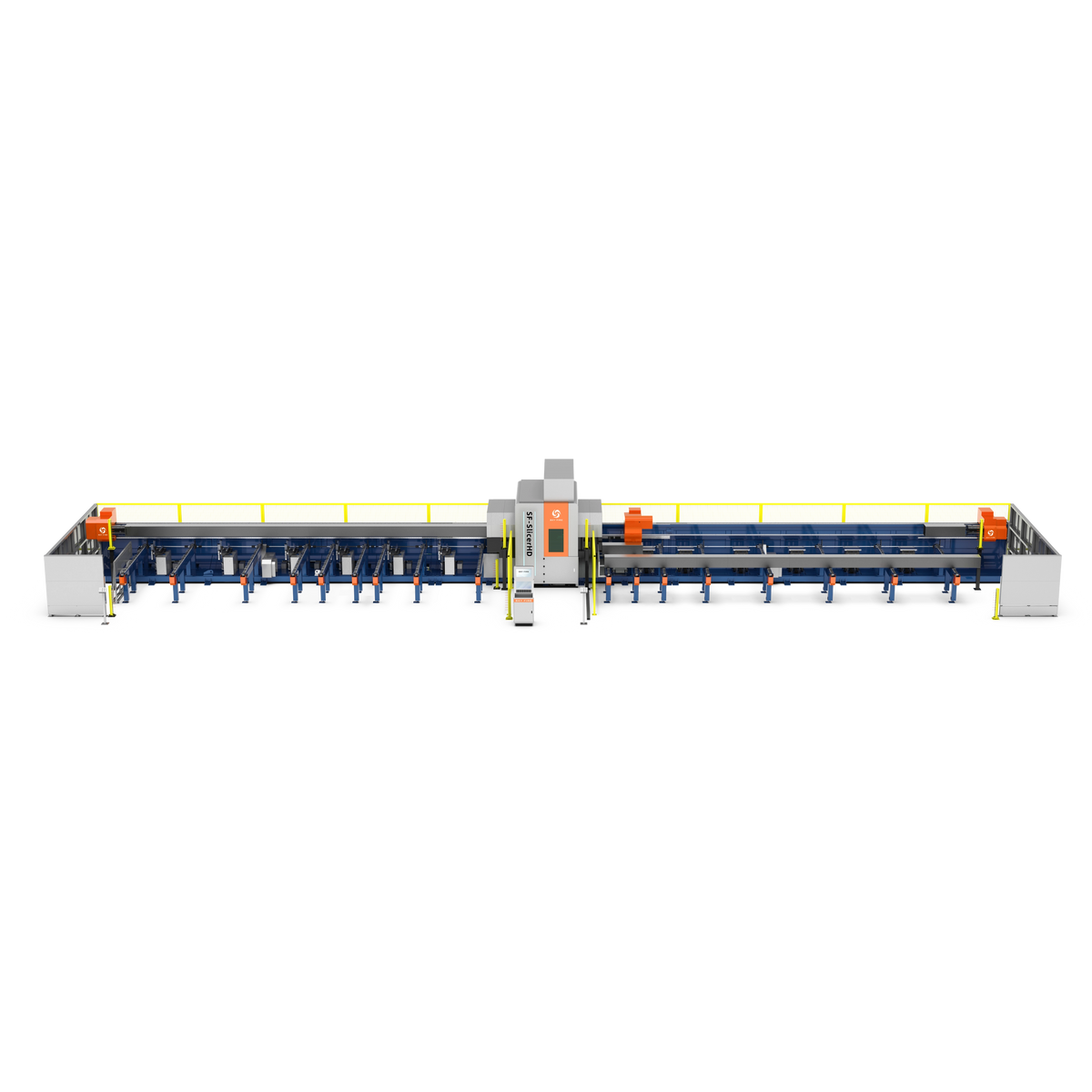

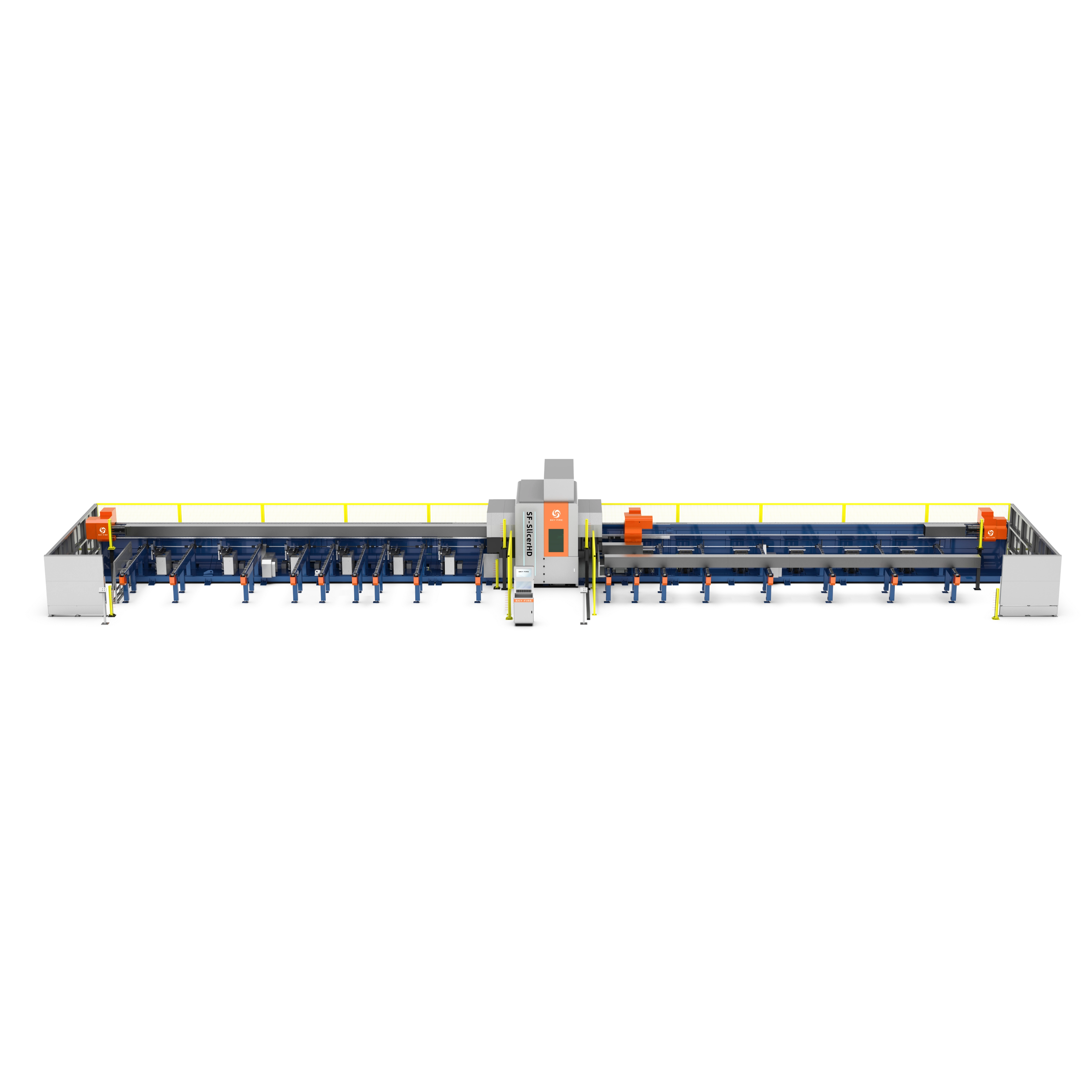

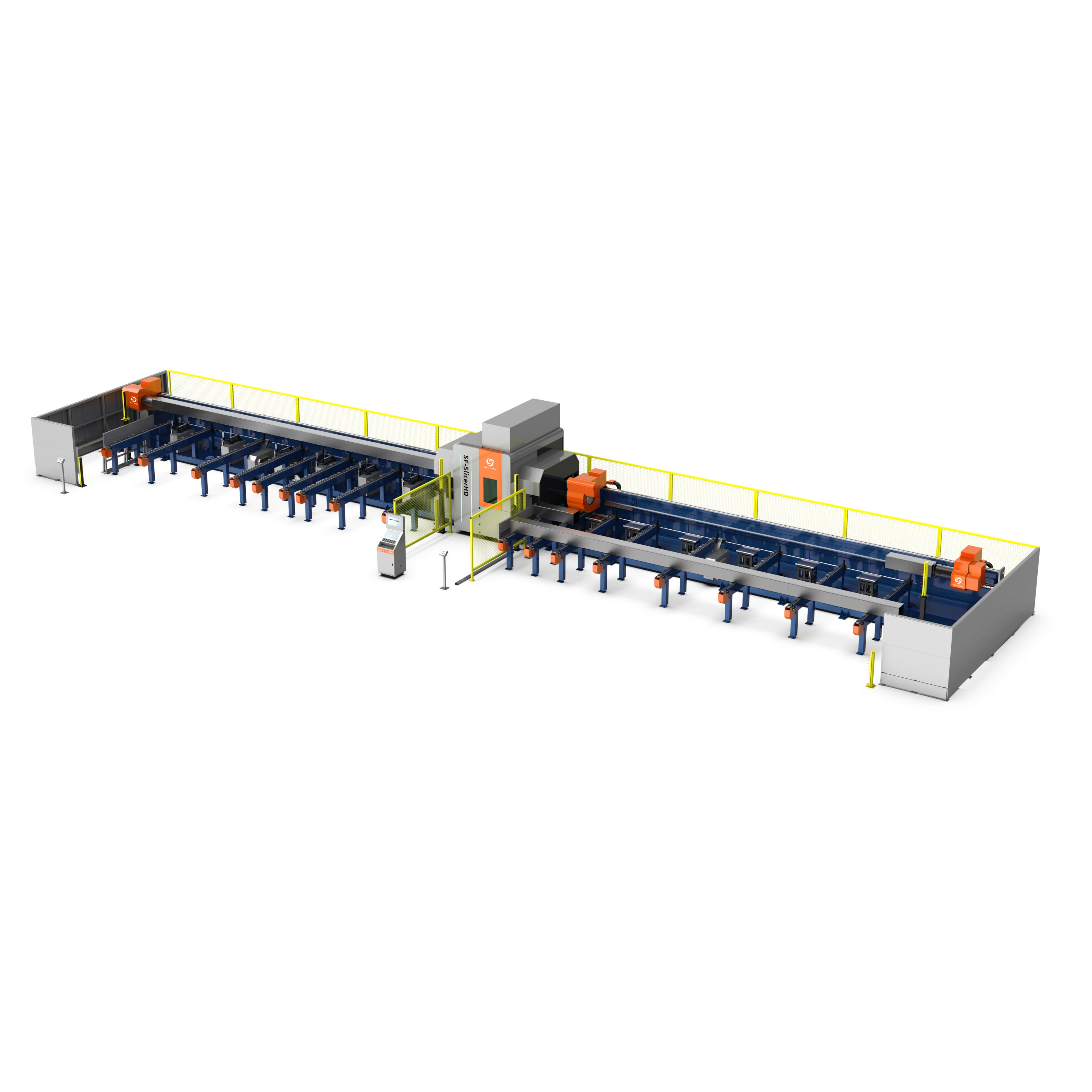

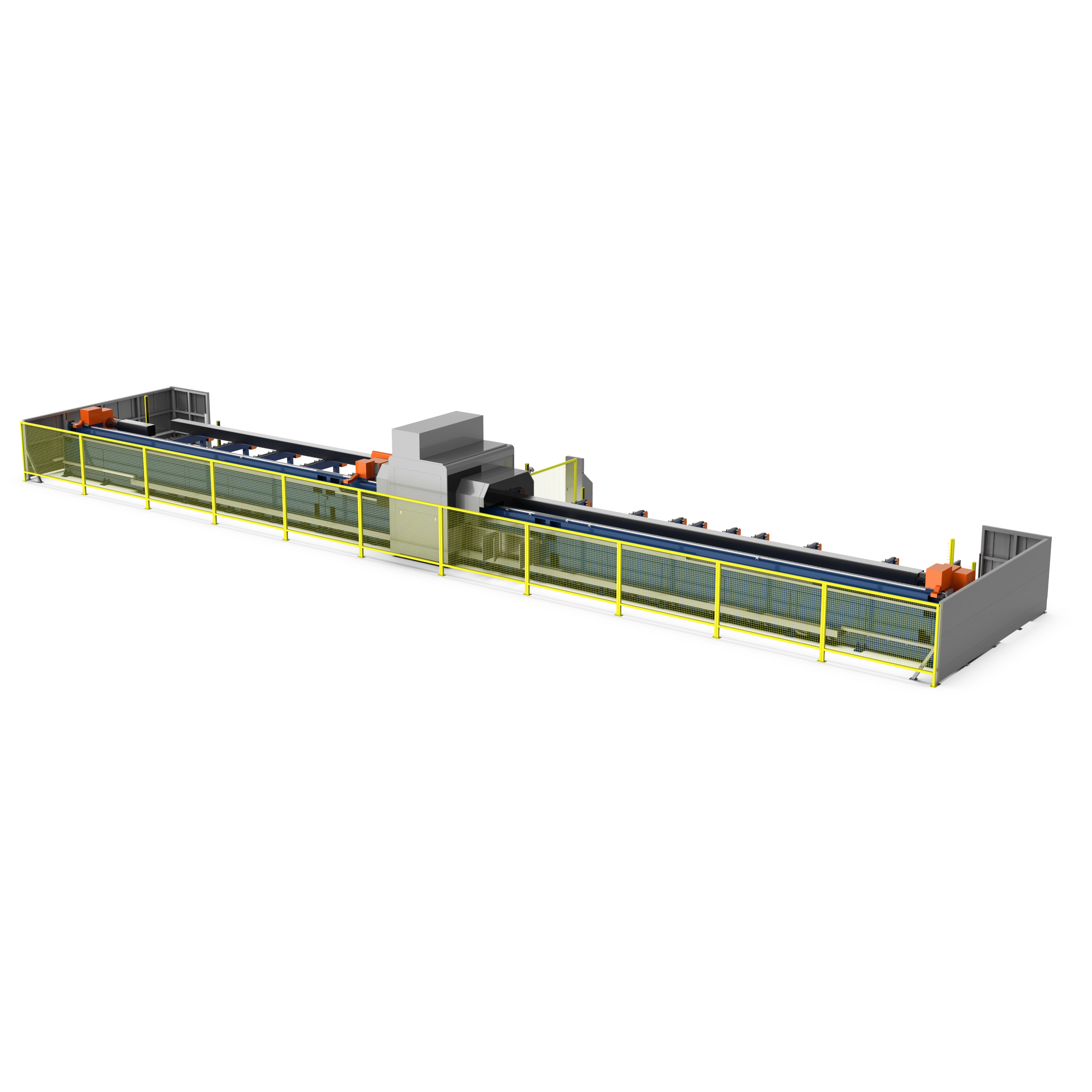

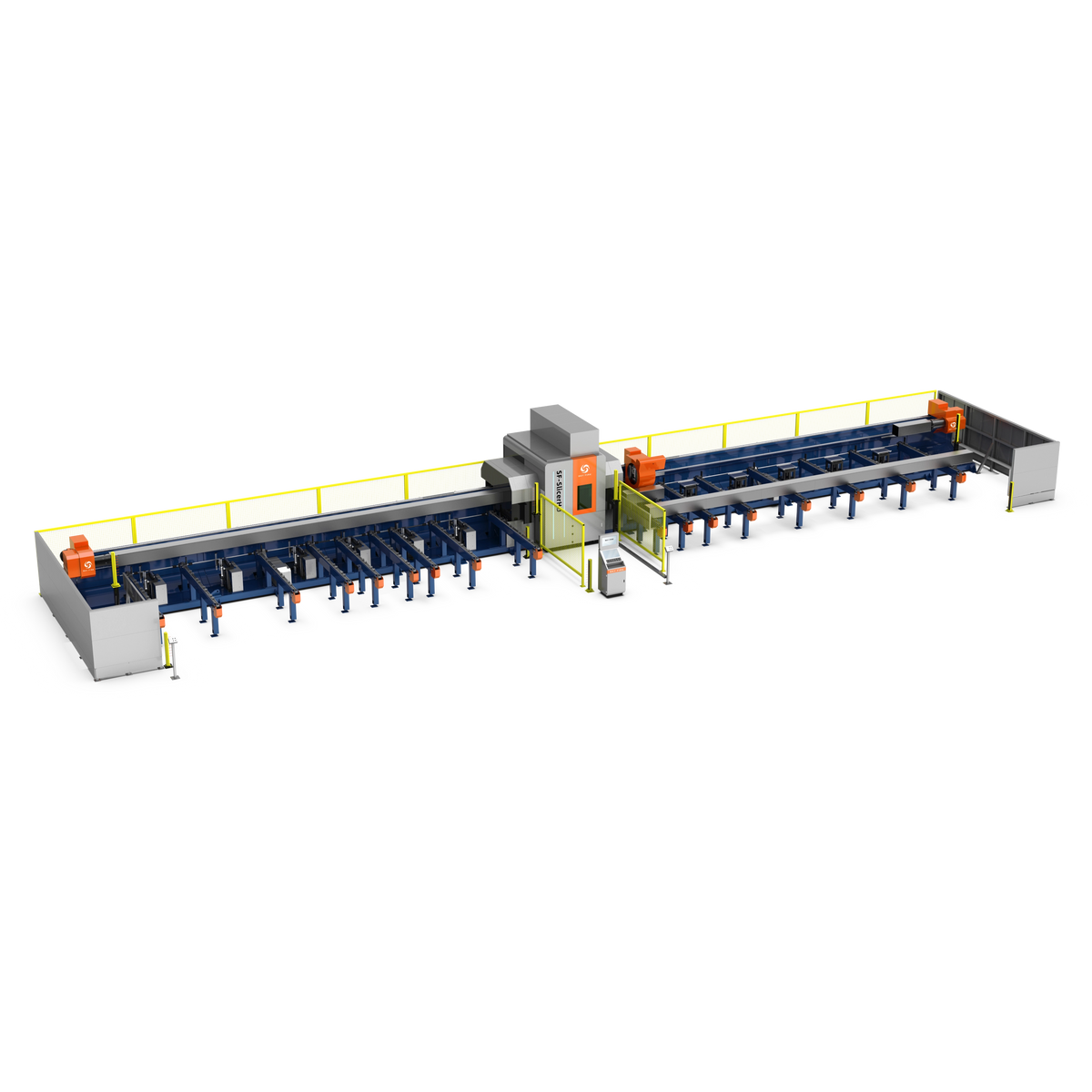

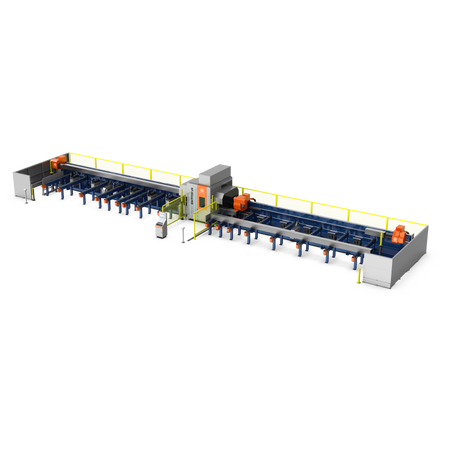

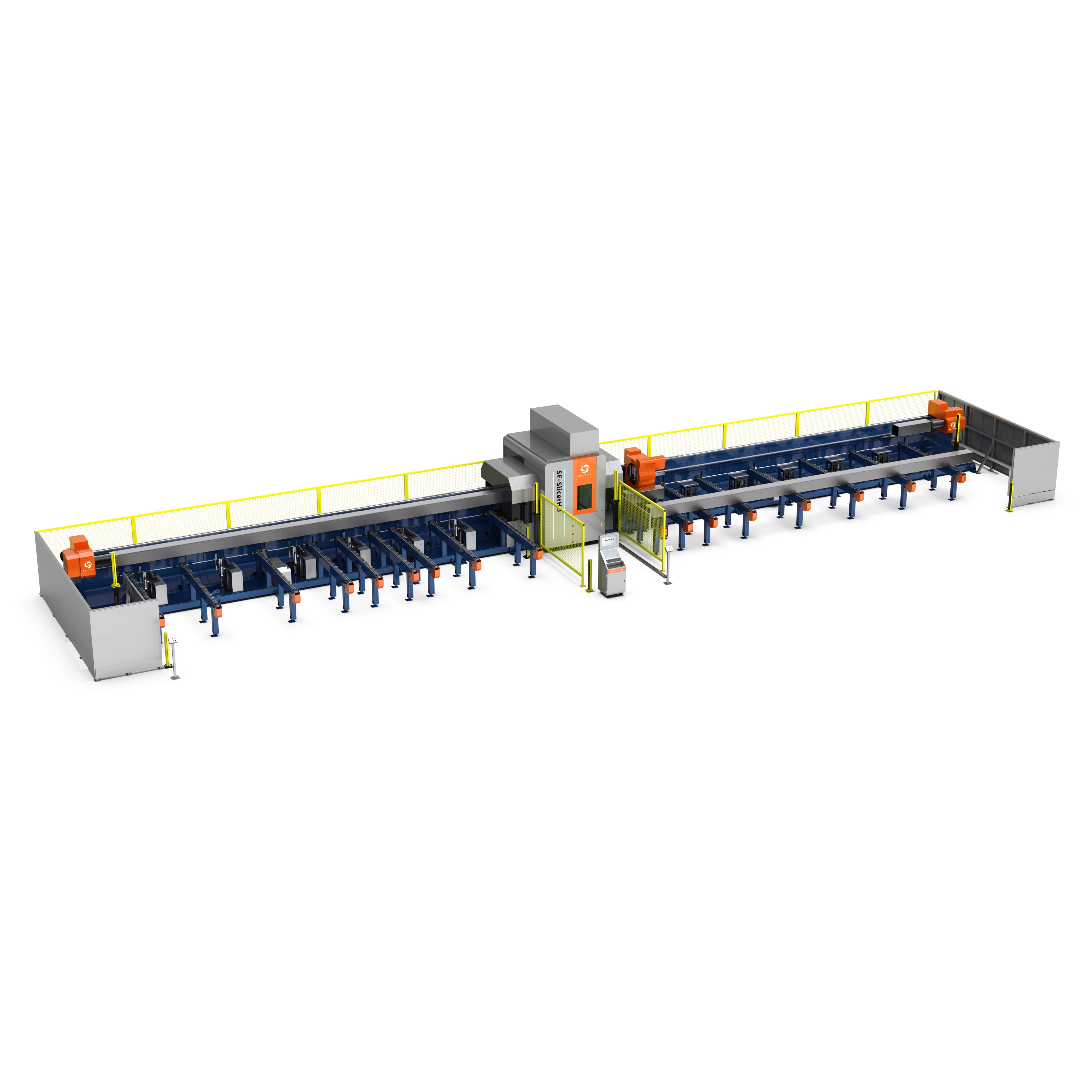

SF-SlicerHD Heavy-Duty Fiber Laser Tube Cutting Machine for Large Pipes & Structural Profiles
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Engineering selection required
Final configuration and price are confirmed after engineering review.
Heavy-duty tube and profile processing
Overview
SF-SlicerHD Heavy-Duty Fiber Laser Tube Cutting Machine for Large Pipes & Structural Profiles
SF-SlicerHD is a large-format fiber laser cutting system engineered for heavy pipes and structural profiles. It is available in Three-Chuck and Four-Chuck configurations. Its heavy-duty chuck architecture, high-capacity material handling and profile-aware cutting control support demanding fabrication workflows from loading through finished-part discharge.
Available with 6 kW or 12 kW laser power, the machine handles round, square and rectangular tube together with H/I beams, channel sections and angle steel. Straight cutting and optional bevel cutting let fabricators complete more preparation work in a single setup.
Three-Chuck Configuration
Available for projects requiring a three-chuck layout. Submit the profile type, dimensions, length, weight and loading requirements so the appropriate configuration can be confirmed.
Ask About Three-Chuck →Four-Chuck Configuration
A heavy-duty four-chuck layout designed for stable support and accurate positioning of large, heavy workpieces.
Ask About Four-Chuck →Best For
- Heavy machinery, shipbuilding, structural construction and infrastructure fabrication.
- Energy-pipeline and agricultural-equipment manufacturers processing large tube and profiles.
- Long-material production requiring up to 12 m loading and 12 m unloading capability.
- Cutting applications that benefit from automated feeding, weld-seam recognition and profile alignment.
Core Advantages
- Four-chuck heavy-duty platform: designed for stable support and accurate positioning of large, heavy workpieces.
- Wide profile capability: processes round tube, square tube, rectangular tube, H/I beams, channel sections, equal angles and unequal angles.
- Up to 12 m material flow: configurable loading and unloading for long profiles and production-scale work.
- Vision-assisted processing: supports cut-off detection, collision avoidance and weld-seam identification for selecting the preferred cutting side.
- Efficient small-feature cutting: a compact Y-axis improves speed on dense small contours and supports flying-cut workflows.
- Profile-aware control: alignment and offset compensation help improve cutting accuracy while reducing front-end scrap and manual setup time.
Loading, Support and Part Handling
The heavy-duty loading system is engineered for multiple tube and profile shapes. Programmable automatic feeding works with floating supports to stabilize the material during processing.
- Configurable semi-automatic loading for 4–12 m material.
- Finished parts up to 500 mm can tilt into the scrap trolley.
- Finished parts from approximately 1.35 m can discharge through the chain unloading system.
- Pneumatic support and tilting assist workpiece cut-off and unloading.
- Forklift-compatible scrap trolley simplifies removal of short parts and remnants.
Straight and Bevel Cutting
SF-SlicerHD supports straight cutting as standard and can be configured for bevel cutting. The bevel module supports multiple bevel forms, angles up to ±45°, and combined cut-and-bevel processing for weld preparation.
| Laser Power | Tube Type | Straight Cut — Carbon Steel | Straight Cut — Stainless Steel | Straight Cut — Aluminum Alloy | Bevel Cut — Carbon Steel | Bevel Cut — Stainless Steel |
|---|---|---|---|---|---|---|
| 6 kW | Round | 16 mm | 10 mm | 10 mm | 14 mm | 8 mm |
| 6 kW | Square | 12 mm | 8 mm | 8 mm | 10 mm | 6 mm |
| 12 kW | Round | 20 mm | 16 mm | 14 mm | 18 mm | 12 mm |
| 12 kW | Square | 14 mm | 11 mm | 10 mm | 12 mm | 8 mm |
Cutting capacity is application-dependent. Final capability varies with material grade, tube geometry, gas, optics and process settings and is confirmed during quotation.
Processing Range
| Material Type | Manual Loading | Semi-Automatic Loading |
|---|---|---|
| Round tube | Ø100–520 mm | Ø100–500 mm |
| Square tube | 100–520 mm | 100–500 mm |
| Rectangular tube | Side range 100–520 mm | Side range 100–500 mm |
| H/I beam | 100–520 mm | 100–500 mm |
| Channel section | 100–520 mm | 100–500 mm |
| Equal angle | 100–520 mm | 100–500 mm |
| Unequal angle | 100–200 mm per leg | 100–200 mm per leg |
Supported dimensions depend on profile geometry and loading configuration. Recommended wall thickness is above 2 mm. Submit drawings or sample files for application review.
Technical Specification
| Parameter | SF-SlicerHD |
|---|---|
| Laser Power | 6 kW or 12 kW |
| Maximum Loading Length | 12 m |
| Maximum Unloading Length | 12 m |
| Semi-Automatic Loading Length | 4–12 m |
| Maximum Loading Quantity | 3 or 4 pieces, configuration-dependent |
| Maximum Travel Speed | 50 m/min |
| Maximum Acceleration | 0.6 G |
| Maximum Rotation Speed | 50 rpm |
| Positioning Accuracy | ±0.1 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Maximum Single-Tube Loading Capacity | 1,000 kg |
| Power Supply | 380 V, 50 Hz |
| Approximate Machine Weight | 35 t |
Control, Cutting Head and Components
- EtherCAT control: BOCHU FSCUT5000 platform with TubesT-compatible nesting and toolpath workflow.
- Laser source: Raycus 6 kW or 12 kW configuration.
- Cutting head: BLT-series straight-cut or bevel-cut configuration with closed-loop monitoring, gas-pressure monitoring, protective-lens temperature monitoring, anti-collision protection and smart piercing.
- Motion system: Inovance servo system with HIWIN linear guides and YYC rack-and-pinion transmission.
- Cooling: Tongfei industrial water chiller.
- Monitoring: process camera and operating-area monitoring support.
Safety and Dust Management
- Dual-layer light-curtain protection around the material-handling area.
- Interlocked lifting front door with protective viewing glass.
- Dual-loop safety circuitry and gas run-out alarm.
- Wide-opening extraction inlet for concentrated fume and dust capture.
- Standalone operator panel with process monitoring for easier access and maintenance.
Configure Your SF-SlicerHD
Laser power, loading layout, unloading length, straight or bevel cutting, and component selection are configured around your workpieces and production targets.
Request a quote: send the material type, profile drawings, wall thickness, maximum length, maximum weight, required cut features and expected production volume. Our engineering team will confirm the appropriate configuration and project quotation.
FAQ
Is SF-SlicerHD available with three or four chucks?
Yes. Three-Chuck and Four-Chuck configurations are available. Share the workpiece profile, dimensions, length, weight and loading requirements so the suitable configuration can be confirmed.
What laser power is available?
SF-SlicerHD is available with 6 kW or 12 kW laser power. The appropriate power depends on the material, profile geometry, wall thickness, required cut features and production target.
Which tube and structural profiles can it process?
The processing range covers round, square and rectangular tube, H/I beams, channel sections, equal angles and unequal angles within the applicable dimensional range.
What loading and unloading lengths are supported?
The machine supports up to 12 m loading and 12 m unloading. Semi-automatic loading is configurable for material lengths from 4 to 12 m.
Can SF-SlicerHD perform bevel cutting?
Yes. Straight cutting is standard, and an optional bevel-cut configuration supports multiple bevel forms, angles up to ±45°, and combined cut-and-bevel processing.
What is the maximum single-tube loading capacity?
The maximum single-tube loading capacity is 1,000 kg. Final suitability must also account for profile geometry, dimensions, length and the selected loading configuration.
