SHINHO FR-100 / FR-101 Fiber Recoater for Protecting Fusion Splice Points After Recoating
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Overview

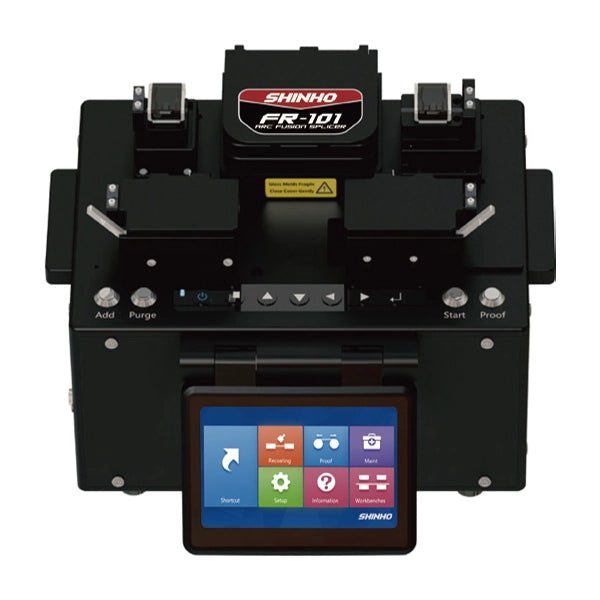

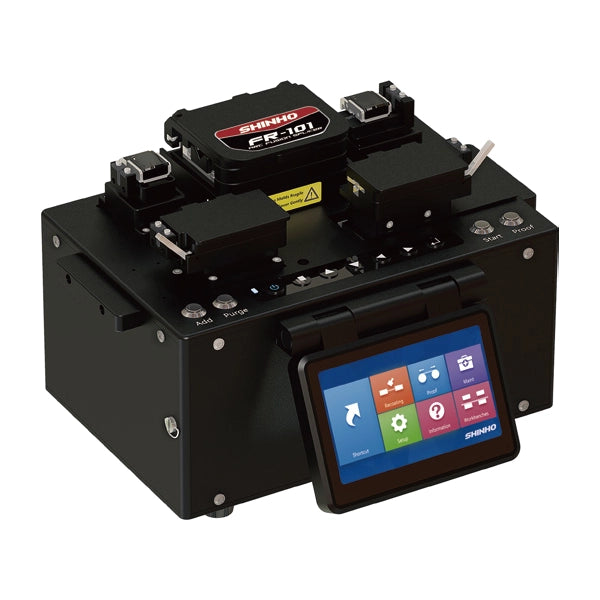

SHINHO FR-100 / FR-101 Fiber Recoater | For Protecting Fusion Splice Points After Recoating
The SHINHO FR-100 / FR-101 Fiber Recoater is designed for recoating optical fiber after stripping, fusion splicing, or specialty fiber processing. Its main purpose is to restore protective coating around the splice point, helping protect the fusion area and improve long-term reliability after repair or production work.
The FR-100 and FR-101 are used in the same application scenario: recoating after fusion splicing to protect the splice point. Both models can be used for this purpose, and their basic function is similar. The FR-101 is the newer version, while the FR-100 is the older version. The internal core component brands are slightly different, but both models remain practical options for fiber recoating work.
A key difference is that the FR-101 includes a proof tester, while the FR-100 does not. The proof testing function can help verify fiber strength after recoating and may improve recoating consistency and uniformity in applications where tensile control is important.
Best For
- Recoating fiber after fusion splicing.
- Protecting the splice point after fiber laser repair.
- Specialty fiber assembly and laboratory processing.
- Applications requiring UV acrylate recoating.
- FR-101: Customers who need proof testing after recoating.
Key Features
- Designed to restore protective coating after fusion splicing.
- Helps protect the splice point and improve repair reliability.
- FR-100 and FR-101 are used for the same recoating application.
- FR-101 is the newer model; FR-100 is the older model.
- Both models can be used for standard fiber recoating work.
- FR-101 includes proof testing; FR-100 does not include proof testing.
- Proof testing can help verify fiber strength and support more consistent recoating quality.

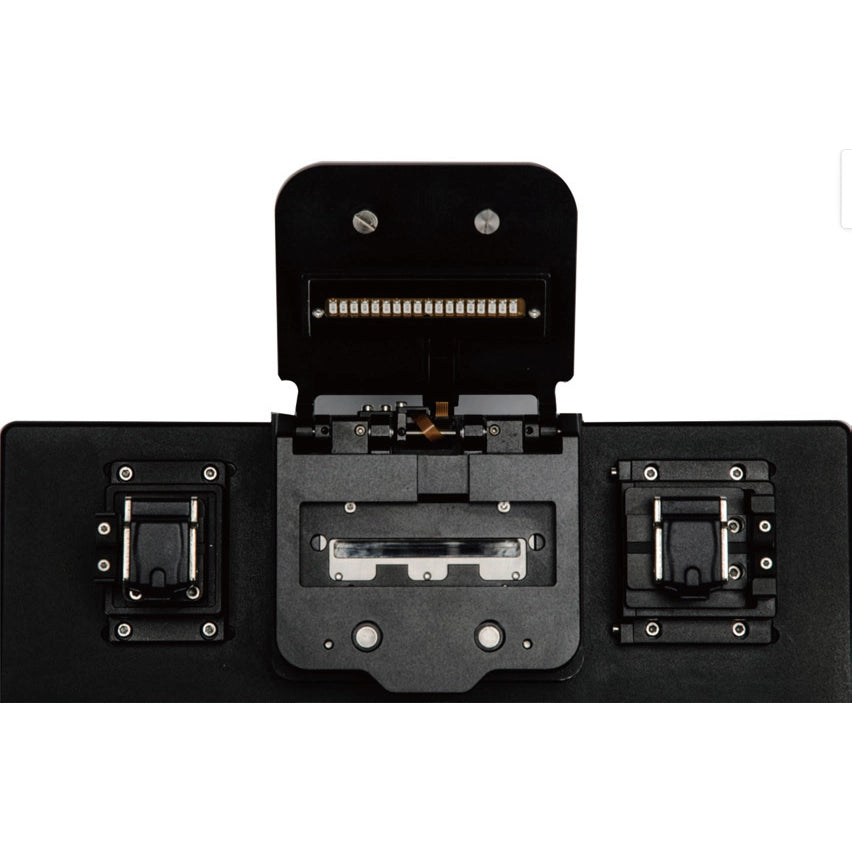

- Quartz glass mold design.
- Recoat diameters available in 195 um, 255 um, 280 um, 450 um, 600 um, and 670 um.
- 4-50 mm recoat length with +/-20% accuracy.

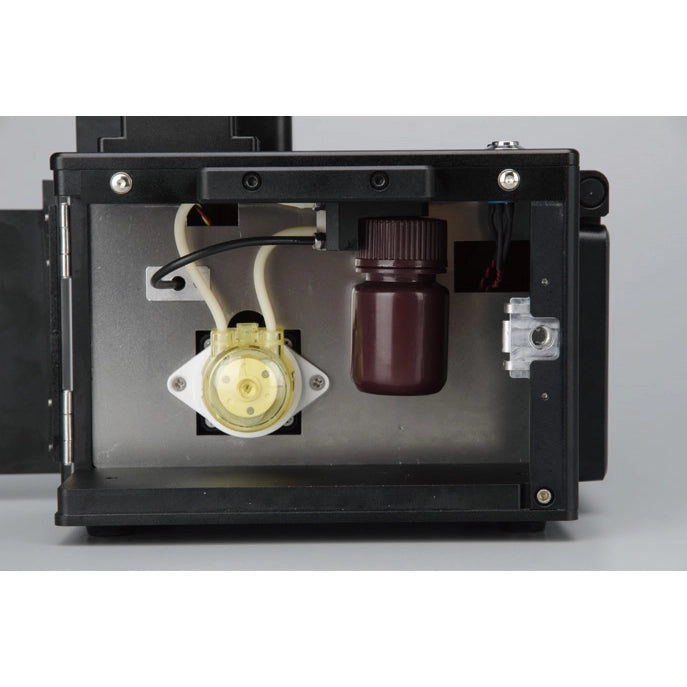

- Manual and automatic glue injection.
- Upper and lower LED UV curing lamps with adjustable power and time.
Model Selection Guide
| Model | Main Use | Key Difference | Recommendation |
|---|---|---|---|
| FR-100 | Fiber recoating after fusion splicing | Older model, no proof tester | Suitable when standard recoating is enough and proof testing is not required |
| FR-101 | Fiber recoating after fusion splicing with proof testing | Newer model, includes proof tester | Recommended when tensile verification or better recoating consistency is required |
Specifications
| Item | FR-100 | FR-101 |
|---|---|---|
| Fiber Material / Number | Single-core quartz optical fiber | |
| Recoating Mold | Quartz glass | |
| Recoating Diameter | 195 um, 255 um, 280 um, 450 um, 600 um, 670 um | |
| Recoating Length | 4 mm-50 mm, accuracy +/-20% | |
| Applicable UV Resin | Acrylate | |
| UV Curing Lamp | Upper and lower LED lamps, adjustable power and curing time | |
| Glue Injection Method | Manual and automatic | |
| Recoating Programs | 35 groups | |
| Proof Test Programs | - | 40 groups |
| Other Features | Built-in LED lighting for observing the resin level; user-replaceable recoating molds | |
| Data Storage | 1,000 recoating and proof test records | |
| Proof Tester | - | Equipped |
| Proof Test Range | - | Approx. 0.2-2.0 kgf |
| Power Supply / Battery Capacity | External adapter, input: AC100-240V, 50/60Hz; output: DC13.5V / 5200mAh | |
| Dimensions / Weight | 170 mm (L) x 250 mm (W) x 176 mm (H) / 4.3 kg | 170 mm (L) x 250 mm (W) x 170 mm (H) / 4.8 kg |
Product Package
| Name | Model | Quantity |
|---|---|---|
| Fiber Recoater | FR-100/FR-101 | 1 pc |
| Recoating Mold | FR-100-MOLD-280 | 1 set |
| Power Cord | ACC-97 | 1 pc |
| Power Adapter | ADC-97 | 1 pc |
| USB Drive | - | 1 pc |
| Tools | HEX-01/02/03 | 1 set (M3/M2.5/M2) |
| Quick Reference Guide | FR-100-ORG-100 | 1 copy |
FAQ
What are FR-100 and FR-101 used for?
Both models are used for recoating fiber after fusion splicing, helping restore protection around the splice point.
What is the main difference between FR-100 and FR-101?
FR-101 includes proof testing, while FR-100 does not. FR-101 is also the newer model.
Do both models perform the same basic recoating function?
Yes. Both FR-100 and FR-101 can be used for fiber recoating after splicing. The main difference is the proof testing function and internal component configuration.
Why choose FR-101?
Choose FR-101 when proof testing, tensile verification, or better recoating consistency is required.
FR-100: 170mm(L)×250mm(W)×176mm(H)/4.3kg; FR-101: 170mm(L)×250mm(W)×170mm(H)/4.8kg
