SHINHO S-27 Series LDF Specialty Fiber Fusion Splicer for Large Diameter Fiber Splicing
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Overview

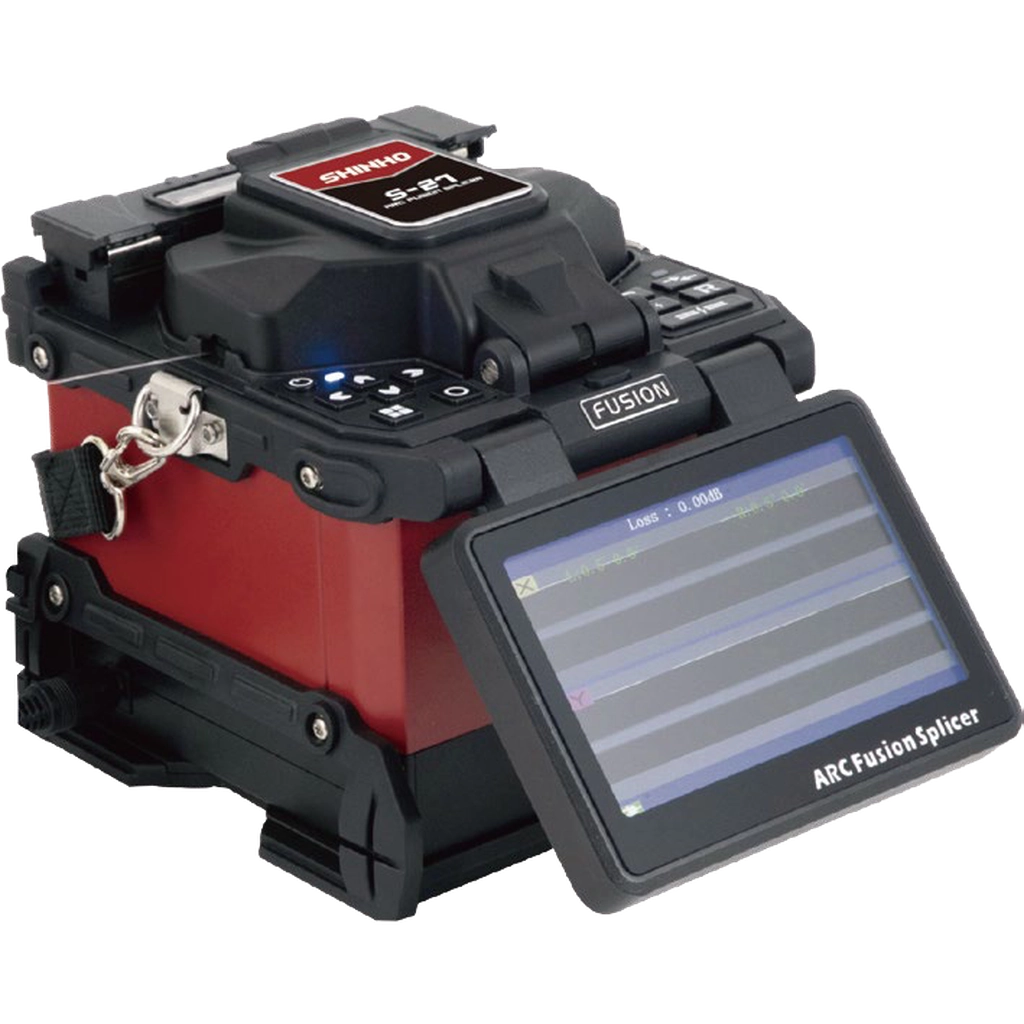

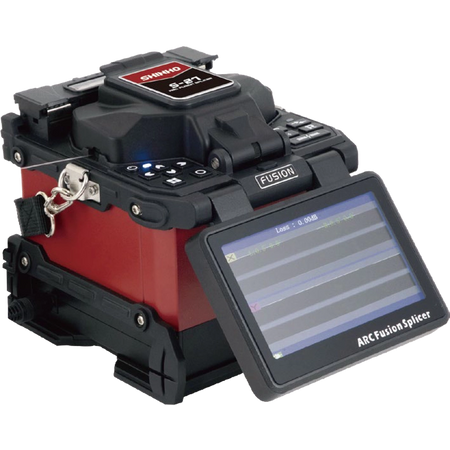

SHINHO S-27 Series LDF Specialty Fiber Fusion Splicer | Compact Large Diameter Fiber Splicing System
The SHINHO S-27 Series LDF Specialty Fiber Fusion Splicer is designed for large diameter fiber splicing in fiber laser service, specialty fiber processing, production support, and laboratory repair workflows. It uses clad-to-clad alignment, dual high sensitivity cameras, a 5 inch HD color LCD monitor, manual or automatic splicing modes, and a detachable lithium battery for bench or field use.
This listing combines the S-27-250 and S-27-400 models into one product page. Choose S27-250 for 125-250 um cladding applications or S27-400 for 125-400 um cladding applications. Please confirm fiber cladding diameter, coating diameter, holder requirements, and sleeve size before ordering.
Model Options
| Model | Cladding Diameter | Coating Diameter |
|---|---|---|
| S27-250 | 125-250 um | 250-800 um |
| S27-400 | 125-400 um | 250-800 um |
Best For
- Large diameter fiber splicing for fiber laser repair and production benches.
- Specialty optical fiber assembly where compact size and portability are important.
- Service teams that need manual and automatic fusion and heating operation.
- Workflows that require repeatable clad-to-clad alignment and stored fusion records.
Key Features
- Two model options for large clad diameter fiber: S27-250 and S27-400.
- Clad-to-clad alignment with accurate fiber positioning.
- Typical splice time less than 23 seconds, based on the product brochure.
- Typical heating time 30 seconds.
- Manual or automatic operation modes for both splicing and heating.
- Dual high sensitivity cameras with 5 inch HD color LCD monitor.
- 120X magnification in X or Y view, or 60X in X and Y dual view.
- Stores up to 8,000 fusion records according to the product brochure.
- USB 2.0 port for software upgrade and record export.
- Detachable 5200 mAh lithium battery, rated for typical 300 splicing and heating cycles.
- Rugged body design with water-resistant, dust-resistant, and shock-resistant construction.
Specifications
| Models | S27-250, S27-400 |
|---|---|
| Product Type | LDF specialty fiber fusion splicer |
| Brand | SHINHO |
| Alignment Method | Clad-to-clad alignment |
| Applicable Fiber | SM, MM, DS, NZDS and large diameter specialty fiber applications |
| Cladding Diameter | S27-250: 125-250 um; S27-400: 125-400 um |
| Coating Diameter | 250-800 um |
| Splicing Program | 40 modes |
| Typical Splice Time | Less than 23 seconds |
| Typical Heating Time | 30 seconds |
| Operation Mode | Manual or automatic |
| Heating Mode | Manual or automatic |
| Fiber Magnification | 120X in X or Y view; 60X in X and Y view |
| Display | Dual high sensitivity camera, 5 inch HD color LCD monitor |
| Loss Evaluation | Automatic |
| Tension Test | 1.8-2.2 N |
| Interface | GUI menu interface; USB 2.0 port for software upgrade and record export |
| Power Supply | Adapter input AC 100-240 V, 50/60 Hz; output DC 13.5 V |
| Electrode Life | 125 um fiber: 3,000 arcs; 250 um fiber and larger: 1,000 arcs |
| Operating Condition | Altitude 0-5000 m; humidity 0-95%; temperature -10 C to +50 C; maximum wind 15 m/s |
| Dimensions | 155 x 144 x 155 mm |
| Weight | 1.80 kg, based on the product brochure |
| Battery | Detachable 5200 mAh lithium battery, typical 300 splicing and heating cycles |
Standard Package
| Item | Quantity |
|---|---|
| S-27 LDF specialty fiber fusion splicer | 1 pc |
| Fiber holder | 1 pair |
| Fiber stripper | 1 pc |
| Power cord | 1 pc |
| Power adapter | 1 pc |
| Strap | 1 pc |
| Spare electrodes | 1 pair |
| User manual on USB drive | 1 pc |
| Cooling tray | 1 pc |
| Carrying case | 1 pc |
Downloads
Before Ordering
- Confirm whether your fiber cladding diameter requires the S27-250 or S27-400 model.
- Confirm coating diameter, stripped fiber preparation process, and required fiber holder configuration.
- Confirm heat shrink sleeve size and whether your workflow requires automatic or manual heating control.
- Specifications and included accessories may vary by configuration. Contact us with your fiber details before ordering.
FAQ
What is the difference between S27-250 and S27-400?
S27-250 is intended for 125-250 um cladding applications. S27-400 extends the supported cladding range to 125-400 um.
Can this splicer be used away from a bench power supply?
Yes. The product brochure lists a detachable 5200 mAh lithium battery with typical 300 splicing and heating cycles.
What information should I confirm before ordering?
Please confirm fiber type, cladding diameter, coating diameter, holder requirements, sleeve size, and the working environment for your splicing process.
