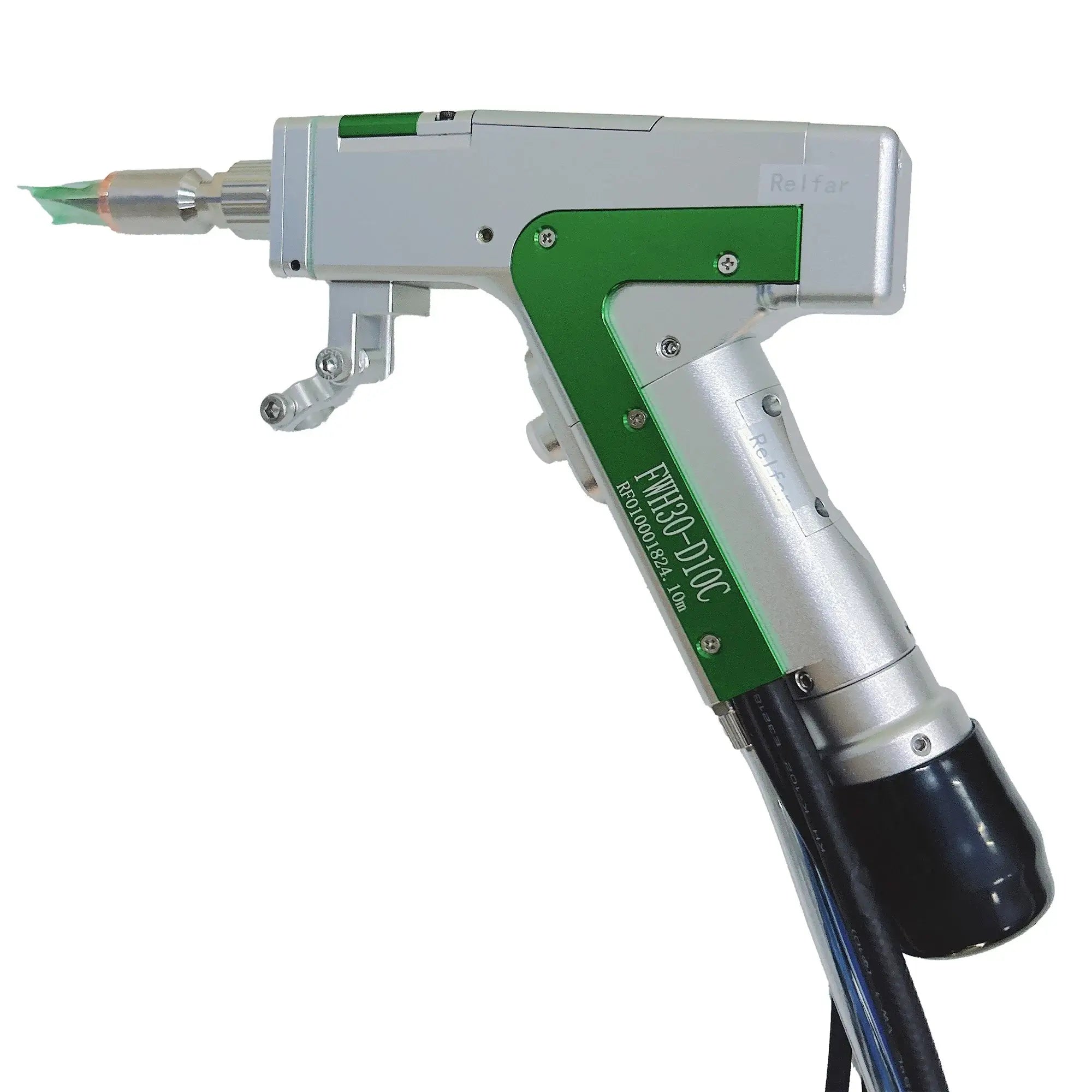

Relfar Intelligent Dual-Axis Handheld Laser Welding Head FWH30-D10C | Single Wire Feed 4 in 1

The FWH30-D10C-V4-T is an intelligent dual-axis handheld laser welding head that integrates laser welding, weld seam cleaning, and intelligent oscillation functions.  This device is suitable for various industrial welding applications, supports switching between dual-axis welding and cleaning modes, and features high precision, high efficiency, and ease of operation.

Product Introduction

• Functional applications include welding, cutting, cleaning, and weld seam cleaning.
• Intelligent protection system, mobile terminal APP and PC monitoring provide real-time feedback on working status.
• High-threshold optical components ensure superior welding results.
• Multiple safety locks provide high safety performance.
• Full-body water-cooling design ensures long-lasting stability.
• Ergonomic design provides comfortable grip and easy handling.
• Application scenarios: Sheet metal industry, hardware industry.

Product Parameter

Model	FWH20-D10C-V4-T
Fiber Interface	QBH
Wavelength Scope	1070±20nm
Rated Power	≤3000W
Collimation Focal Length	40mm
Focus Focal Length	150mm
Adjustable Spot Size Range	0-5mm
Auxiliary Pressure	≥0.1~1Mpa
Effective Clear Aperture	10mm
Weight	1Kg
Swing Type

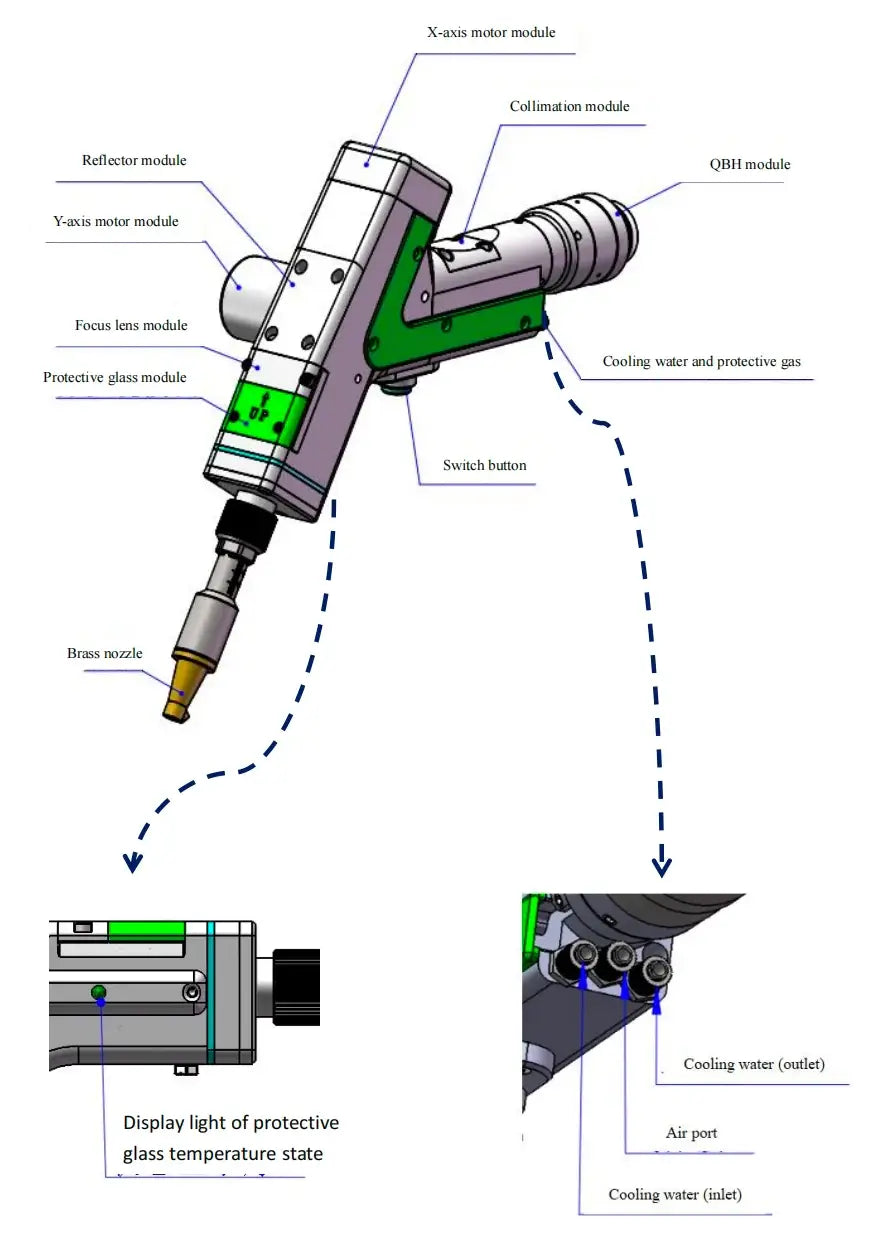

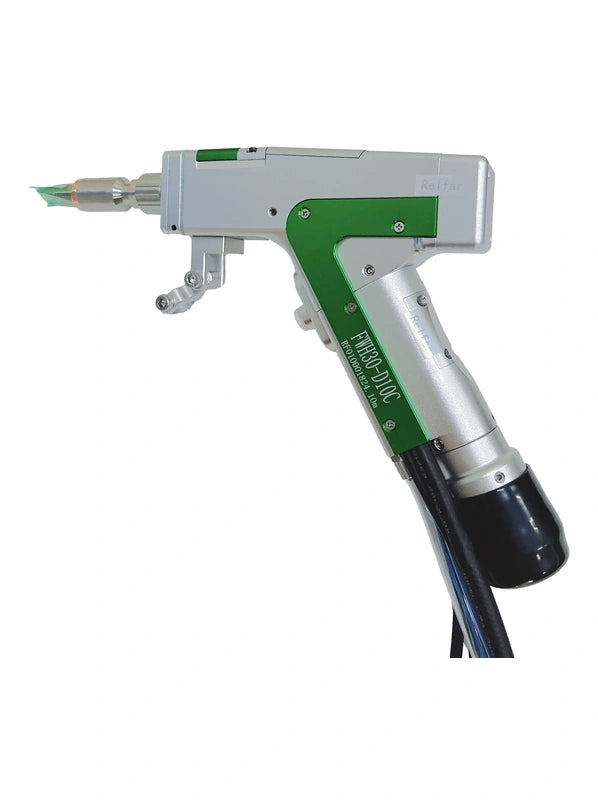

Product Structure

The following video shows a real-world customer application of the FWH30-D10C welding head. You can watch the video below to learn more about how this product performs welding tasks.

Installation & Connection

• Cooling Water Circuit: Use 6mm water pipes, connected in a series configuration ("one inlet, one outlet"), for circulating cooling of internal optical components.
• Protective Gas: Use 6mm gas tubing; input pressure must be less than 1MPa. Argon, nitrogen, or compressed air filtered for oil and water can be used.
• Fiber Optic Input: Align the red dot on the QBH fiber optic connector with the red dot on the welding head's QBH interface, slowly insert, and rotate the outer sleeve clockwise until a "click" is heard.
• Power Interface (CN5): Requires external 24V DC (≥2.5A) and ±15V (≥2A) power supply to power the main board and galvanometer.

Operation & Control:

Touchscreen (HMI) operation:

• Main Page: Set laser power, frequency, duty cycle, oscillation parameters (type, frequency, length), wire feeding speed, and select process library.
• System Parameters: Set pulse/ramp-up/ramp-down time, pre-blow/post-blow time, automatic oscillation, equipment number, and other advanced parameters.
• Wire Feeding Parameters: Set wire feeding/retraction speed and time, wire feeding delay, etc.
• Equipment Parameters: Set laser rated power, alarm enable and limits, galvanometer correction coefficient, etc.

Welding and Mode Switching:

• Welding Mode: Supports continuous and pulsed welding, with options to enable/disable oscillation, safety lock, automatic wire feeding, and laser output.
• Mode Switching: Switch between welding and cleaning modes via [System Parameters] → [Authorization] → [Processing Type]. The system will prompt you to replace the corresponding module (e.g., focusing lens assembly, nozzle).

You can click here to obtain the English version of the product manual.
