Superlasercut 3000W Laser Welding Head SUP36T for Faster Multi-Process Metal Fabrication
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Superlasercut 3000W Laser Welding Head SUP36T for Faster Multi-Process Metal Fabrication

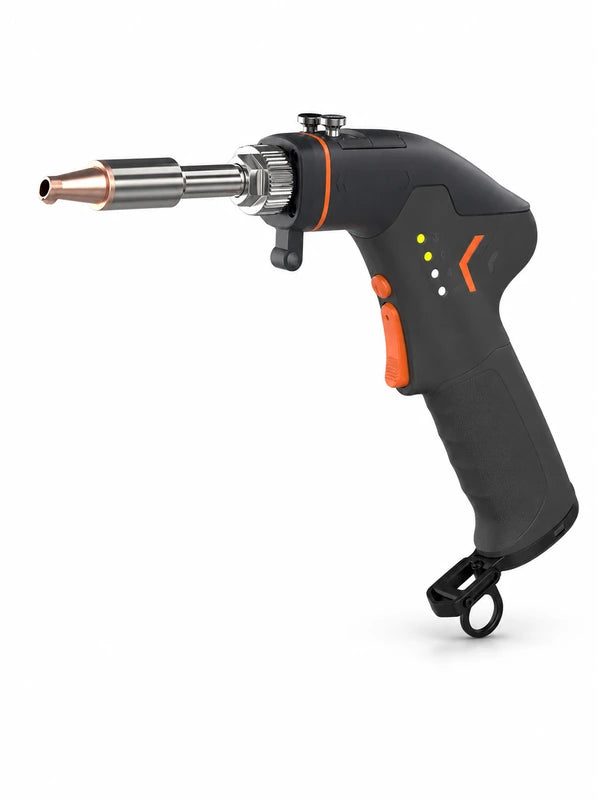

The Superlasercut SUP36T is a compact four-in-one handheld fiber laser processing head for welding, cutting, weld-seam cleaning and handheld surface cleaning. It is designed for continuous-wave fiber laser systems rated up to 3000W at 1080 ± 10nm.
With a lightweight 0.59kg gun body, upgraded ergonomic grip, digital servo drive, independent process-switching button and lens-temperature monitoring, the SUP36T is intended for professional machine builders, integrators and industrial maintenance teams.
Best For
- Handheld laser welding of carbon steel, stainless steel, aluminum, copper and other metals that absorb laser energy near 1080nm.
- Integrated systems that need welding, cutting, weld-seam cleaning and handheld cleaning in one processing head.
- Machine builds and upgrades requiring a lightweight gun, fast process switching and adjustable process parameters.
- Applications that may need an optional single- or dual-wire feeder purchased separately.
Key Features
- Four-in-one processing: Supports laser welding, laser cutting, weld-seam cleaning and handheld surface cleaning.
- Up to 3000W: Compatible with continuous-wave fiber lasers rated at 3000W or less.
- Lightweight gun body: The welding head weighs approximately 0.59kg.
- Upgraded ergonomics: Optimized center of gravity, curved anti-slip grip and balanced front/rear weight distribution.
- Digital servo drive: Version 2.0 digital drive increases oscillation frequency by 30% and provides accurate motor positioning.
- On-gun process switching: Switch among three preset processes and view operating status from the gun indicators.
- Safety and diagnostics: Includes lens-temperature monitoring and system fault diagnosis.
- Process library support: Stores common process groups and supports quick wire-feeder adjustment.
- Mini QBH lock: Helps maintain a stable fiber connection while reducing overall gun weight.
- Shielded multifunction cable: Improves resistance to electrical interference.
Compatibility
- Continuous-wave fiber laser power: ≤3000W.
- Applicable wavelength: 1080 ± 10nm.
- Cooling method: water cooling.
- Recommended shielding gas: argon; manual reference flow is 10-15L/min at 20°C and 0.15MPa.
- Compatible metal examples: carbon steel, stainless steel, aluminum and copper.
- Not intended for wood, stone, plastics, composites, underwater work or use by untrained personnel.
Specifications
| Parameter | Specification |
|---|---|
| Model | SUP36T |
| Product type | Four-in-one handheld laser welding head |
| Functions | Welding / cutting / weld-seam cleaning / handheld cleaning |
| Applicable power | ≤3000W |
| Applicable wavelength | 1080 ± 10nm |
| Power supply | 220V ± 5% AC, 50/60Hz |
| Cooling | Water cooling |
| Operating temperature | -10 to 50°C |
| Operating humidity | ≤70% |
| Head weight | Approx. 0.59kg |
| Optical aperture | 12mm |
| Collimating lens | D16T5F60 |
| Welding focusing lens | D20T4.5F150 standard; D20T4.5F200 optional |
| Cleaning focusing lens | D20T4.5F400 or D20T4.5F800, optional |
| Reflective mirror | 30 × 14 × 2mm |
| Protective lens | D18T2 |
| Vertical focus adjustment | ±10mm |
| Maximum weld width | 8mm |
| Recommended gas flow | 10-15L/min at 20°C, 0.15MPa |
SUP36T Standard Factory Configuration
The manual lists the following standard factory configuration. If the delivered items differ from an illustration, the confirmed sales order takes precedence.
| Included item | Specification | Qty. |
|---|---|---|
| Handheld laser welding head | SUP36T | 1 |
| Laser welding control system | SUP-LWS-E standard; SUP-LWS-D optional | 1 |
| Eight-core system connection cable | 31T, 10m | 1 |
| Display | SUP-DW128 HJT | 1 |
| Switching power supply | 24V | 1 |
| Display cable, vertical side-out | 1m | 1 |
| Protective lens | D18T2 | 5 |
| Dual-wire copper nozzle | AS-20D | 1 |
| Welding copper nozzles | AS-12 / BS-16 / CS-12 / ES-12 / FS-16 / C | 1 each |
| Cutting-nozzle adapter and nozzle | S adapter / 1.5 single-layer M8 nozzle | 1 each |
| Graduated tube | FT80 | 1 |
| Copper-nozzle storage box | - | 1 |
| Large alligator safety clip | - | 1 |
Optional add-ons
Single- and Dual-Wire Feeder Options
Important: SUP-AMF-A and SUP-AMF-D are separately purchased optional accessories. They are not included in the standard SUP36T configuration or base product price unless explicitly added to the order.
Both feeders support continuous and pulse feeding, a 7-inch touchscreen, auxiliary wire-break functions and adjustable 15-600cm/min feeding speed. Select the feeding wheel, feeding tube and wire diameter for the actual material before ordering.

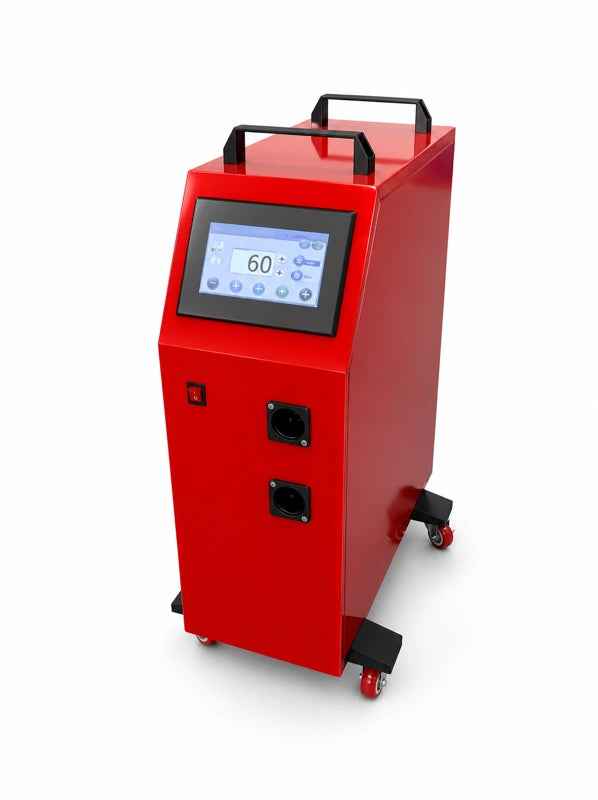

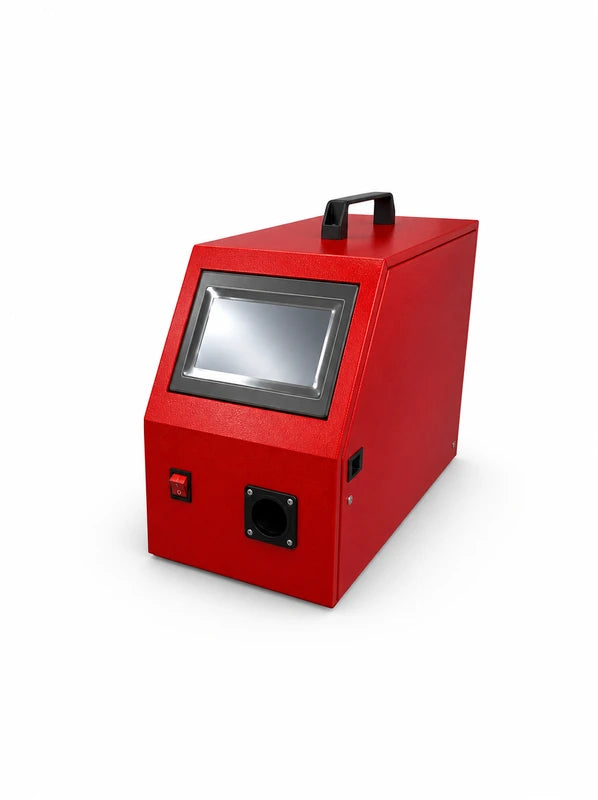

| Comparison | SUP-AMF-A Single-Wire Feeder | SUP-AMF-D Dual-Wire Feeder |
|---|---|---|
| Order status | Optional add-on; purchased separately | Optional add-on; purchased separately |
| Wire channels | Single wire | Two wires |
| Power supply | 220V ± 10% AC, 50/60Hz | 220V ± 10% AC, 50/60Hz |
| Maximum power | 84W | 144W |
| Feeding speed | 15-600cm/min | 15-600cm/min |
| Feeding modes | Continuous / pulse | Continuous / pulse |
| Wire materials | Carbon steel / stainless steel / aluminum | Carbon-steel solid wire / stainless-steel solid wire / aluminum solid wire |
| Display | 7-inch touchscreen, 1024 × 600 | 7-inch touchscreen, 1024 × 600 |
| Net weight | 12.8 ± 0.3kg per manual; packing sheet states approx. 13.2kg | 25.1 ± 0.3kg per manual; packing sheet states approx. 30kg |
| Wire-spool capacity | Up to 20kg | Up to 20kg per spool, two spools |
| Best fit | Standard single-wire filling and lower feeder weight | Higher deposition using synchronized dual-wire filling |
Optional Feeder Packing Lists
| Included item | SUP-AMF-A | SUP-AMF-D |
|---|---|---|
| Feeder unit | SUP-AMF-A × 1; includes V1216 wheels × 2 | SUP-AMF-D × 1; includes V1216 wheels × 4 |
| Bases | - | SUP-AMF-D/T bases × 2 |
| Power cable | 3-core aviation cable, 5m × 1 | 3-core aviation cable, 5m × 1 |
| Signal cable | 6-core aviation cable, 10m × 1 | 6-core aviation cable, 10m × 1 |
| Feeding tube | Fe0816-5 7060 × 1 | Fe0820-5 dual-wire tube × 1; Fe0816-5 7060 × 1 |
| Copper nozzles | - | AS-12D / AS-16D / AS-20D × 2 each |
| Guide tips | 0.8 / 1.0 / 1.2 / 1.6 × 1 each | Dual-wire 1.2 / 1.6 / 2.0 × 1 each; accessory tips 0.8 / 1.0 / 1.2 / 1.6 × 1 each |
| Additional wheels | V0810 × 2 | V2025 × 4; V0810 × 2 |
| Connection parts | 60mm and 100mm straight guide tubes | LJ21AD dual-wire connection block; 60mm and 100mm straight guide tubes |
| Tools | 12/14 and 14/17 open-end wrenches; 2mm and 4mm hex keys | 12/14 and 14/17 open-end wrenches; 2mm and 4mm hex keys |
Before Ordering
- Confirm the laser-source brand, model, rated power, wavelength and fiber interface.
- Confirm the water-cooling circuit, shielding gas, control signals and safety interlocks.
- Choose the focusing lens required for welding or cleaning and confirm the desired process functions.
- If wire feeding is needed, select SUP-AMF-A or SUP-AMF-D separately and confirm wire material, diameter, spool size, feeding wheel and tube.
- Only trained professionals should install, operate and maintain this Class 4 laser-system component.
FAQ
Is the SUP36T a complete laser welding machine?
No. It is a laser processing head and control-system configuration for system integration. The fiber laser source, water chiller, machine enclosure, gas supply and other machine components are not included unless the order explicitly states otherwise.
What are the four supported functions?
The SUP36T supports laser welding, laser cutting, weld-seam cleaning and handheld surface cleaning when correctly configured with the required optics and system parameters.
What laser power does the SUP36T support?
It is designed for continuous-wave fiber laser systems rated up to 3000W at 1080 ± 10nm.
Are the SUP-AMF-A and SUP-AMF-D wire feeders included?
No. Both wire feeders are optional add-ons purchased separately. Select the single-wire SUP-AMF-A or dual-wire SUP-AMF-D only when wire feeding is required.
Which optional wire feeder should I choose?
Choose SUP-AMF-A for standard single-wire filling and a lighter feeder. Choose SUP-AMF-D when the application needs synchronized dual-wire feeding and higher deposition. Send the material, thickness, wire type, diameter and joint details for selection support.
Does the SUP36T require water cooling and shielding gas?
Yes. The head is water cooled. The manual recommends argon shielding gas and references 10-15L/min at 20°C and 0.15MPa. Final settings depend on the material, process and system design.
Which focusing lens is standard?
D20T4.5F150 is standard for welding. D20T4.5F200 is an optional welding lens; D20T4.5F400 and D20T4.5F800 are optional cleaning lenses.
What information is needed for compatibility confirmation?
Provide the laser-source model and power, fiber interface, cooling configuration, material and thickness, required function, shielding gas, control-system preference and any wire-feeder requirements.
