XSF-13 Series 20-80kVA Stabilized Frequency Converter Power Supply
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Overview
XSF13 Stabilized Frequency Converter Power Supply | For Single-Phase Sites Running Three-Phase Equipment
The XSF13 series is designed for customers who only have single-phase power on site but need to run three-phase industrial equipment, such as a 3000W laser cutting machine or a 15kW air compressor. It converts 220V single-phase input into stable 380V three-phase isolated output, helping users install higher-power equipment without immediately upgrading the entire site power supply.
This listing covers XSF-13020, XSF-13030, XSF-13050, and XSF-13080 models, with rated capacities from 20kVA to 80kVA. The system uses SPWM sine-wave pulse-width modulation, high-frequency IGBT static inversion, transformer-isolated output, and dual-loop control for stable voltage, stable frequency, and low waveform distortion.

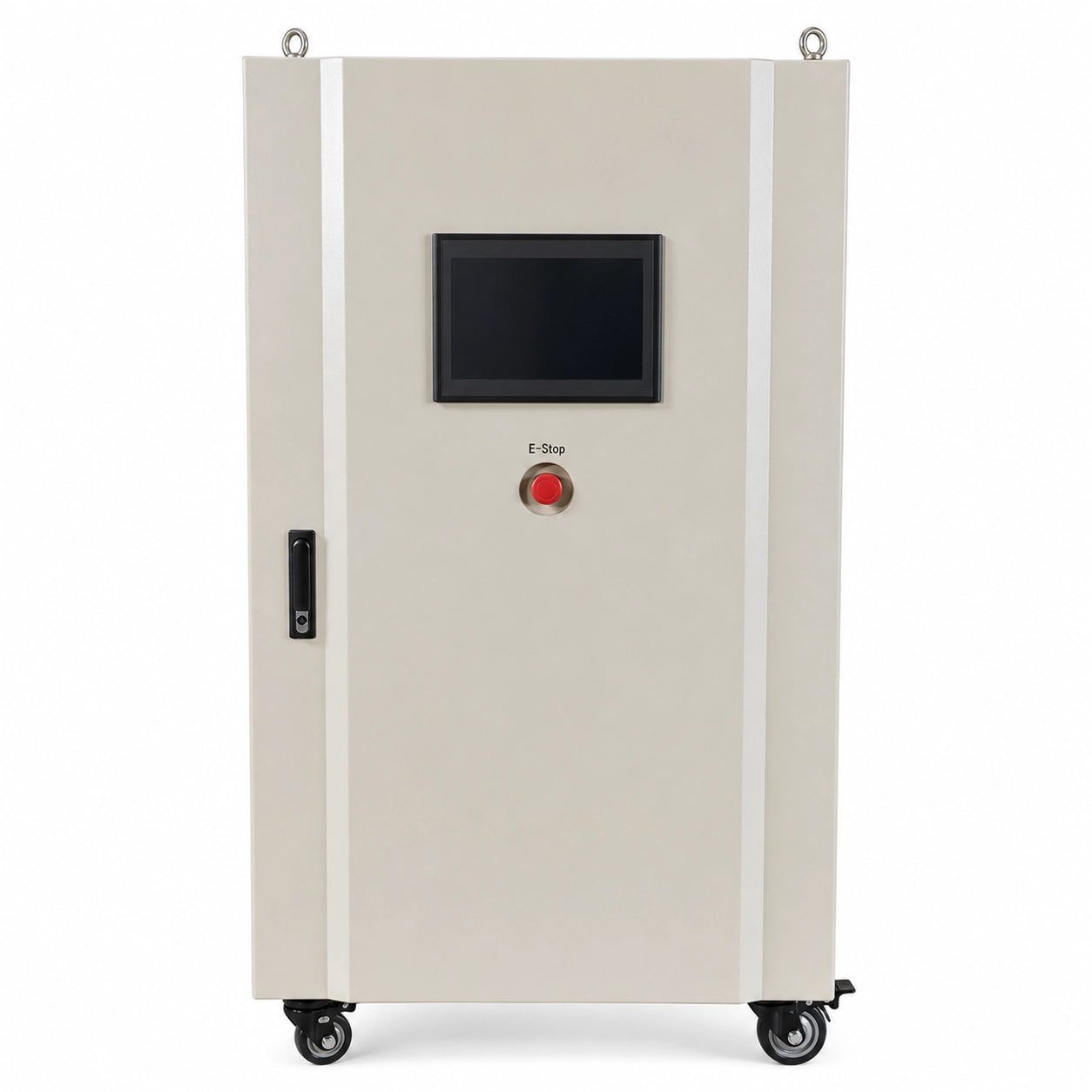

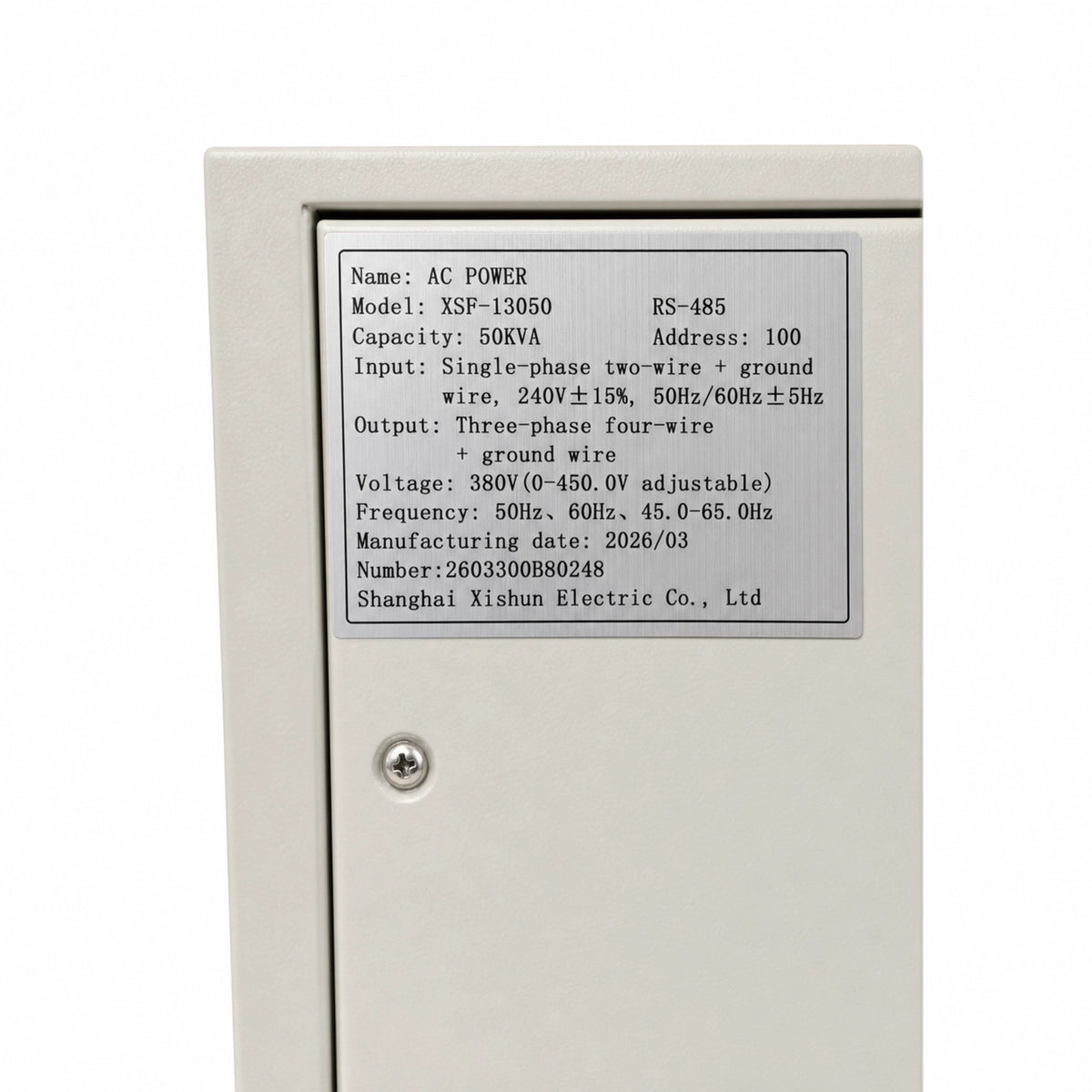

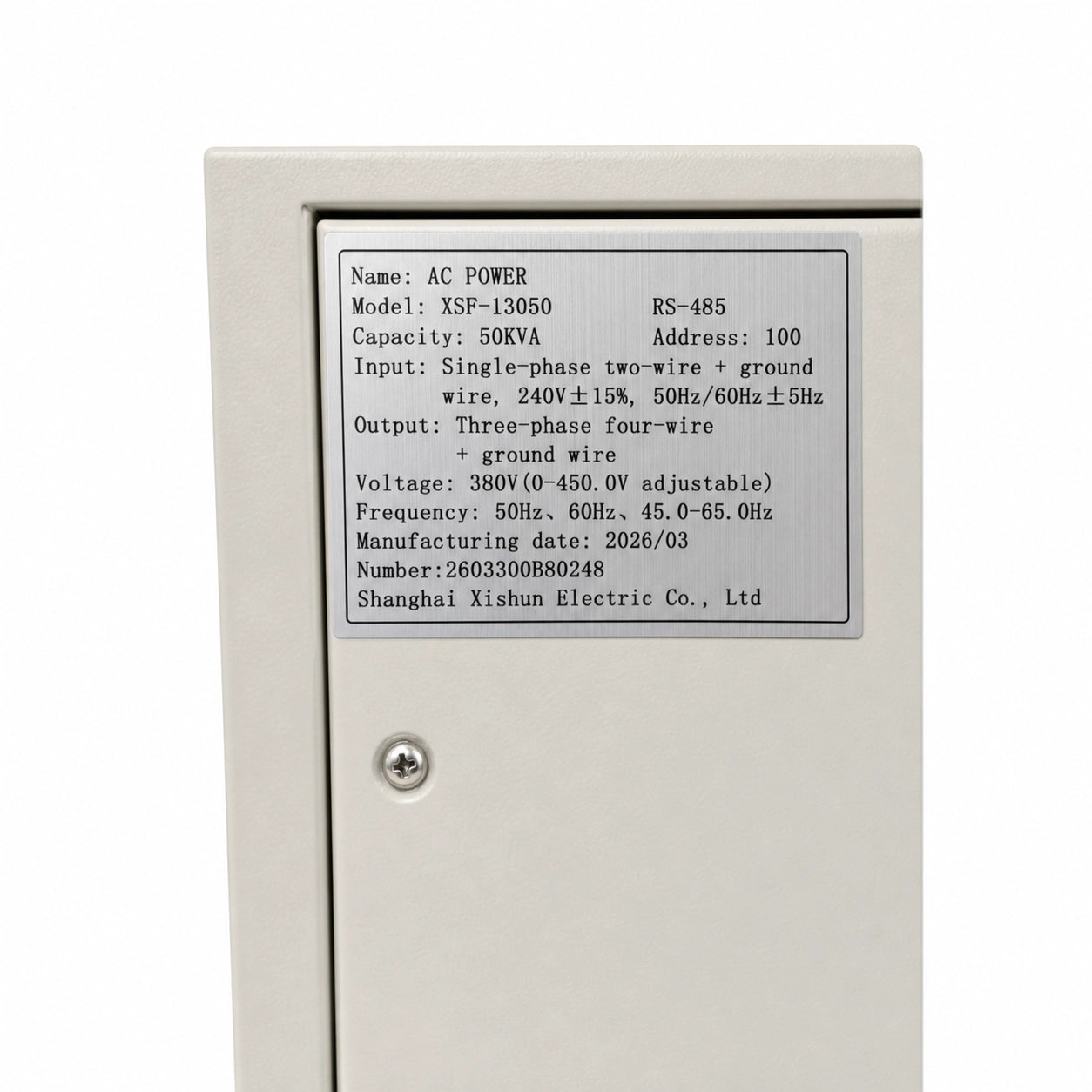

Please note that this image is for a single-phase 50KVA product; other models can be referenced in this image.
Best For
- Customers who only have 220V single-phase power but want to run a 3000W fiber laser cutting machine.
- Workshops that need to power a 15kW air compressor from a single-phase power source.
- Small factories, garages, farms, or remote workshops where three-phase utility power is unavailable or expensive to install.
- Industrial equipment that requires stable 380V three-phase output from 220V single-phase input.
- Testing, inspection, aging tests, and production environments requiring adjustable output frequency.
Key Features
- Single-phase to three-phase power solution: Converts 220V single-phase input into stable 380V three-phase isolated output.
- Suitable for laser cutting setups: Helps customers run 3000W laser cutting machines in workshops without existing three-phase power.
- Air compressor support: Suitable for properly sized 15kW air compressor applications after load confirmation.
- Input and output isolation technology improves power safety and reliability.
- SPWM sine-wave modulation provides fast response and stable output waveform.
- High-frequency IGBT static inverter design helps reduce size, weight, noise, and power loss.
- Instantaneous-value and RMS dual-loop control improves control accuracy and waveform quality.
- Three-phase independent H-bridge topology supports stronger three-phase unbalanced-load capability.
- Output voltage is adjustable online, and output frequency can be set for different test conditions.
- Built-in short-circuit, overcurrent, overload, and power-device overtemperature protection.
- 10-inch color LCD touch screen for voltage, frequency, current, and power display.
- RS-485 and RJ-45 communication ports with Modbus protocol.
Recommended Applications
| Customer Situation | Typical Equipment | Why XSF13 Helps |
|---|---|---|
| Only single-phase power is available in the workshop | 3000W fiber laser cutting machine | Provides stable 380V three-phase output from 220V single-phase input after capacity confirmation. |
| No three-phase utility power at the site | 15kW air compressor | Allows three-phase compressor operation when the selected model capacity matches the compressor load and starting requirements. |
| Equipment testing requires different frequencies | Industrial machines, motors, test benches | Supports 50Hz, 60Hz, and 45-65Hz adjustable output frequency. |
| Mixed industrial loads need stable isolated power | Resistive, inductive, and rectifier-type loads | Transformer-isolated output and SPWM control improve stability and waveform quality. |
Specifications
Model Options
| Model | Rated Capacity | Output Current | Typical Use | Dimensions W x H x D | Weight |
|---|---|---|---|---|---|
| XSF-13020 | 20kVA | 30.4A | Entry-level single-phase to three-phase conversion for smaller industrial loads | 520 x 1150 x 935 mm | Approx. 300 kg |
| XSF-13030 | 30kVA | 45.4A | Common choice for 3000W laser cutting machine projects after full load confirmation | 520 x 1150 x 935 mm | Approx. 350 kg |
| XSF-13050 | 50kVA | 76A | Higher-margin option for larger auxiliary loads or more demanding startup conditions | 680 x 1300 x 990 mm | Approx. 400 kg |
| XSF-13080 | 80kVA | 121.5A | Large-capacity option for heavy industrial load combinations after engineering review | 720 x 1500 x 1100 mm | Approx. 700 kg |
Electrical Specifications

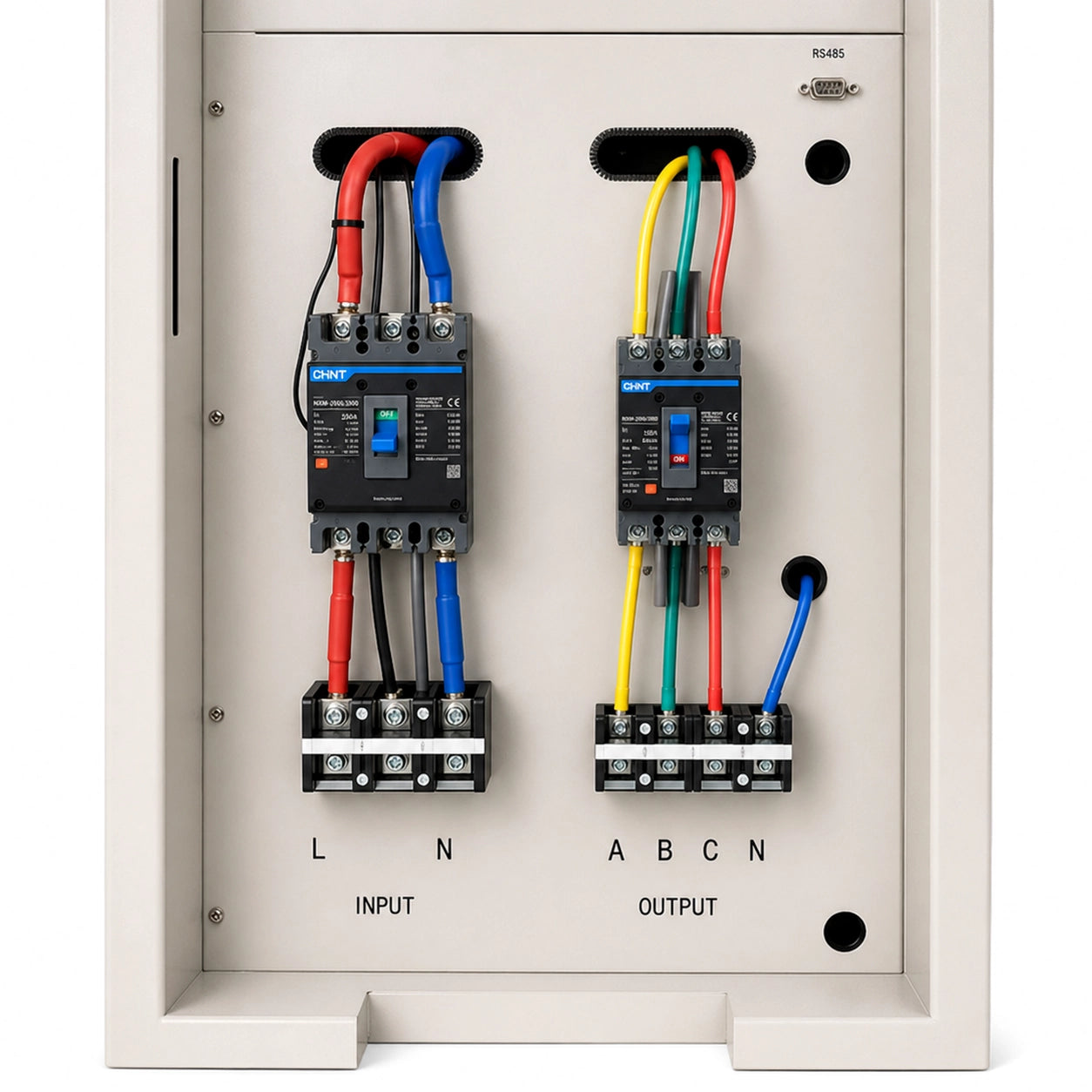

| Input Phase | Single-phase two-wire + ground, L + N + PE |
|---|---|
| Input Voltage | 220V ±10%, custom voltage available |
| Input Frequency | 50Hz / 60Hz ±5Hz |
| Input Surge | Soft-start input, no inrush current impact |
| Output Phase | Three-phase four-wire + ground, 3P + N + PE |
| Output Isolation | Transformer-isolated output |
| Rated Output Voltage | 380.0V |
| Voltage Adjustment Step | 0.1V |
| Voltage Stability | ≤ ±0.5% FS |
| Rated Frequency | 50.0Hz, 60Hz, 45-65Hz |
| Frequency Adjustment Step | 0.1Hz |
| Frequency Stability | ≤ ±0.01% |
| Output Waveform | Sine wave |
| Total Harmonic Distortion | ≤2% with linear load, FS |
| Efficiency | ≥90% |
| Display | 10-inch color LCD touch screen |
| Communication | RS-485 and RJ-45 Ethernet communication, Modbus protocol |
| Protection Functions | Short-circuit protection, overcurrent protection, overload protection, power-device overtemperature protection at 85°C ±5°C |
| Operating Environment | -10°C to 45°C, 10%-90% RH at 25°C, no condensation, altitude ≤2000m |
| Enclosure Protection | IP20 |
Downloads
FAQ
What capacities are included in this listing?
This listing covers XSF-13020, XSF-13030, XSF-13050, and XSF-13080, with rated capacities of 20kVA, 30kVA, 50kVA, and 80kVA.
What is the standard input and output?
The standard specification uses 220V ±10% single-phase input and 380V three-phase four-wire isolated output.
Can the input or output voltage be customized?
Yes. The specification states that various voltages can be customized. Please confirm the required voltage before ordering.
Does it support frequency adjustment?
Yes. The rated output frequency supports 50.0Hz, 60Hz, and 45-65Hz adjustable range, with 0.1Hz adjustment step.
What communication interfaces are available?
The unit supports RS-485 and RJ-45 Ethernet communication with Modbus protocol.
