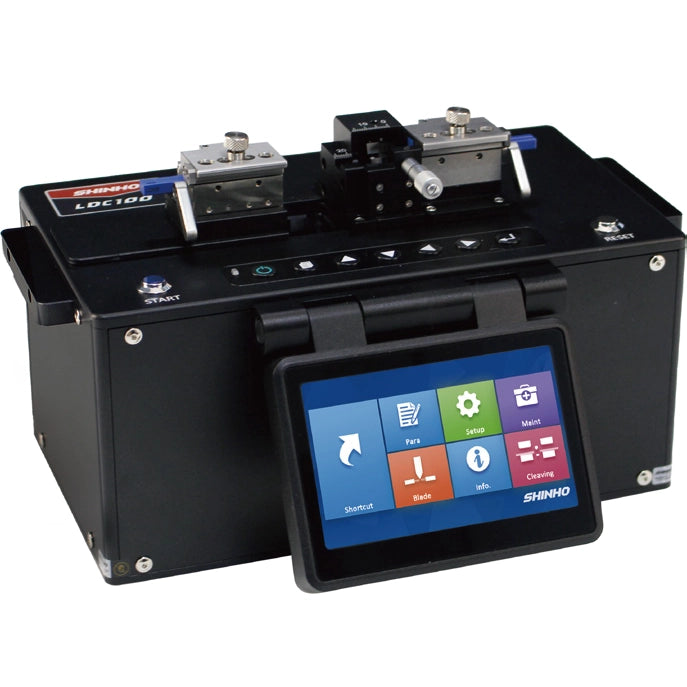

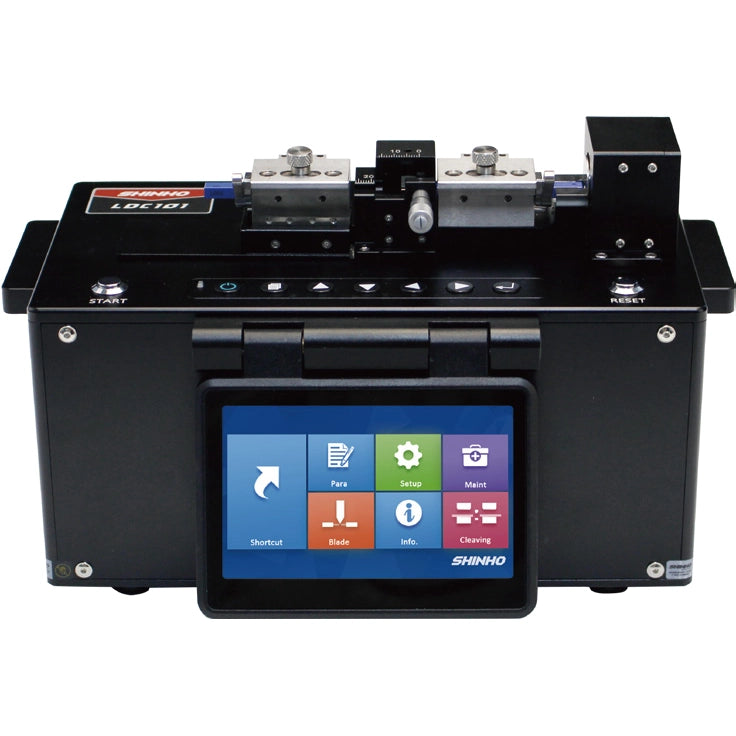

SHINHO LDC100 / LDC101 Large Diameter Fiber Cleaver for Specialty Fiber Preparation
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Product overview
Overview
SHINHO LDC100 / LDC101 Large Diameter Fiber Cleaver | For 80-1250 um Specialty Fibers
The SHINHO LDC100 / LDC101 Large Diameter Fiber Cleaver is built for precision cleaving of large diameter, passive, active, and hollow-core optical fibers. It uses vacuum-assisted fiber placement, high-precision ceramic inserts, and a long-life diamond blade to support stable, repeatable cleaving across a wide fiber range.

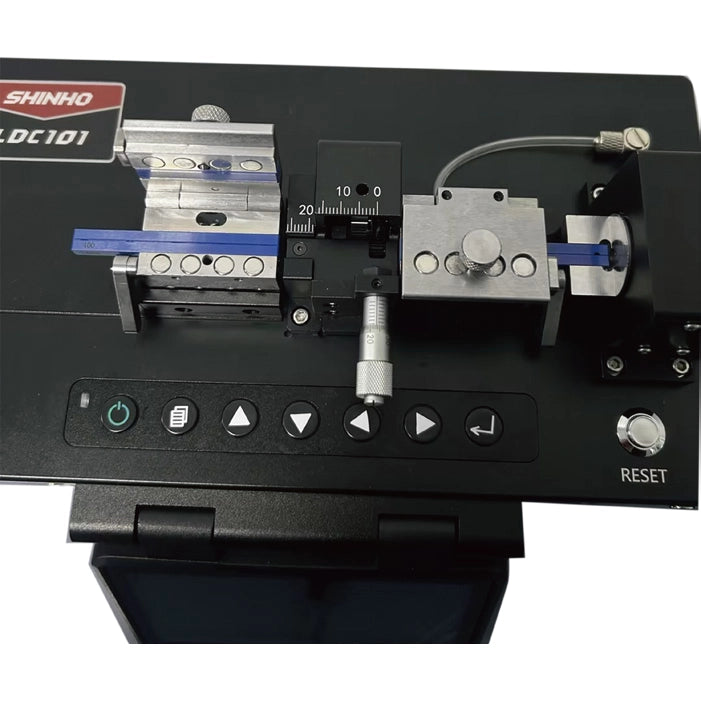

The LDC101 model supports 0-15 degree angled cleaving for applications requiring controlled end-face geometry. Choose LDC100 for straight cleaving workflows and LDC101 when angled cleaving is required.
Best For
- Large diameter fiber cleaving.
- Fiber laser repair and fiber preparation.
- Passive fiber, active fiber, and hollow-core fiber processing.
- Specialty fiber labs and production lines.
- Applications requiring stable end-face quality.
Key Features
- Supports 80-1250 um cladding diameter fibers.
- Supports 160-3000 um coating diameter fibers.
- Vacuum pump assisted clamping for accurate fiber placement.
- Typical 0.5 degree cleaving angle.
- LDC101 supports 0-15 degree angled cleaving.
- Tension and blade scoring cleaving method.
- Diamond blade with 10 cutting positions and up to 2,000 cuts per position for 125 um cladding fiber.
- 40 cleaving modes and 4,000 cleaving records.
- 5-inch HD color LCD touch screen.
- Touch and button dual-mode operation.
- Built-in 3400 mAh lithium battery with up to 8 hours continuous working time.
Specifications
| Item | LDC100 | LDC101 |
|---|---|---|
| Number of Fibers | Single fiber | |
| Applicable Cladding Diameter | 80-1250 um | |
| Coating Diameter | 160-3000 um | |
| Fiber Holder | Vacuum pump assisted placement | |
| Cleaving Length | 5-40 mm | |
| Cleave End-Face Angle | Typical 0.5 degree | |
| Cleaving Angle | - | 0-15 degrees |
| Cleaving Method | Applying tension and blade scoring | |
| Blade Lifetime | Diamond blade, 10 cutting positions, 2,000 cuts per position for 125 um fiber | |
| Cleaving Modes | 40 groups | |
| Cleaving Result Storage | Stores 4,000 cleaving records | |
| Display | 5.0-inch display, touch screen | |
| Power Supply | External adapter, input: AC100-240V, 50/60Hz; output: DC13.5V | |
| Battery Capacity | 3400 mAh, fully charged in about 2 hours, continuous working time up to 8 hours | |
| Operating Environment | 0 C to +40 C | |
| Machine Dimensions / Weight | 270 mm (L) x 155 mm (W) x 165 mm (H) / 4.37 kg | 285 mm (L) x 155 mm (W) x 176 mm (H) / 4.66 kg |

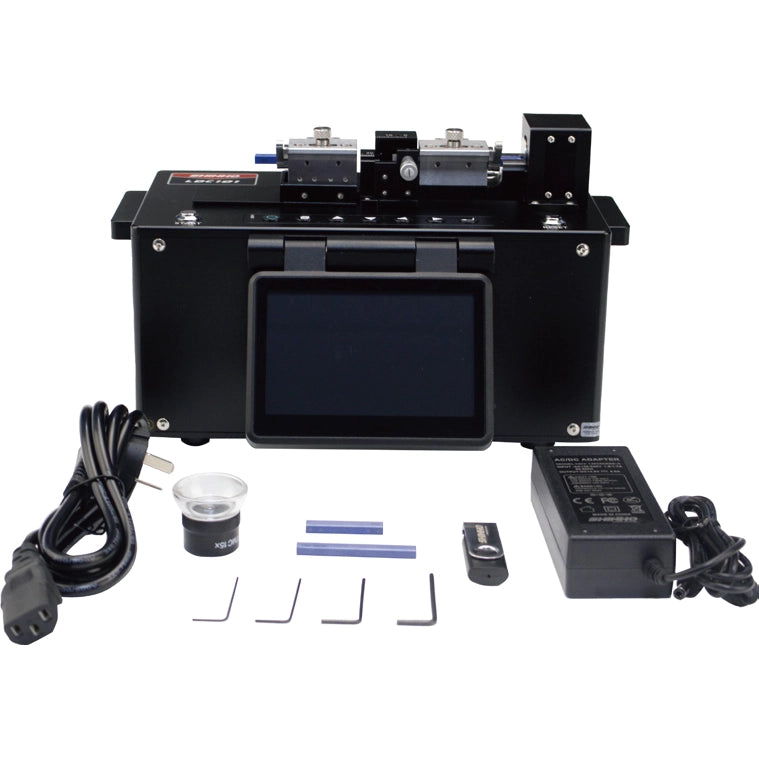

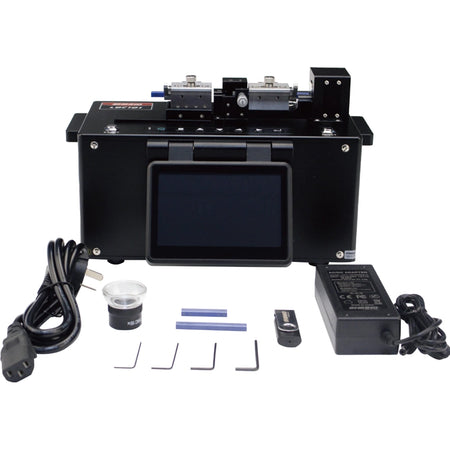

Standard Package
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| LDC100/LDC101 Large Diameter Fiber Cleaver | 1 pc | Insert LU00 (0/200) | 1 pc |
| Microscope | 1 pc | Insert LU01 (250/400) | 1 pc |
| Power Adapter | 1 pc | Insert LU02 (500/750) | 1 pc |
| Power Cord | 1 pc | Insert LD03 (250) | 1 pc |
| User Manual (USB Drive) | 1 pc | Insert LD04 (400) | 1 pc |
| Tools (01/02/03/04) | 1 set | Insert LD05 (500) | 1 pc |
FAQ
What is the difference between LDC100 and LDC101?
LDC100 is for standard cleaving. LDC101 adds 0-15 degree angled cleaving capability.
What fiber diameter range is supported?
The cleaver supports 80-1250 um cladding diameter and 160-3000 um coating diameter fibers.
Are inserts included?
The standard package includes selected inserts. Please confirm your exact fiber diameter so the correct insert set can be supplied.
